RFM69 hat library Part12D

Enums and Masks – Packet lengths, addressing & CRCs

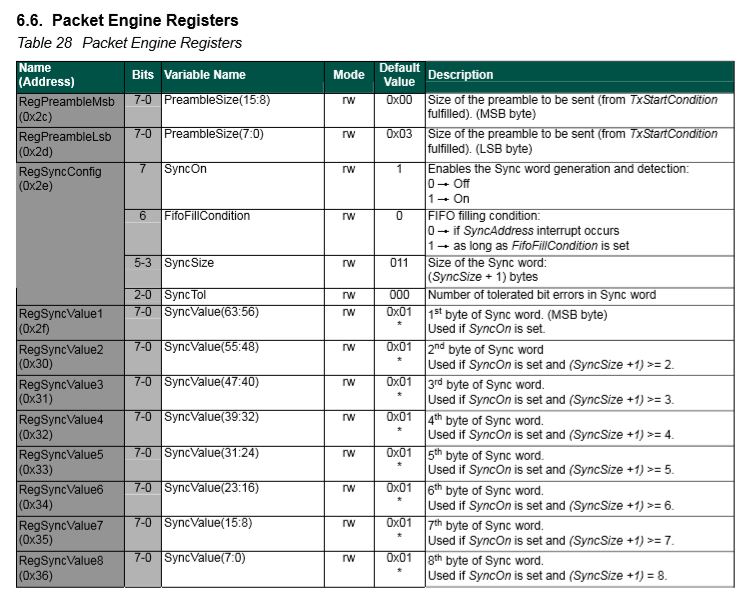

The RFM69CW/RFM69HCW module (based on the Semtech SX1231/SX1231H) has configurable (RegSyncConfig) synchronisation sequences (the length, tolerance for errors and the individual byte values).

By default synchronisation is enabled and a default sequence of bytes is used, in my library synchronisation is NOT enabled until a SyncValue is provided.

I added some additional constants and enumerations for the other settings configured in RegSyncConfig.

// RegSyncConfig
// This is private because default ignored and flag set based on SyncValues parameter being specified rather than default
private enum RegSyncConfigSyncOn
{
	Off = 0b00000000,
	On = 0b10000000
}

public enum RegSyncConfigFifoFileCondition
{
	SyncAddressInterrupt = 0b00000000,
	FifoFillCondition =    0b01000000
}

private const RegSyncConfigFifoFileCondition SyncFifoFileConditionDefault = RegSyncConfigFifoFileCondition.SyncAddressInterrupt;
readonly byte[] SyncValuesDefault = {0x01, 0x01, 0x01, 0x01};
public const byte SyncValuesSizeDefault = 4;
public const byte SyncValuesSizeMinimum = 1;
public const byte SyncValuesSizeMaximum = 8;

private const byte SyncToleranceDefault = 0;
public const byte SyncToleranceMinimum = 0;
public const byte SyncToleranceMaximum = 7;

I also added some guard conditions to the initialise method which validate the syncFifoFileCondition, syncTolerance and syncValues length.

public void Initialise(RegOpModeMode modeAfterInitialise,
	BitRate bitRate = BitRateDefault,
	ushort frequencyDeviation = frequencyDeviationDefault,
	double frequency = FrequencyDefault,
	ListenModeIdleResolution listenModeIdleResolution = ListenModeIdleResolutionDefault, ListenModeRXTime listenModeRXTime = ListenModeRXTimeDefault, ListenModeCrieria listenModeCrieria = ListenModeCrieriaDefault, ListenModeEnd listenModeEnd = ListenModeEndDefault,
	byte listenCoefficientIdle = ListenCoefficientIdleDefault,
	byte listenCoefficientReceive = ListenCoefficientReceiveDefault,
	bool pa0On = pa0OnDefault, bool pa1On = pa1OnDefaut, bool pa2On = pa2OnDefault, byte outputpower = OutputpowerDefault,
	PaRamp paRamp = PaRampDefault,
	bool ocpOn = OcpOnDefault, byte ocpTrim = OcpTrimDefault,
	LnaZin lnaZin = LnaZinDefault, LnaCurrentGain lnaCurrentGain = LnaCurrentGainDefault, LnaGainSelect lnaGainSelect = LnaGainSelectDefault,
	byte dccFrequency = DccFrequencyDefault, RxBwMant rxBwMant = RxBwMantDefault, byte RxBwExp = RxBwExpDefault,
	byte dccFreqAfc = DccFreqAfcDefault, byte rxBwMantAfc = RxBwMantAfcDefault, byte bxBwExpAfc = RxBwExpAfcDefault,
	ushort preambleSize = PreambleSizeDefault,
	RegSyncConfigFifoFileCondition? syncFifoFileCondition = null, byte? syncTolerance = null, byte[] syncValues = null,
	RegPacketConfig1PacketFormat packetFormat = RegPacketConfig1PacketFormat.FixedLength,
	RegPacketConfig1DcFree packetDcFree = RegPacketConfig1DcFreeDefault,
	bool packetCrc = PacketCrcOnDefault,
	bool packetCrcAutoClearOff = PacketCrcAutoClearOffDefault,
	RegPacketConfig1CrcAddressFiltering packetAddressFiltering = PacketAddressFilteringDefault,
	byte payloadLength = PayloadLengthDefault,
	byte addressNode = NodeAddressDefault, byte addressbroadcast = BroadcastAddressDefault,
	TxStartCondition txStartCondition = TxStartConditionDefault, byte fifoThreshold = FifoThresholdDefault,
	byte interPacketRxDelay = InterPacketRxDelayDefault, bool restartRx = RestartRxDefault, bool autoRestartRx = AutoRestartRxDefault,
	byte[] aesKey = null
	)
{
	RegOpModeModeCurrent = modeAfterInitialise;
	PacketFormat = packetFormat;

	#region RegSyncConfig + RegSyncValue1 to RegSyncValue8 guard conditions
	if (syncValues != null)
	{
		// If sync enabled (i.e. SyncValues array provided) check that SyncValues not to short/long and SyncTolerance not to small/big
		if ((syncValues.Length < SyncValuesSizeMinimum) || (syncValues.Length > SyncValuesSizeMaximum))
		{
			throw new ArgumentException($"The syncValues array length must be between {SyncValuesSizeMinimum} and {SyncValuesSizeMaximum} bytes", "syncValues");
		}
		if (syncTolerance.HasValue)
		{
			if ((syncTolerance < SyncToleranceMinimum) || (syncTolerance > SyncToleranceMaximum))
			{
				throw new ArgumentException($"The syncTolerance size must be between {SyncToleranceMinimum} and {SyncToleranceMaximum}", "syncTolerance");
			}
		}
	}
	else
	{
		// If sync not enabled (i.e. SyncValues array null) check that no syncFifoFileCondition or syncTolerance configuration specified
		if (syncFifoFileCondition.HasValue)
		{
			throw new ArgumentException($"If Sync not enabled syncFifoFileCondition is not supported", "syncFifoFileCondition");
		}

		if (syncTolerance.HasValue)
		{
			throw new ArgumentException($"If Sync not enabled SyncTolerance is not supported", "syncTolerance");
		}
	}
	#endregion

I also ensure that the syncFifoFileCondition and syncTolerance are not specified if synchronisation is not enabled.

The library also supports the built in RFRM69 node and broadcast addressing which is enabled when the AddressNode and/or AddressBroadcast parameters of the Initialise method are set.

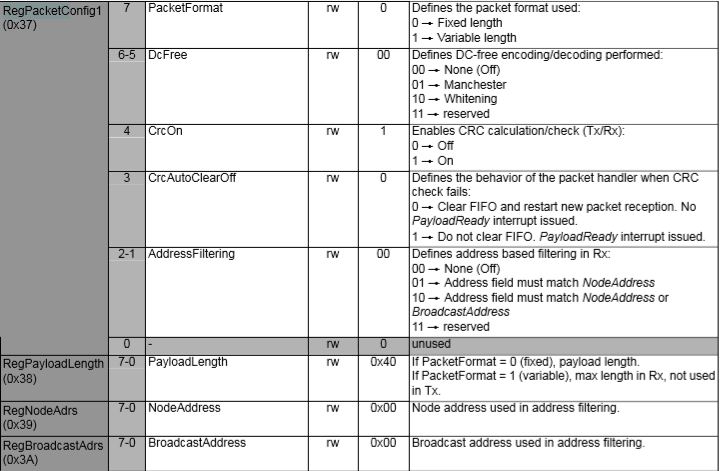

RegPacketConfig1 address filtering options

My first attempt at getting encryption and addressing working together failed badly, the Windows 10 IoT Core device didn’t receive any addressed messages when encryption was enabled. So, I went back and re-read the datasheet again and noticed

“If the address filtering is expected then AddressFiltering must be enabled on the transmitter side as well to prevent address byte to be encrypted”(Sic).

The Arduino client code had to be modified so I could set the node + broadcast address registers and AddressFiltering bit flag in RegPacketConfig1

My RMRFM69.h modifications

enum moduleType {RFM65, RFM65C, RFM69, RFM69C, RFM69H, RFM69HC};

 #define ADDRESS_NODE_DEFAULT 0x0
 #define ADDRESS_BROADCAST_DEFAULT 0x0
 #define ADDRESSING_ENABLED_NODE 0x2
 #define ADDRESSING_ENABLED_NODE_AND_BROADCAST 0x4

	class RMRFM69
	{
	 public:
		 RMRFM69(SPIClass &spiPort, byte csPin, byte dio0Pin, byte rstPin);
		 modulationType Modulation; //OOK/FSK/GFSK
		 moduleType COB;				//Chip on board
		 uint32_t Frequency;			//unit: KHz
		 uint32_t SymbolTime;			//unit: ns
		 uint32_t Devation;				//unit: KHz
		 word BandWidth;				//unit: KHz
		 byte OutputPower;				//unit: dBm   range: 0-31 [-18dBm~+13dBm] for RFM69/RFM69C
										//            range: 0-31 [-11dBm~+20dBm] for RFM69H/RFM69HC
		 word PreambleLength;			//unit: byte

		 bool CrcDisable; //fasle: CRC enable�� & use CCITT 16bit
						  //true : CRC disable
		 bool CrcMode;	//false: CCITT

		 bool FixedPktLength; //false: for contain packet length in Tx message, the same mean with variable lenth
							  //true : for doesn't include packet length in Tx message, the same mean with fixed length
		 bool AesOn;		  //false:
							  //true:
		 bool AfcOn;		  //false:
							  //true:
		 byte SyncLength;	 //unit: none, range: 1-8[Byte], value '0' is not allowed!
		 byte SyncWord[8];
		 byte PayloadLength; //PayloadLength is need to be set a value, when FixedPktLength is true.
		 byte AesKey[16];	//AES Key block, note [0]->[15] == MSB->LSB
		 byte AddressNode = ADDRESS_NODE_DEFAULT;
		 byte AddressBroadcast = ADDRESS_BROADCAST_DEFAULT;

		 void vInitialize(void);
		 void vConfig(void);
		 void vGoRx(void);
		 void vGoStandby(void);
		 void vGoSleep(void);
		 bool bSendMessage(byte msg[], byte length);
		 bool bSendMessage(byte Address, byte msg[], byte length);
		 byte bGetMessage(byte msg[]);
		 void vRF69SetAesKey(void);
		 void vTrigAfc(void);

		 void vDirectRx(void);			  //go continuous rx mode, with init. inside
		 void vChangeFreq(uint32_t freq); //change frequency
		 byte bReadRssi(void);			  //read rssi value
		 void dumpRegisters(Stream& out);


My RMRFM69.cpp modifications in vConfig

 if(!CrcDisable)
 	{
 	i += CrcOn;
	if(CrcMode)
		i += CrcCalc_IBM;
	else
		i += CrcCalc_CCITT;
	}

if((AddressNode!=ADDRESS_NODE_DEFAULT) || (AddressBroadcast==ADDRESS_BROADCAST_DEFAULT))
   {
      i += ADDRESSING_ENABLED_NODE;
   }

if((AddressNode!=ADDRESS_NODE_DEFAULT) || (AddressBroadcast!=ADDRESS_BROADCAST_DEFAULT))
  {
     i += ADDRESSING_ENABLED_NODE_AND_BROADCAST;
  }

 vSpiWrite(((word)RegPacketConfig1<<8)+i);

I also validate the lengths of the messages to be sent taking into account whether encryption is enabled\disabled.

RFM69 hat library receive lockup debugging

Every so often my Enums & Masks test harness locked up and stopped receiving messages from my test rig. This seemed to happen more often when the send functionality of my library was not being used.

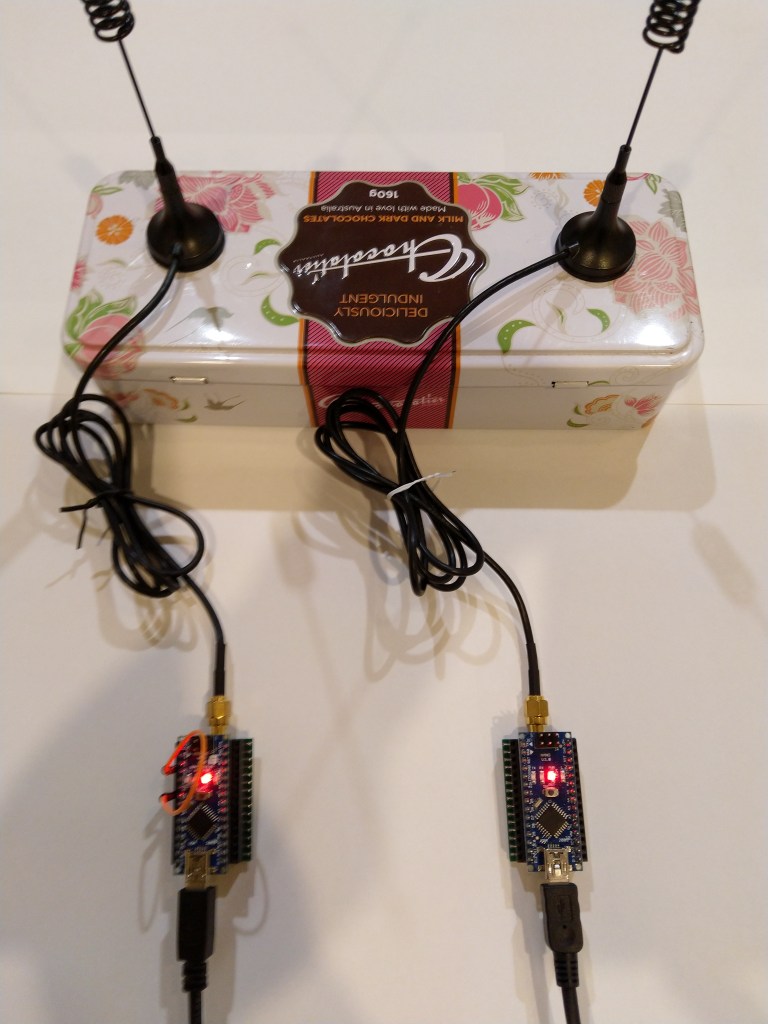

easysensors RFM69HCW test rig

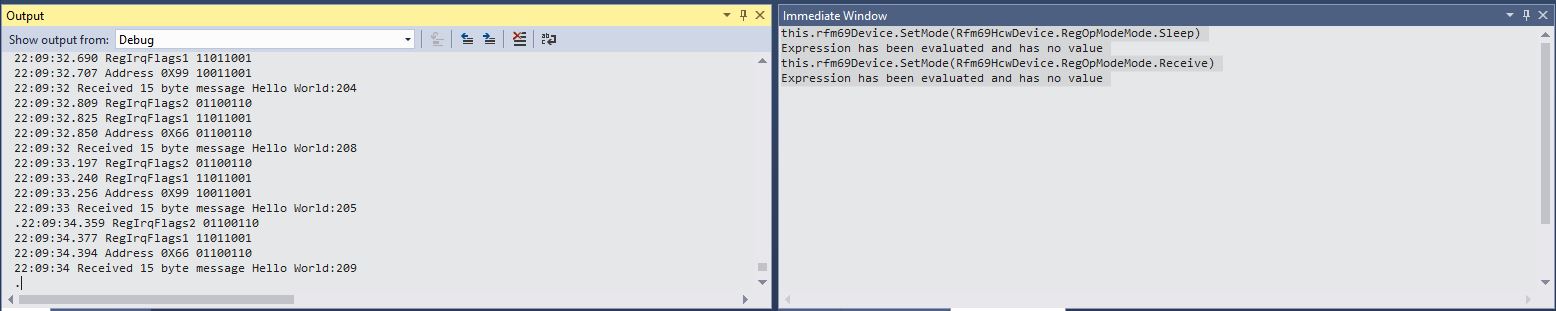

After 5 to 30 minutes (a couple of times it was 5 to 8 hours overnight) the application stopped receiving messages and wouldn’t resume until the application (device reset) was restarted or the RegOpmode-Mode was quickly changed to sleep then back to receive.

private void InterruptGpioPin2_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
    Debug.WriteLine("InterruptGpioPin2_ValueChanged");

    rfm69Device.SetMode(Rfm69HcwDevice.RegOpModeMode.Sleep);
    rfm69Device.SetMode(Rfm69HcwDevice.RegOpModeMode.Receive);
}

After re-reading the Semtech SX1231 datasheet one of the other possible solutions involved writing to the RegPacketConfig2-RestartRX bit

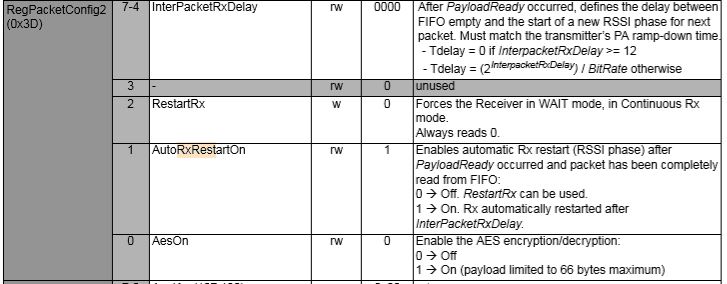

RegPacketConfig2 configuration options

Of the different approaches I found this code was the most reliable way of restarting reception of packets.

private void InterruptGpioPin3_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
	Debug.WriteLine("InterruptGpioPin3_ValueChanged");

	byte regpacketConfig2 = rfm69Device.RegisterManager.ReadByte(0x3d);
	regpacketConfig2 |= (byte)0x04;
	rfm69Device.RegisterManager.WriteByte(0x3d, regpacketConfig2);
}

I had noticed this code in the Low Power Lab and wondered what it was for. The HopeRF library didn’t appear to have code like this to restart reception which was interesting.

void RFM69::send(uint16_t toAddress, const void* buffer, uint8_t bufferSize, bool requestACK)
{
  writeReg(REG_PACKETCONFIG2, (readReg(REG_PACKETCONFIG2) & 0xFB) | RF_PACKET2_RXRESTART); // avoid RX deadlocks
  uint32_t now = millis();
  while (!canSend() && millis() - now < RF69_CSMA_LIMIT_MS) receiveDone();
  sendFrame(toAddress, buffer, bufferSize, requestACK, false);
}

// should be called immediately after reception in case sender wants ACK
void RFM69::sendACK(const void* buffer, uint8_t bufferSize) {
  ACK_REQUESTED = 0;   // TWS added to make sure we don't end up in a timing race and infinite loop sending Acks
  uint16_t sender = SENDERID;
  int16_t _RSSI = RSSI; // save payload received RSSI value
  writeReg(REG_PACKETCONFIG2, (readReg(REG_PACKETCONFIG2) & 0xFB) | RF_PACKET2_RXRESTART); // avoid RX deadlocks
  uint32_t now = millis();
  while (!canSend() && millis() - now < RF69_CSMA_LIMIT_MS) receiveDone();
  SENDERID = sender;    // TWS: Restore SenderID after it gets wiped out by receiveDone()
  sendFrame(sender, buffer, bufferSize, false, true);
  RSSI = _RSSI; // restore payload RSSI
}

void RFM69::receiveBegin() {
  DATALEN = 0;
  SENDERID = 0;
  TARGETID = 0;
  PAYLOADLEN = 0;
  ACK_REQUESTED = 0;
  ACK_RECEIVED = 0;
#if defined(RF69_LISTENMODE_ENABLE)
  RF69_LISTEN_BURST_REMAINING_MS = 0;
#endif
  RSSI = 0;
  if (readReg(REG_IRQFLAGS2) & RF_IRQFLAGS2_PAYLOADREADY)
    writeReg(REG_PACKETCONFIG2, (readReg(REG_PACKETCONFIG2) & 0xFB) | RF_PACKET2_RXRESTART); // avoid RX deadlocks
  writeReg(REG_DIOMAPPING1, RF_DIOMAPPING1_DIO0_01); // set DIO0 to "PAYLOADREADY" in receive mode
  setMode(RF69_MODE_RX);
}

In the debug output you can see that clock frequencies of the two test devices are slightly different. Every so often they transmit close enough to corrupt one of the message payloads which causes the deadlock.

22:20:26.379 Address 0X99 10011001
22:20:26 Received 14 byte message Hello World:10
22:20:26.561 RegIrqFlags2 01100110
22:20:26.576 Address 0X66 01100110
22:20:26 Received 14 byte message Hello World:26
.22:20:27.501 RegIrqFlags2 01100110
22:20:27.517 Address 0X99 10011001
22:20:27 Received 14 byte message Hello World:11
22:20:27.699 RegIrqFlags2 01100110
22:20:27.714 Address 0X66 01100110
22:20:27 Received 14 byte message Hello World:27
...............................

Now I need to back integrate the fix into the send & receive message methods of my code, then stress test the library with even more client devices.

RFM69 hat library receive lockups issue

Sometimes while testing code you notice something odd. Every so often the Enums & Masks application locks up and stops receiving messages from my test rig.

easysensors RFM69HCW test rig

The symptom is that after 5 to 30 minutes the application stops receiving messages

21:37:37.568 RegIrqFlags1 11011001
21:37:37.583 Address 0X99 10011001
21:37:37 Received 14 byte message Hello World:61
..21:37:38.693 RegIrqFlags2 01100110
21:37:38.706 RegIrqFlags1 11011001
21:37:38.724 Address 0X99 10011001
21:37:38 Received 14 byte message Hello World:62
............The thread 0xba8 has exited with code 0 (0x0).
.................................................................................................................................................The thread 0xf90 has exited with code 0 (0x0).
.....................The thread 0xe30 has exited with code 0 (0x0).
.......................The thread 0xa04 has exited with code 0 (0x0).
................................The thread 0xc8c has exited with code 0 (0x0).
..........................................................................................The thread 0xc38 has exited with code 0 (0x0).
......................The thread 0xf68 has exited with code 0 (0x0).
......................................................................................The thread 0x1c8 has exited with code 0 (0x0).
..........The thread 0xeb8 has exited with code 0 (0x0).
..............................................................The thread 0xbb8 has exited with code 0 (0x0).
..........The thread 0xdc0 has exited with code 0 (0x0).
...............................The thread 0x820 has exited with code 0 (0x0).
....................................The thread 0xaac has exited with code 0 (0x0).
......The thread 0xbf0 has exited with code 0 (0x0).
............................................The thread 0x4e8 has exited with code 0 (0x0).
...............................The thread 0x1b4 has exited with code 0 (0x0).
...............................................................The thread 0xbdc has exited with code 0 (0x0).
....................The thread 0xb60 has exited with code 0 (0x0).
.........................................................................................................The thread 0x510 has exited with code 0 (0x0).
........The thread 0xf60 has exited with code 0 (0x0).
........................................................The thread 0x3c0 has exited with code 0 (0x0).
......................................The thread 0xa4c has exited with code 0 (0x0).
..................................................................The thread 0x9e0 has exited with code 0 (0x0).
....................The thread 0xd74 has exited with code 0 (0x0).
............................The thread 0xfa0 has exited with code 0 (0x0).
..................................................................................................The thread 0xfe0 has exited with code 0 (0x0).
....................................................................................The thread 0xdd4 has exited with code 0 (0x0).
........................The thread 0xc00 has exited with code 0 (0x0).
..................................The thread 0x478 has exited with code 0 (0x0).
.........................The thread 0x88c has exited with code 0 (0x0).
...........................................The thread 0x280 has exited with code 0 (0x0).
..........................................The thread 0x8e4 has exited with code 0 (0x0).
............The thread 0x410 has exited with code 0 (0x0).
..............................................The thread 0xa70 has exited with code 0 (0x0).
................The thread 0x994 has exited with code 0 (0x0).
....................The thread 0x298 has exited with code 0 (0x0).
..............The thread 0x3a4 has exited with code 0 (0x0).
............................................................The thread 0xa2c has exited with code 0 (0x0).
..........The thread 0x208 has exited with code 0 (0x0).
..........................................................................The thread 0xbd4 has exited with code 0 (0x0).
............The thread 0xfdc has exited with code 0 (0x0).
........................................................................The thread 0x36c has exited with code 0 (0x0).
...........22:08:57.638 RegIrqFlags2 01100110
22:08:57.658 RegIrqFlags1 11011001
22:08:57.676 Address 0X66 01100110
22:08:57 Received 15 byte message Hello World:157
22:08:57.807 RegIrqFlags2 01100110

But, every so often it would after many minutes start up again without me doing anything (I noticed this after leaving application running overnight). I could get the application to restart by putting a break point on the Debug.Write(“.”) and toggling the OperationMode from Sleep to Receive

Using Visual Studio Immediate Windows to execute SetMode

I have found if the device is transmitting every so often the lockups are also much less likely. To help with debugging the issue I have wired up the three buttons on the Adafruit Radio Bonnet to call different diagnostic code

public void Run(IBackgroundTaskInstance taskInstance)
{
	byte[] syncValues = { 0xAA, 0x2D, 0xD4 };
	byte[] aesKeyValues = { 0x0, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A, 0x0B, 0x0C, 0x0D, 0X0E, 0X0F };

	GpioController gpioController = GpioController.GetDefault();

	InterruptGpioPin1 = gpioController.OpenPin(5);
	InterruptGpioPin1.SetDriveMode(GpioPinDriveMode.InputPullUp);
	InterruptGpioPin1.ValueChanged += InterruptGpioPin1_ValueChanged; ;

	InterruptGpioPin1 = gpioController.OpenPin(6);
	InterruptGpioPin1.SetDriveMode(GpioPinDriveMode.InputPullUp);
	InterruptGpioPin1.ValueChanged += InterruptGpioPin2_ValueChanged; ;

	InterruptGpioPin1 = gpioController.OpenPin(12);
	InterruptGpioPin1.SetDriveMode(GpioPinDriveMode.InputPullUp);
	InterruptGpioPin1.ValueChanged += InterruptGpioPin3_ValueChanged; ;

…

private void InterruptGpioPin1_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
   Debug.WriteLine("InterruptGpioPin1_ValueChanged");
   rfm69Device.SetMode(Rfm69HcwDevice.RegOpModeMode.Sleep);
   rfm69Device.SetMode(Rfm69HcwDevice.RegOpModeMode.Receive);
}

private void InterruptGpioPin2_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
   Debug.WriteLine("Receive-Wait");
   byte IrqFlags = rfm69Device.RegisterManager.ReadByte(0x28); // RegIrqFlags2
   while ((IrqFlags & 0b00000100) == 0)  // wait until PayLoadReady set
   {
      Task.Delay(20).Wait();
      IrqFlags = rfm69Device.RegisterManager.ReadByte(0x28); // RegIrqFlags2
      Debug.WriteLine(string.Format("RegIrqFlags {0}", Convert.ToString((byte)IrqFlags, 2).PadLeft(8, '0')));
       Debug.Write(".");
   }
   Debug.WriteLine("");

   // Read the length
   byte numberOfBytes = rfm69Device.RegisterManager.ReadByte(0x0);

   // Allocate buffer for message
   byte[] messageBytes = new byte[numberOfBytes];

  for (int i = 0; i < numberOfBytes; i++)
  {
     messageBytes[i] = rfm69Device.RegisterManager.ReadByte(0x00); // RegFifo
   }

  string messageText = UTF8Encoding.UTF8.GetString(messageBytes);
  Debug.WriteLine("Received {0} byte message {1}", messageBytes.Length, messageText);

  Debug.WriteLine("Receive-Done");
}

private void InterruptGpioPin3_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
   Debug.WriteLine("Receive-No wait");

  // Read the length
  byte numberOfBytes = rfm69Device.RegisterManager.ReadByte(0x0);

  // Allocate buffer for message
  byte[] messageBytes = new byte[numberOfBytes];

  for (int i = 0; i < numberOfBytes; i++)
  {
      messageBytes[i] = rfm69Device.RegisterManager.ReadByte(0x00); // RegFifo
   }

  string messageText = UTF8Encoding.UTF8.GetString(messageBytes);
  Debug.WriteLine("Received {0} byte message {1}", messageBytes.Length, messageText);

  Debug.WriteLine("Receive-Done");
}

Looks like this maybe a bit of a heisenbug as it takes a longish time to appear and poking around in the debugger and adding more diagnostics changes the frequency the error.

Received 16 byte message
Receive-Done
.............................Receive-No wait
Received 16 byte message
Receive-Done
Receive-No wait
Received 16 byte message
Receive-Done
....Receive-No wait
Received 16 byte message
Receive-Done
Receive-No wait
Received 16 byte message
Receive-Done
.............

Pressing button one restarts inbound messages for a while, button two sits in an endless loop, button three reads in a 16 byte message of 0x10 characters, which I think is buffer length. I have added code to catch exceptions and stop re-entrancy but it never seems to get triggered.

private void InterruptGpioPin_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
{
	if (args.Edge != GpioPinEdge.RisingEdge)
	{
		return;
	}

	if (InIrqHandler)
	{
		Debug.WriteLine("{0:HH:mm:ss.fff} InIrqHandler+++++++++++++++++++++++++++++++++++++++++++++++++++++++++", DateTime.Now);
		return;
	}
	InIrqHandler = true;

	try
	{
		RegIrqFlags2 irqFlags2 = (RegIrqFlags2)RegisterManager.ReadByte((byte)Registers.RegIrqFlags2);
		Debug.WriteLine("{0:HH:mm:ss.fff} RegIrqFlags2 {1}", DateTime.Now, Convert.ToString((byte)irqFlags2, 2).PadLeft(8, '0'));

		if ((irqFlags2 & RegIrqFlags2.PayloadReady) == RegIrqFlags2.PayloadReady)
		{
			if ((irqFlags2 & RegIrqFlags2.CrcOk) == RegIrqFlags2.CrcOk)
			{
				RegIrqFlags1 irqFlags1 = (RegIrqFlags1)RegisterManager.ReadByte((byte)Registers.RegIrqFlags1); // RegIrqFlags1

				//	SetMode(RegOpModeMode.Sleep);

				// Read the length of the buffer
				byte numberOfBytes = RegisterManager.ReadByte(0x0);
					Debug.WriteLine("{0:HH:mm:ss.fff} RegIrqFlags1 {1}", DateTime.Now, Convert.ToString((byte)irqFlags1, 2).PadLeft(8, '0'));
				if (((irqFlags1 & RegIrqFlags1.SynAddressMatch) == RegIrqFlags1.SynAddressMatch) && DeviceAddressingEnabled)
				{
					byte address = RegisterManager.ReadByte(0x0);
					Debug.WriteLine("{0:HH:mm:ss.fff} Address 0X{1:X2} {2}", DateTime.Now, address, Convert.ToString((byte)address, 2).PadLeft(8, '0'));
					numberOfBytes--;
				}

				// Allocate buffer for message
				byte[] messageBytes = new byte[numberOfBytes];

				for (int i = 0; i < numberOfBytes; i++)
				{
					messageBytes[i] = RegisterManager.ReadByte(0x00); // RegFifo
				}
				//SetMode(RegOpModeMode.Receive);

				string messageText = UTF8Encoding.UTF8.GetString(messageBytes);
					Debug.WriteLine("{0:HH:mm:ss} Received {1} byte message {2}", DateTime.Now, messageBytes.Length, messageText);
			}
			else
			{
				Debug.WriteLine("{0:HH:mm:ss} Received message CRC NOK++++++++++++", DateTime.Now);
			}
		}

		if ((irqFlags2 & RegIrqFlags2.PacketSent) == RegIrqFlags2.PacketSent)  // PacketSent set
		{
			RegisterManager.WriteByte(0x01, 0b00010000); // RegOpMode set ReceiveMode
			Debug.WriteLine("{0:HH:mm:ss.fff} Transmit-Done", DateTime.Now);
		}
	}
	catch (Exception ex)
	{
		Debug.WriteLine($"################### {ex.Source}");
		Debug.WriteLine($"################### {ex.Message}");
		Debug.WriteLine($"################### {ex.StackTrace}");
	}
	finally
	{
		InIrqHandler = false;
	}
}


I need to have a look at the Low Power Lab and HopeRF libraries to see how they handle message received interrupts.

RFM69 hat library Part12C

Enums and Masks – Synchronisation

The RFM69CW/RFM69HCW module (based on the Semtech SX1231/SX1231H) has configurable (RegSyncConfig) synchronisation sequences (the length, tolerance for errors and the individual byte values).

By default synchronisation is enabled and a default sequence of bytes is used, in my library synchronisation is NOT enabled until a SyncValue is provided.

I added some additional constants and enumerations for the other settings configured in RegSyncConfig.

// RegSyncConfig
// This is private because default ignored and flag set based on SyncValues parameter being specified rather than default
private enum RegSyncConfigSyncOn
{
	Off = 0b00000000,
	On = 0b10000000
}

public enum RegSyncConfigFifoFileCondition
{
	SyncAddressInterrupt = 0b00000000,
	FifoFillCondition =    0b01000000
}

private const RegSyncConfigFifoFileCondition SyncFifoFileConditionDefault = RegSyncConfigFifoFileCondition.SyncAddressInterrupt;
readonly byte[] SyncValuesDefault = {0x01, 0x01, 0x01, 0x01};
public const byte SyncValuesSizeDefault = 4;
public const byte SyncValuesSizeMinimum = 1;
public const byte SyncValuesSizeMaximum = 8;

private const byte SyncToleranceDefault = 0;
public const byte SyncToleranceMinimum = 0;
public const byte SyncToleranceMaximum = 7;

I also added some guard conditions to the initialise method which validate the syncFifoFileCondition, syncTolerance and syncValues length.

public void Initialise(RegOpModeMode modeAfterInitialise,
	BitRate bitRate = BitRateDefault,
	ushort frequencyDeviation = frequencyDeviationDefault,
	double frequency = FrequencyDefault,
	ListenModeIdleResolution listenModeIdleResolution = ListenModeIdleResolutionDefault, ListenModeRXTime listenModeRXTime = ListenModeRXTimeDefault, ListenModeCrieria listenModeCrieria = ListenModeCrieriaDefault, ListenModeEnd listenModeEnd = ListenModeEndDefault,
	byte listenCoefficientIdle = ListenCoefficientIdleDefault,
	byte listenCoefficientReceive = ListenCoefficientReceiveDefault,
	bool pa0On = pa0OnDefault, bool pa1On = pa1OnDefaut, bool pa2On = pa2OnDefault, byte outputpower = OutputpowerDefault,
	PaRamp paRamp = PaRampDefault,
	bool ocpOn = OcpOnDefault, byte ocpTrim = OcpTrimDefault,
	LnaZin lnaZin = LnaZinDefault, LnaCurrentGain lnaCurrentGain = LnaCurrentGainDefault, LnaGainSelect lnaGainSelect = LnaGainSelectDefault,
	byte dccFrequency = DccFrequencyDefault, RxBwMant rxBwMant = RxBwMantDefault, byte RxBwExp = RxBwExpDefault,
	byte dccFreqAfc = DccFreqAfcDefault, byte rxBwMantAfc = RxBwMantAfcDefault, byte bxBwExpAfc = RxBwExpAfcDefault,
	ushort preambleSize = PreambleSizeDefault,
	RegSyncConfigFifoFileCondition? syncFifoFileCondition = null, byte? syncTolerance = null, byte[] syncValues = null,
	RegPacketConfig1PacketFormat packetFormat = RegPacketConfig1PacketFormat.FixedLength,
	RegPacketConfig1DcFree packetDcFree = RegPacketConfig1DcFreeDefault,
	bool packetCrc = PacketCrcOnDefault,
	bool packetCrcAutoClearOff = PacketCrcAutoClearOffDefault,
	RegPacketConfig1CrcAddressFiltering packetAddressFiltering = PacketAddressFilteringDefault,
	byte payloadLength = PayloadLengthDefault,
	byte addressNode = NodeAddressDefault, byte addressbroadcast = BroadcastAddressDefault,
	TxStartCondition txStartCondition = TxStartConditionDefault, byte fifoThreshold = FifoThresholdDefault,
	byte interPacketRxDelay = InterPacketRxDelayDefault, bool restartRx = RestartRxDefault, bool autoRestartRx = AutoRestartRxDefault,
	byte[] aesKey = null
	)
{
	RegOpModeModeCurrent = modeAfterInitialise;
	PacketFormat = packetFormat;

	#region RegSyncConfig + RegSyncValue1 to RegSyncValue8 guard conditions
	if (syncValues != null)
	{
		// If sync enabled (i.e. SyncValues array provided) check that SyncValues not to short/long and SyncTolerance not to small/big
		if ((syncValues.Length < SyncValuesSizeMinimum) || (syncValues.Length > SyncValuesSizeMaximum))
		{
			throw new ArgumentException($"The syncValues array length must be between {SyncValuesSizeMinimum} and {SyncValuesSizeMaximum} bytes", "syncValues");
		}
		if (syncTolerance.HasValue)
		{
			if ((syncTolerance < SyncToleranceMinimum) || (syncTolerance > SyncToleranceMaximum))
			{
				throw new ArgumentException($"The syncTolerance size must be between {SyncToleranceMinimum} and {SyncToleranceMaximum}", "syncTolerance");
			}
		}
	}
	else
	{
		// If sync not enabled (i.e. SyncValues array null) check that no syncFifoFileCondition or syncTolerance configuration specified
		if (syncFifoFileCondition.HasValue)
		{
			throw new ArgumentException($"If Sync not enabled syncFifoFileCondition is not supported", "syncFifoFileCondition");
		}

		if (syncTolerance.HasValue)
		{
			throw new ArgumentException($"If Sync not enabled SyncTolerance is not supported", "syncTolerance");
		}
	}
	#endregion

I also ensure that the syncFifoFileCondition and syncTolerance are not specified if synchronisation is not enabled.

The Arduino client code works though I need modify it so I can do more testing of the initialise method parameter options.

RFM69 hat library Part12B

Enums and Masks – Encryption

The RFM69CW/RFM69HCW module (based on the Semtech SX1231/SX1231H) has built in support for 128bit Advanced Encryption Standard(AES) encoding of message payloads. To make encryption easy to configure I added some additional constants and enumerations for the other settings configured in RegPacketConfig2.

// RegPacketConfig2
private const byte InterPacketRxDelayDefault = 0;
public const byte InterPacketRxDelayMinimum = 0x0;
public const byte InterPacketRxDelayMaximum = 0xF;

private const bool RestartRxDefault = false;
[Flags]
private enum RegPacketConfig2RestartRxDefault : byte
{
	Off = 0b00000000,
	On = 0b00000100,
}

private const bool AutoRestartRxDefault = true;
[Flags]
private enum RegPacketConfig2AutoRestartRxDefault : byte
{
	Off = 0b00000000,
	On = 0b00000010,
}

[Flags]
private enum RegPacketConfig2Aes : byte
{
	Off = 0b00000000,
	On = 0b00000001,
}
public const byte AesKeyLength = 16;

I then added some guard conditions to the initialise method to validate the InterPacketRxDelay and the encryption key length.

public void Initialise(RegOpModeMode modeAfterInitialise,
	BitRate bitRate = BitRateDefault,
	ushort frequencyDeviation = frequencyDeviationDefault,
	double frequency = FrequencyDefault,
	ListenModeIdleResolution listenModeIdleResolution = ListenModeIdleResolutionDefault, ListenModeRXTime listenModeRXTime = ListenModeRXTimeDefault, ListenModeCrieria listenModeCrieria = ListenModeCrieriaDefault, ListenModeEnd listenModeEnd = ListenModeEndDefault,
	byte listenCoefficientIdle = ListenCoefficientIdleDefault,
	byte listenCoefficientReceive = ListenCoefficientReceiveDefault,
	bool pa0On = pa0OnDefault, bool pa1On = pa1OnDefaut, bool pa2On = pa2OnDefault, byte outputpower = OutputpowerDefault,
	PaRamp paRamp = PaRampDefault,
	bool ocpOn = OcpOnDefault, byte ocpTrim = OcpTrimDefault,
	LnaZin lnaZin = LnaZinDefault, LnaCurrentGain lnaCurrentGain = LnaCurrentGainDefault, LnaGainSelect lnaGainSelect = LnaGainSelectDefault,
	byte dccFrequency = DccFrequencyDefault, RxBwMant rxBwMant = RxBwMantDefault, byte RxBwExp = RxBwExpDefault,
	byte dccFreqAfc = DccFreqAfcDefault, byte rxBwMantAfc = RxBwMantAfcDefault, byte bxBwExpAfc = RxBwExpAfcDefault,
	ushort preambleSize = PreambleSizeDefault,
	bool syncOn = SyncOnDefault, SyncFifoFileCondition syncFifoFileCondition = SyncFifoFileConditionDefault, byte syncSize = SyncSizeDefault, byte syncTolerance = SyncToleranceDefault, byte[] syncValues = null,
	RegPacketConfig1PacketFormat packetFormat = RegPacketConfig1PacketFormat.FixedLength,
	RegPacketConfig1DcFree packetDcFree = RegPacketConfig1DcFreeDefault,
	bool packetCrc = PacketCrcOnDefault,
	bool packetCrcAutoClearOff = PacketCrcAutoClearOffDefault,
	RegPacketConfig1CrcAddressFiltering packetAddressFiltering = PacketAddressFilteringDefault,
	byte payloadLength = PayloadLengthDefault,
	byte addressNode = NodeAddressDefault, byte addressbroadcast = BroadcastAddressDefault,
	TxStartCondition txStartCondition = TxStartConditionDefault, byte fifoThreshold = FifoThresholdDefault,
	byte interPacketRxDelay = InterPacketRxDelayDefault, bool restartRx = RestartRxDefault, bool autoRestartRx = AutoRestartRxDefault,
	byte[] aesKey = null
)
{
	RegOpModeModeCurrent = modeAfterInitialise;
	PacketFormat = packetFormat;

	#region Guard Conditions
	if ((interPacketRxDelay < InterPacketRxDelayMinimum ) || (interPacketRxDelay > InterPacketRxDelayMaximum))
	{
		throw new ArgumentException($"The interPacketRxDelay must be between {InterPacketRxDelayMinimum} and {InterPacketRxDelayMaximum}", "interPacketRxDelay");
	}
	if ((aesKey != null) && (aesKey.Length != AesKeyLength))
	{
		throw new ArgumentException($"The AES key must be {AesKeyLength} bytes", "aesKey");
	}
	#endregion

This required some modifications to the run method to catch the new exceptions gracefully.

public void Run(IBackgroundTaskInstance taskInstance)
{
	byte[] syncValues ={0xAA, 0x2D, 0xD4};
	byte[] aesKeyValues = {0x0, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A, 0x0B, 0x0C, 0x0D, 0X0E, 0X0F };

	rfm69Device.RegisterDump();

	try
	{
		rfm69Device.Initialise(Rfm69HcwDevice.RegOpModeMode.StandBy,
			bitRate: Rfm69HcwDevice.BitRate.bps4K8,
			frequency: 915000000.0, frequencyDeviation: 0X023d,
			dccFrequency: 0x1,rxBwMant: Rfm69HcwDevice.RxBwMant.RxBwMant20, RxBwExp:0x2,
			preambleSize: 16,
			syncSize: 3,
			syncValues: syncValues,
			packetFormat: Rfm69HcwDevice.RegPacketConfig1PacketFormat.VariableLength,
			packetCrc:true,
			aesKey: aesKeyValues
			);

		rfm69Device.RegisterDump();

		// RegDioMapping1
		rfm69Device.RegisterManager.WriteByte(0x26, 0x01);

		rfm69Device.RegisterDump();
		while (true)
		{
			string message = "hello world " + DateTime.Now.ToLongTimeString();

			byte[] messageBuffer = UTF8Encoding.UTF8.GetBytes(message);

			Debug.WriteLine("{0:HH:mm:ss.fff} Send-{1}", DateTime.Now, message);
			rfm69Device.SendMessage(messageBuffer);

			Debug.WriteLine("{0:HH:mm:ss.fff} Send-Done", DateTime.Now);

			Task.Delay(5000).Wait();
		}
	}
	catch( Exception ex)
	{
		Debug.WriteLine(ex.Message);
	}
}

The Arduino client code works though I need modify it so I can do more testing of the initialise method parameter options.

RFM69 hat library Part12A

Enums and Masks

Based on the approach I used in my RFM9X library this refactor adds enumerations and constants for initialising and then accessing the registers of the RFM69CW/RFM69HCW module (based on the Semtech SX1231/SX1231H) .

Adafruit RFM69 Radio Bonnet

There is now a even less code in the Run method in the startup.cs file and the code for configuring the RFM69 is more obvious

public sealed class StartupTask : IBackgroundTask
{
	private const int ResetPin = 25;
	private const int InterruptPin = 22;
	private Rfm69HcwDevice rfm69Device = new Rfm69HcwDevice(ChipSelectPin.CS1, ResetPin, InterruptPin);

	public void Run(IBackgroundTaskInstance taskInstance)
	{
		byte[] syncValues ={0xAA, 0x2D, 0xD4};

		rfm69Device.Initialise(Rfm69HcwDevice.RegOpModeMode.StandBy,
			bitRate: Rfm69HcwDevice.BitRate.bps4K8,
			frequency: 915000000.0, frequencyDeviation: 0X023d,
			dccFrequency: 0x1,rxBwMant: Rfm69HcwDevice.RxBwMant.RxBwMant20, RxBwExp:0x2,
			preambleSize: 16,
			syncSize: 3,
			syncValues: syncValues,
			packetFormat: Rfm69HcwDevice.RegPacketConfig1PacketFormat.VariableLength,
			packetCrc:true
		);

	// RegDioMapping1
	rfm69Device.RegisterManager.WriteByte(0x26, 0x01);

	rfm69Device.RegisterDump();

	while (true)
	{
		byte[] messageBuffer = UTF8Encoding.UTF8.GetBytes("hello world " + DateTime.Now.ToLongTimeString());

		rfm69Device.SendMessage(messageBuffer);

		Debug.WriteLine("{0:HH:mm:ss.fff} Send-Done", DateTime.Now);

		Task.Delay(5000).Wait();
	}
}

The Rasmitic library modifies a number of the default settings (e.g. RegRxBw register) so I had to reverse engineer the values. I also added SendMessage methods for both addressed and un-addressed messages.

Register dump
Register 0x01 - Value 0X04 - Bits 00000100
Register 0x02 - Value 0X00 - Bits 00000000
Register 0x03 - Value 0X1a - Bits 00011010
…
Register 0x4b - Value 0X00 - Bits 00000000
Register 0x4c - Value 0X00 - Bits 00000000
Register 0x4d - Value 0X00 - Bits 00000000
16:52:38.337 Send-Done
16:52:38.456 RegIrqFlags 00001000
16:52:38.472 Transmit-Done
The thread 0xfe4 has exited with code 0 (0x0).
The thread 0x100 has exited with code 0 (0x0).
16:52:43.391 Send-Done
16:52:43.465 RegIrqFlags 00001000
16:52:43.480 Transmit-Done
The thread 0xb94 has exited with code 0 (0x0).
16:52:48.475 Send-Done
16:52:48.550 RegIrqFlags 00001000
16:52:48.563 Transmit-Done
16:52:53.448 RegIrqFlags 01000110
16:52:53 Received 13 byte message Hello world:0
The thread 0x2b4 has exited with code 0 (0x0).
16:52:53.559 Send-Done
16:52:53.633 RegIrqFlags 00001000
16:52:53.648 Transmit-Done
16:52:54.577 RegIrqFlags 01000110
16:52:54 Received 13 byte message Hello world:1
16:52:55.706 RegIrqFlags 01000110
16:52:55 Received 13 byte message Hello world:2
16:52:56.836 RegIrqFlags 01000110
16:52:56 Received 13 byte message Hello world:3
16:52:57.965 RegIrqFlags 01000110
16:52:57 Received 13 byte message Hello world:4
The thread 0x354 has exited with code 0 (0x0).
16:52:58.634 Send-Done
16:52:58.709 RegIrqFlags 00001000
16:52:58.724 Transmit-Done
16:52:59.095 RegIrqFlags 01000110
16:52:59 Received 13 byte message Hello world:5
The program '[3736] backgroundTaskHost.exe' has exited with code -1

The Arduino code works though I need modify it so I can do more testing of the initialise method parameter options.

16:41:03.619 -> RX start
16:41:03.619 -> 0x0: 0x0
16:41:03.654 -> 0x1: 0x10
16:41:03.654 -> 0x2: 0x0
…
16:41:04.310 -> 0x3B: 0x0
16:41:04.310 -> 0x3C: 0x1
16:41:04.344 -> 0x3D: 0x0
16:41:07.228 -> MessageIn:hello world 4:41:07 PM
16:41:12.322 -> MessageIn:hello world 4:41:12 PM
16:41:17.395 -> MessageIn:hello world 4:41:17 PM
16:41:22.448 -> MessageIn:hello world 4:41:22 PM
16:41:27.533 -> MessageIn:hello world 4:41:27 PM
16:41:32.609 -> MessageIn:hello world 4:41:32 PM
16:41:37.673 -> MessageIn:hello world 4:41:37 PM

The Initialise method has a large number of parameters but as most of these have a reasonable default I’m not to concerned.

public void Initialise(RegOpModeMode modeAfterInitialise,
			BitRate bitRate = BitRateDefault,
			ushort frequencyDeviation = frequencyDeviationDefault,
			double frequency = FrequencyDefault,
			ListenModeIdleResolution listenModeIdleResolution = ListenModeIdleResolutionDefault, ListenModeRXTime listenModeRXTime = ListenModeRXTimeDefault, ListenModeCrieria listenModeCrieria = ListenModeCrieriaDefault, ListenModeEnd listenModeEnd = ListenModeEndDefault,
			byte listenCoefficientIdle = ListenCoefficientIdleDefault,
			byte listenCoefficientReceive = ListenCoefficientReceiveDefault,
			bool pa0On = pa0OnDefault, bool pa1On = pa1OnDefaut, bool pa2On = pa2OnDefault, byte outputpower = OutputpowerDefault,
			PaRamp paRamp = PaRampDefault,
			bool ocpOn = OcpOnDefault, byte ocpTrim = OcpTrimDefault,
			LnaZin lnaZin = LnaZinDefault, LnaCurrentGain lnaCurrentGain = LnaCurrentGainDefault, LnaGainSelect lnaGainSelect = LnaGainSelectDefault,
			byte dccFrequency = DccFrequencyDefault, RxBwMant rxBwMant = RxBwMantDefault, byte RxBwExp = RxBwExpDefault,
			byte dccFreqAfc = DccFreqAfcDefault, byte rxBwMantAfc = RxBwMantAfcDefault, byte bxBwExpAfc = RxBwExpAfcDefault,
			ushort preambleSize = PreambleSizeDefault,
			bool syncOn = SyncOnDefault, SyncFifoFileCondition syncFifoFileCondition = SyncFifoFileConditionDefault, byte syncSize = SyncSizeDefault, byte syncTolerance = SyncToleranceDefault, byte[] syncValues = null,
			RegPacketConfig1PacketFormat packetFormat = RegPacketConfig1PacketFormat.FixedLength,
			RegPacketConfig1DcFree packetDcFree = RegPacketConfig1DcFreeDefault,
			bool packetCrc = PacketCrcOnDefault,
			bool packetCrcAutoClearOff = PacketCrcAutoClearOffDefault,
			RegPacketConfig1CrcAddressFiltering packetAddressFiltering = PacketAddressFilteringDefault,
			byte payloadLength = PayloadLengthDefault,
			byte addressNode = NodeAddressDefault, byte addressbroadcast = BroadcastAddressDefault
			)
		{
			RegOpModeModeCurrent = modeAfterInitialise;
			PacketFormat = packetFormat;

			// Strobe Reset pin briefly to factory reset SX1231 chip
			ResetGpioPin.Write(GpioPinValue.High);
			Task.Delay(100);
			ResetGpioPin.Write(GpioPinValue.Low);
			Task.Delay(10);

			// Put the device into sleep mode so registers can be changed
			SetMode(RegOpModeMode.Sleep);

Most of the initialise method follows a similar pattern, checking parameters associated with a Register and only setting it if the cvalues are not all the default

// Configure RF Carrier frequency RegFrMsb, RegFrMid, RegFrLsb
if (frequency != FrequencyDefault)
{
	byte[] bytes = BitConverter.GetBytes((long)(frequency / RH_RFM69HCW_FSTEP));
	RegisterManager.WriteByte((byte)Registers.RegFrfMsb, bytes[2]);
	RegisterManager.WriteByte((byte)Registers.RegFrfMid, bytes[1]);
	RegisterManager.WriteByte((byte)Registers.RegFrfLsb, bytes[0]);
}

Some registers are a bit more complex to configure e.g. RegSyncConfig

// RegSyncConfig
if ((syncOn != SyncOnDefault) ||
	 (syncFifoFileCondition != SyncFifoFileConditionDefault) ||
	 (syncSize != SyncSizeDefault) ||
	 (syncTolerance != SyncToleranceDefault))
{
	byte regSyncConfigValue= 0b00000000;

	if (syncOn)
	{
		regSyncConfigValue |= 0b10000000;
	}

	regSyncConfigValue |= (byte)syncFifoFileCondition;

	regSyncConfigValue |= (byte)((syncSize - 1) << 3);
	regSyncConfigValue |= (byte)syncTolerance;
	RegisterManager.WriteByte((byte)Registers.RegSyncConfig, regSyncConfigValue);
}

I have just got to finish the code for RegFifoThresh, RegPacketConfig2 and the RegAesKey1-16 registers.

Other libraries for the RRFM69 support changing configuration while the application is running which significantly increases the complexity and number of test cases. My initial version will only support configuration on start-up.

RFM69 hat library Part11

RegisterManager Refactor

I had been meaning to refactor the code for accessing the registers of the RFM69CW/RFM69HCW module (based on the Semtech SX1231/SX1231H) registers for a while.

Adafruit RFM69 Radio Bonnet

There is now a lot less code in the startup.cs file and the code for configuring the RFM69 is more obvious

/*
    Copyright ® 2019 July devMobile Software, All Rights Reserved

	 MIT License

	 Permission is hereby granted, free of charge, to any person obtaining a copy
	 of this software and associated documentation files (the "Software"), to deal
    in the Software without restriction, including without limitation the rights
	 to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
	 copies of the Software, and to permit persons to whom the Software is
    furnished to do so, subject to the following conditions:

    The above copyright notice and this permission notice shall be included in all
	 copies or substantial portions of the Software.

    THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
	 IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
    FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
	 AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
	 LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
    OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
	 SOFTWARE

 */
namespace devMobile.IoT.Rfm69Hcw.RefactorRegisterManager
{
	using System;
	using System.Diagnostics;
	using System.Text;
	using System.Threading.Tasks;
	using Windows.ApplicationModel.Background;
	using Windows.Devices.Gpio;

	sealed class Rfm69HcwDevice
	{
		private GpioPin InterruptGpioPin = null;
		public RegisterManager RegisterManager = null; // Future refactor this will be made private

		public Rfm69HcwDevice(ChipSelectPin chipSelectPin, int resetPin, int interruptPin)
		{
			RegisterManager = new RegisterManager(chipSelectPin);

			// Factory reset pin configuration
			GpioController gpioController = GpioController.GetDefault();
			GpioPin resetGpioPin = gpioController.OpenPin(resetPin);
			resetGpioPin.SetDriveMode(GpioPinDriveMode.Output);
			resetGpioPin.Write(GpioPinValue.High);
			Task.Delay(100);
			resetGpioPin.Write(GpioPinValue.Low);
			Task.Delay(10);

			// Interrupt pin for RX message & TX done notification
			InterruptGpioPin = gpioController.OpenPin(interruptPin);
			resetGpioPin.SetDriveMode(GpioPinDriveMode.Input);

			InterruptGpioPin.ValueChanged += InterruptGpioPin_ValueChanged;
		}

		private void InterruptGpioPin_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
		{
			if (args.Edge != GpioPinEdge.RisingEdge)
			{
				return;
			}

			byte irqFlags = RegisterManager.ReadByte(0x28); // RegIrqFlags2
			Debug.WriteLine("{0:HH:mm:ss.fff} RegIrqFlags {1}", DateTime.Now, Convert.ToString((byte)irqFlags, 2).PadLeft(8, '0'));
			if ((irqFlags & 0b00000100) == 0b00000100)  // PayLoadReady set
			{
				// Read the length of the buffer
				byte numberOfBytes = RegisterManager.ReadByte(0x0);

				// Allocate buffer for message
				byte[] messageBytes = new byte[numberOfBytes];

				for (int i = 0; i < numberOfBytes; i++)
				{
					messageBytes[i] = RegisterManager.ReadByte(0x00); // RegFifo
				}

				string messageText = UTF8Encoding.UTF8.GetString(messageBytes);
				Debug.WriteLine("{0:HH:mm:ss} Received {1} byte message {2}", DateTime.Now, messageBytes.Length, messageText);
			}

			if ((irqFlags & 0b00001000) == 0b00001000)  // PacketSent set
			{
				RegisterManager.WriteByte(0x01, 0b00010000); // RegOpMode set ReceiveMode
				Debug.WriteLine("{0:HH:mm:ss.fff} Transmit-Done", DateTime.Now);
			}
		}

		public void RegisterDump()
		{
			RegisterManager.Dump(0x0, 0x40);
		}
	}


	public sealed class StartupTask : IBackgroundTask
	{
		private const int ResetPin = 25;
		private const int InterruptPin = 22;
		private Rfm69HcwDevice rfm69Device = new Rfm69HcwDevice(ChipSelectPin.CS1, ResetPin, InterruptPin);

		const double RH_RF6M9HCW_FXOSC = 32000000.0;
		const double RH_RFM69HCW_FSTEP = RH_RF6M9HCW_FXOSC / 524288.0;

		public void Run(IBackgroundTaskInstance taskInstance)
		{
			//rfm69Device.RegisterDump();

			// regOpMode standby
			rfm69Device.RegisterManager.WriteByte(0x01, 0b00000100);

			// BitRate MSB/LSB
			rfm69Device.RegisterManager.WriteByte(0x03, 0x34);
			rfm69Device.RegisterManager.WriteByte(0x04, 0x00);

			// Frequency deviation
			rfm69Device.RegisterManager.WriteByte(0x05, 0x02);
			rfm69Device.RegisterManager.WriteByte(0x06, 0x3d);

			// Calculate the frequency accoring to the datasheett
			byte[] bytes = BitConverter.GetBytes((uint)(915000000.0 / RH_RFM69HCW_FSTEP));
			Debug.WriteLine("Byte Hex 0x{0:x2} 0x{1:x2} 0x{2:x2} 0x{3:x2}", bytes[0], bytes[1], bytes[2], bytes[3]);
			rfm69Device.RegisterManager.WriteByte(0x07, bytes[2]);
			rfm69Device.RegisterManager.WriteByte(0x08, bytes[1]);
			rfm69Device.RegisterManager.WriteByte(0x09, bytes[0]);

			// RegRxBW
			rfm69Device.RegisterManager.WriteByte(0x19, 0x2a);

			// RegDioMapping1
			rfm69Device.RegisterManager.WriteByte(0x26, 0x01);

			// Setup preamble length to 16 (default is 3) RegPreambleMsb RegPreambleLsb
			rfm69Device.RegisterManager.WriteByte(0x2C, 0x0);
			rfm69Device.RegisterManager.WriteByte(0x2D, 0x10);

			// RegSyncConfig Set the Sync length and byte values SyncOn + 3 custom sync bytes
			rfm69Device.RegisterManager.WriteByte(0x2e, 0x90);

			// RegSyncValues1 thru RegSyncValues3
			rfm69Device.RegisterManager.WriteByte(0x2f, 0xAA);
			rfm69Device.RegisterManager.WriteByte(0x30, 0x2D);
			rfm69Device.RegisterManager.WriteByte(0x31, 0xD4);

			// RegPacketConfig1 Variable length with CRC on
			rfm69Device.RegisterManager.WriteByte(0x37, 0x90);

			rfm69Device.RegisterDump();

			while (true)
			{
				// Standby mode while loading message into FIFO
				rfm69Device.RegisterManager.WriteByte(0x01, 0b00000100);

				byte[] messageBuffer = UTF8Encoding.UTF8.GetBytes("hello world " + DateTime.Now.ToLongTimeString());
				rfm69Device.RegisterManager.WriteByte(0x0, (byte)messageBuffer.Length);
				rfm69Device.RegisterManager.Write(0x0, messageBuffer);

				// Transmit mode once FIFO loaded
				rfm69Device.RegisterManager.WriteByte(0x01, 0b00001100);

				Debug.WriteLine("{0:HH:mm:ss.fff} Send-Done", DateTime.Now);

				Task.Delay(5000).Wait();
			}
		}
	}
}

I’ll modify the constructor reset pin support to see if I can get the Seegel Systeme hat working.

Register dump
Register 0x00 - Value 0X00 - Bits 00000000
Register 0x01 - Value 0X04 - Bits 00000100
Register 0x02 - Value 0X00 - Bits 00000000
Register 0x03 - Value 0X34 - Bits 00110100
…
Register 0x3e - Value 0X00 - Bits 00000000
Register 0x3f - Value 0X00 - Bits 00000000
Register 0x40 - Value 0X00 - Bits 00000000
19:58:52.828 Send-Done
19:58:53.022 RegIrqFlags 00001000
19:58:53.036 Transmit-Done
19:58:54.188 RegIrqFlags 01000110
19:58:54 Received 14 byte message Hello world:1
The thread 0xa10 has exited with code 0 (0x0).
The thread 0xf90 has exited with code 0 (0x0).
19:58:57.652 RegIrqFlags 01000110
19:58:57 Received 14 byte message Hello world:2
19:58:57.892 Send-Done
19:58:58.039 RegIrqFlags 00001000
19:58:58.053 Transmit-Done
19:59:01.115 RegIrqFlags 01000110
19:59:01 Received 14 byte message Hello world:3
19:59:02.936 Send-Done
19:59:03.083 RegIrqFlags 00001000
19:59:03.096 Transmit-Done
19:59:04.577 RegIrqFlags 01000110
19:59:04 Received 14 byte message Hello world:4
The thread 0xa5c has exited with code 0 (0x0).
19:59:08.001 Send-Done
19:59:08.122 RegIrqFlags 01001000
19:59:08.139 Transmit-Done
19:59:11.504 RegIrqFlags 01000110
19:59:11 Received 14 byte message Hello world:6
The thread 0xb18 has exited with code 0 (0x0).
19:59:13.079 Send-Done
19:59:13.226 RegIrqFlags 00001000
19:59:13.240 Transmit-Done
19:59:14.966 RegIrqFlags 01000110
19:59:14 Received 14 byte message Hello world:7

Based how my rate of progress improved when I did this on the RFM9X library I really should have done this much earlier.
