NetMF Electric Longboard Part 2

In part 1 I got the wireless WiiChuck working with a plug n play setup using a SeeedStudio Grove base shield, Wii Chuck adaptor, modified 5CM cable and FEZ Lemur. The FEZ Lemur is limited to a 5VDC supply which wasn’t going to work so well with the 6VDC output of my HobbyKing HK150 ESC without some extra electronics.

GHI Electronics also sell the FEZ Panda III which has a 6VDC-9VDC voltage range and more processing power which would be useful for my next project a dual motor longboard with traction control and anti lock braking .

I also figured vibration could be a problem for the plug n play setup so I built a custom shield for my wireless Wii Chuck dual motor longboard control using an Arduino protoshield, and a Wii-Nunchuck breakout board. The shield provides a solid mount for the wireless Wii chuck dongle and power for the NetMF board from the output of the ESC.

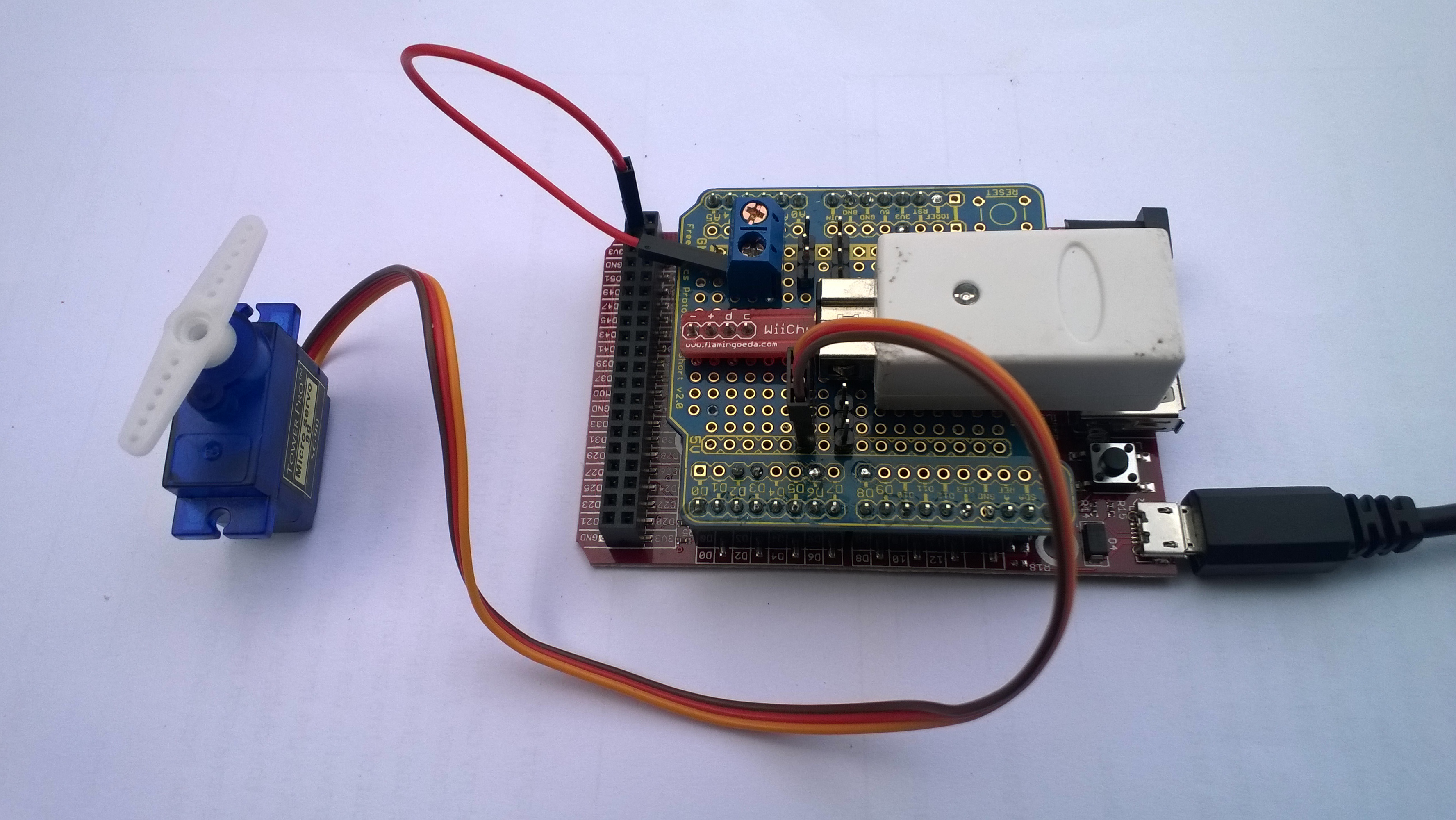

FEZ Panda III Protoshield for longboard with RC Servo for testing

FEZ Panda II Protoshield for longboard RC Servo test

I tested the shield wiring using a Radio Control (RC) Servo so the scope of disaster was greatly reduced. (The red jumper wire is supplying 3v3 to the servo for testing)

using System;
using System.Threading;
using Microsoft.SPOT;
using Microsoft.SPOT.Hardware;
using Toolbox.NETMF.Hardware;

public class Program
{
   private const int NunchukYMinimum = 0;
   private const int NunchukYMaximum = 255;
   private const int PWMPeriodMicroseconds = 20000;
   private const int DurationMinimum = 1250;
   private const int DurationMaximum = 1750;

   public static void Main()
   {
      WiiNunchuk Nunchuk = new WiiNunchuk();
      PWM pwm = new PWM(GHI.Pins.FEZPandaIII.PwmOutput.D6, PWMPeriodMicroseconds, DurationMinimum, PWM.ScaleFactor.Microseconds, false);

      pwm.Start();

      while (true)
      {
         // Reads all values
         Nunchuk.Read();

         Debug.Print(Nunchuk.AnalogStickX.ToString() + " " + Nunchuk.AnalogStickY.ToString());

         uint duration = (uint)map(Nunchuk.AnalogStickY, NunchukYMinimum, NunchukYMaximum, DurationMinimum, DurationMaximum);

         Debug.Print("Duration " + duration.ToString());
         pwm.Duration = duration;

         Thread.Sleep(100);
      }
   }

   private static long map(long x, long inputMinimum, long inputMaximum, long outputMinimum, long outputMaximum)
   {
      return (x - inputMinimum) * (outputMaximum - outputMinimum) / (inputMaximum - inputMinimum) + outputMinimum;
   }
}

I then connected the setup to my longboard ESC and it worked. (need a right angle connection for FEZ Panda III power)

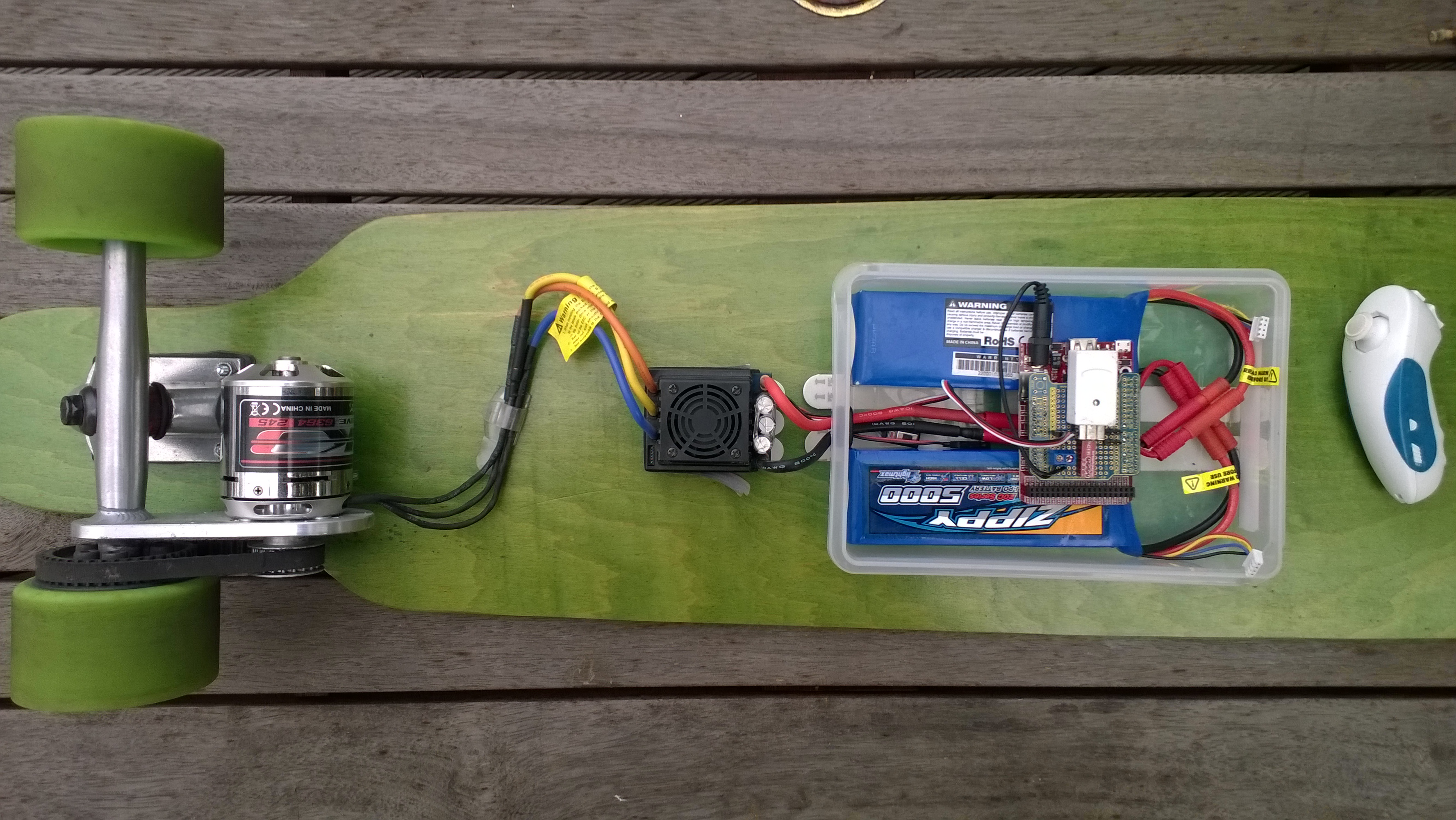

Longboard with FEZ Panda III board based controller

Longboard with FEZ Panda III board based controller

The proof of concept software worked, the next step is to add throttle mapping and failure mode handling e.g. loss of communications with the Wiichuck.

NetMF Electric Longboard Part 1

When I first built my electric longboard I started with a devicter devduino V2 running a modified version of the Wiiceiver code from AustinDavid.com. This plug n play setup has worked really well and proved quite robust considering the hostile environment it is working in.

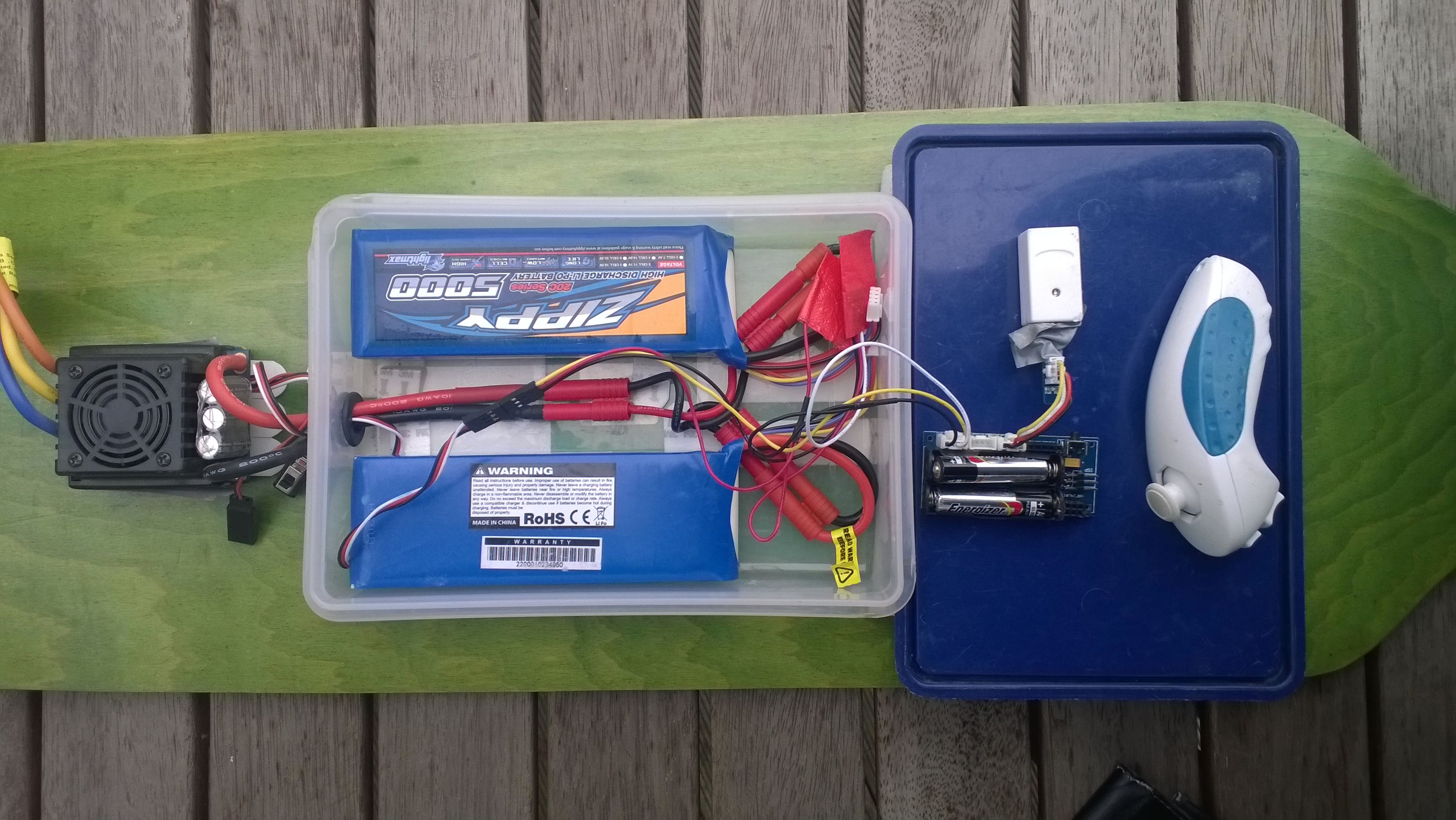

devduino V2 longboard controller, wiresless Wiichuck ESC and batteries

devduino V2 controller

I had been thinking about purchasing a dual motor kit and experimenting with traction control and anti lock braking (after a couple of close calls indoor on a tiled floor) which would require a bit more processing power.

The first version of my NetMF controller will be powered by a GHI Electronics FEZ Lemur which is an ARM Cortex M4 based System on a Chip (SoC) running at 84MHz.

The FEZ Lemur is an Arduino pinout-compatible mainboard but with the Inter-Integrated Circuit (I2C) pins on D2-Serial Data Line(SDA) and D3-Serial Clock Line (SCL).

My first proof of concept (PoC) uses a standard wii Nunchuk and some jumper wires.

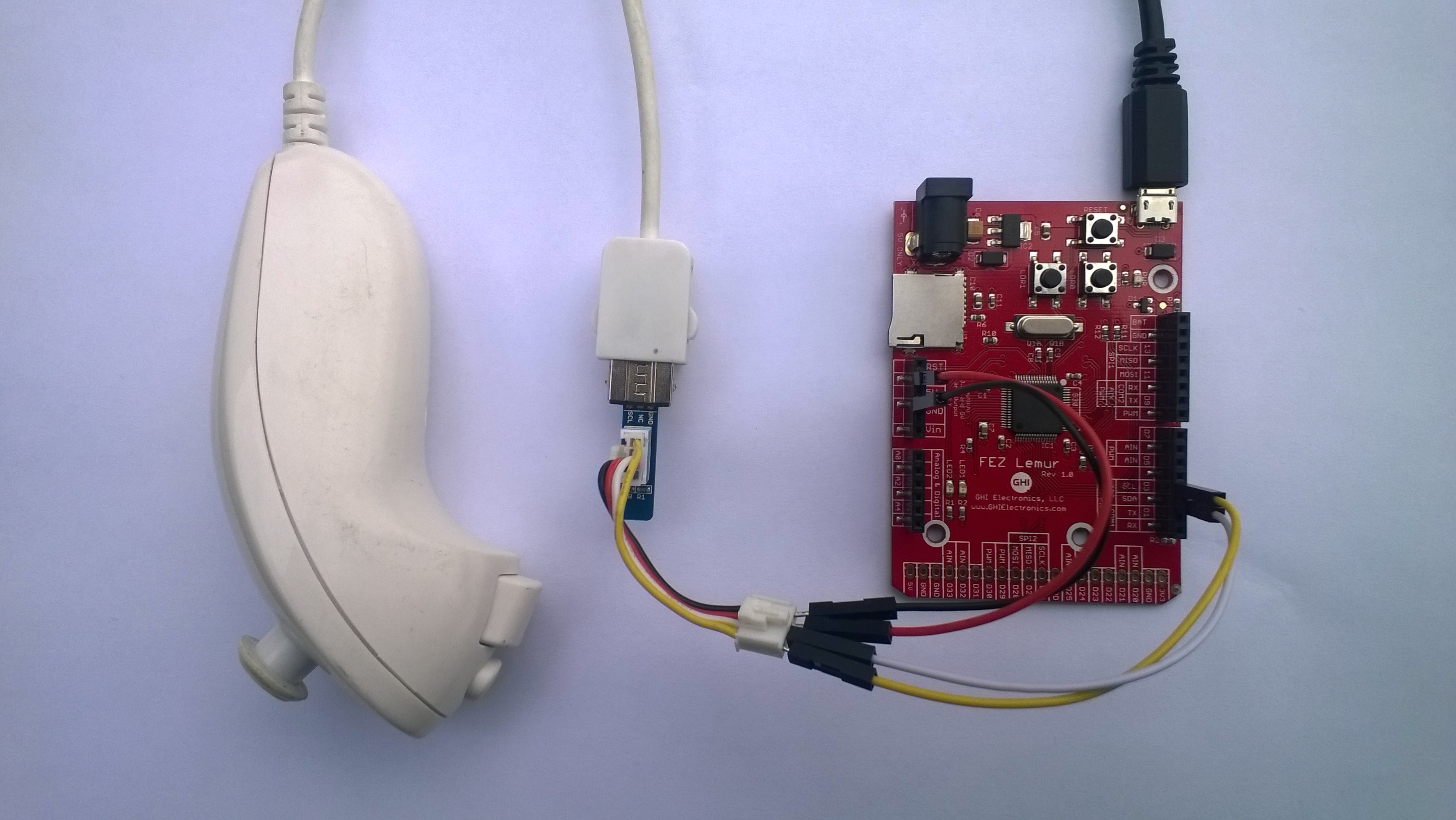

FEZ Lemur and Nunchuck connected with jumper wires and seeedstudio adaptor

FEZ Lemur Wii NunChuck interface

Bill of materials (Prices in USD as at Mar 2016)

I then tested my hardware setup with an application based on the driver software written by Szymon Kobalczyk and it worked. I have used this software on a couple of projects but have never been able to get to work with my wireless Wii Nunchuk.

I compared the Arduino wiiceiver code and the C# version and found the initialisation process was different. I then did some research and found that the WiiNunChuk driver of the .Net Micro Framework Toolbox by Stefan Thoolen used a similar approach as the wiiceiver code.

using System;
using System.Threading;
using Microsoft.SPOT;
using Toolbox.NETMF.Hardware;

public class Program
{
   public static void Main()
   {
      WiiNunchuk nunchuk = new WiiNunchuk();

      while (true)
      {
         // Reads all values
         nunchuk.Read();

         Debug.Print(nunchuk.AnalogStickX + " " + nunchuk.AnalogStickY);

         Thread.Sleep(100);
      }
   }
}

I then tried the wireless Wii NunChuk device and it worked (The tape is to stop the wireless dongle falling off due to vibration when mounted on my skateboard)

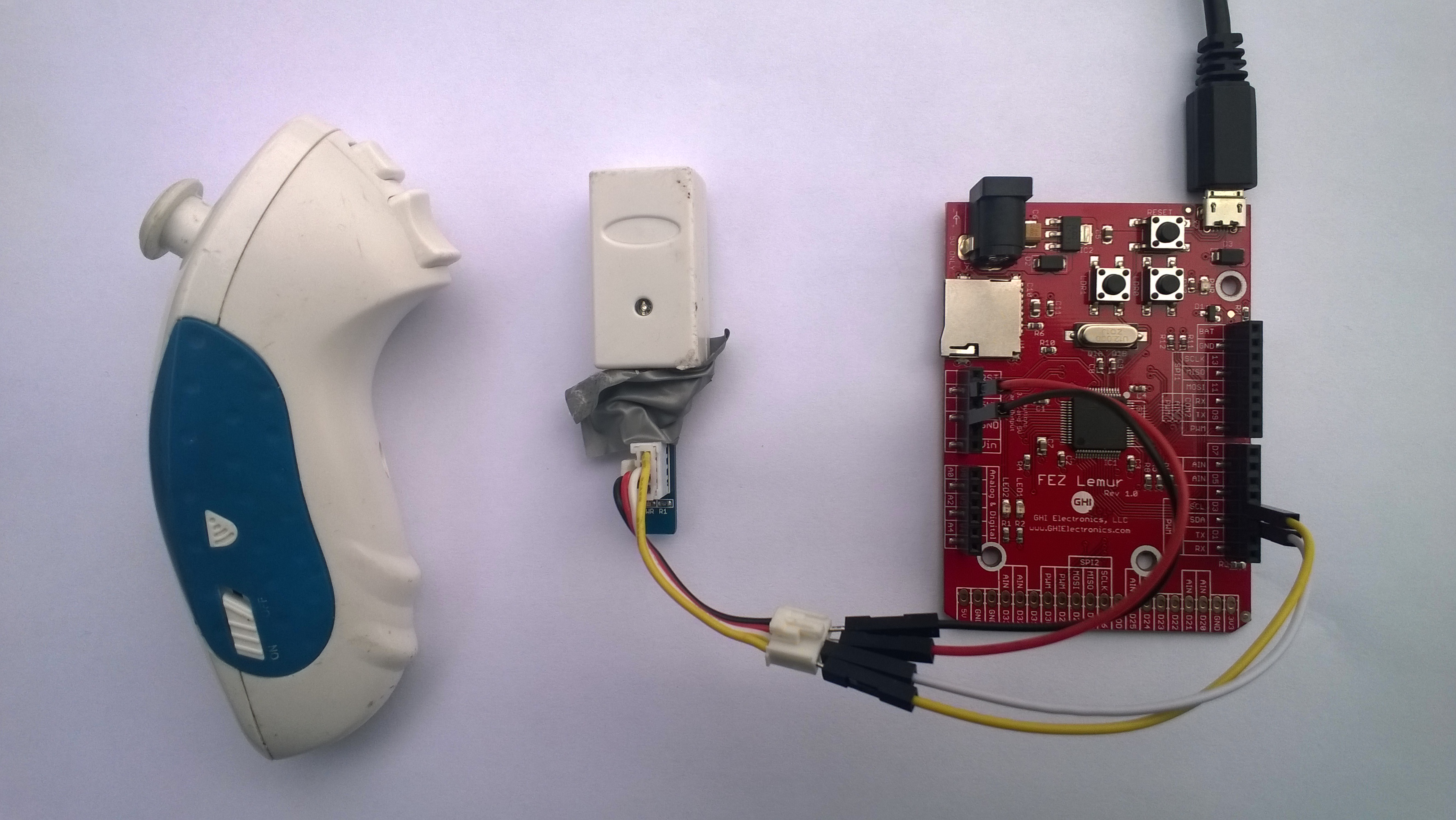

FEZ Lemur Wireless Wii NunChuck interface

FEZ Lemur Wireless Wii NunChuck interface

The PoC was working so now I needed to make it more robust and plug n play. For many of my projects I use the Seeedstudio Grove system which provides plug n play digital inputs, digital outputs, analog inputs and I2C connectivity for *duino (and other) format devices.

The Seeedstudio base shield V2 can be configured for *duino devices which implement I2C connectivity on the Analog Input pins 4 & 5 or dedicated pins SDA & SCL pins.

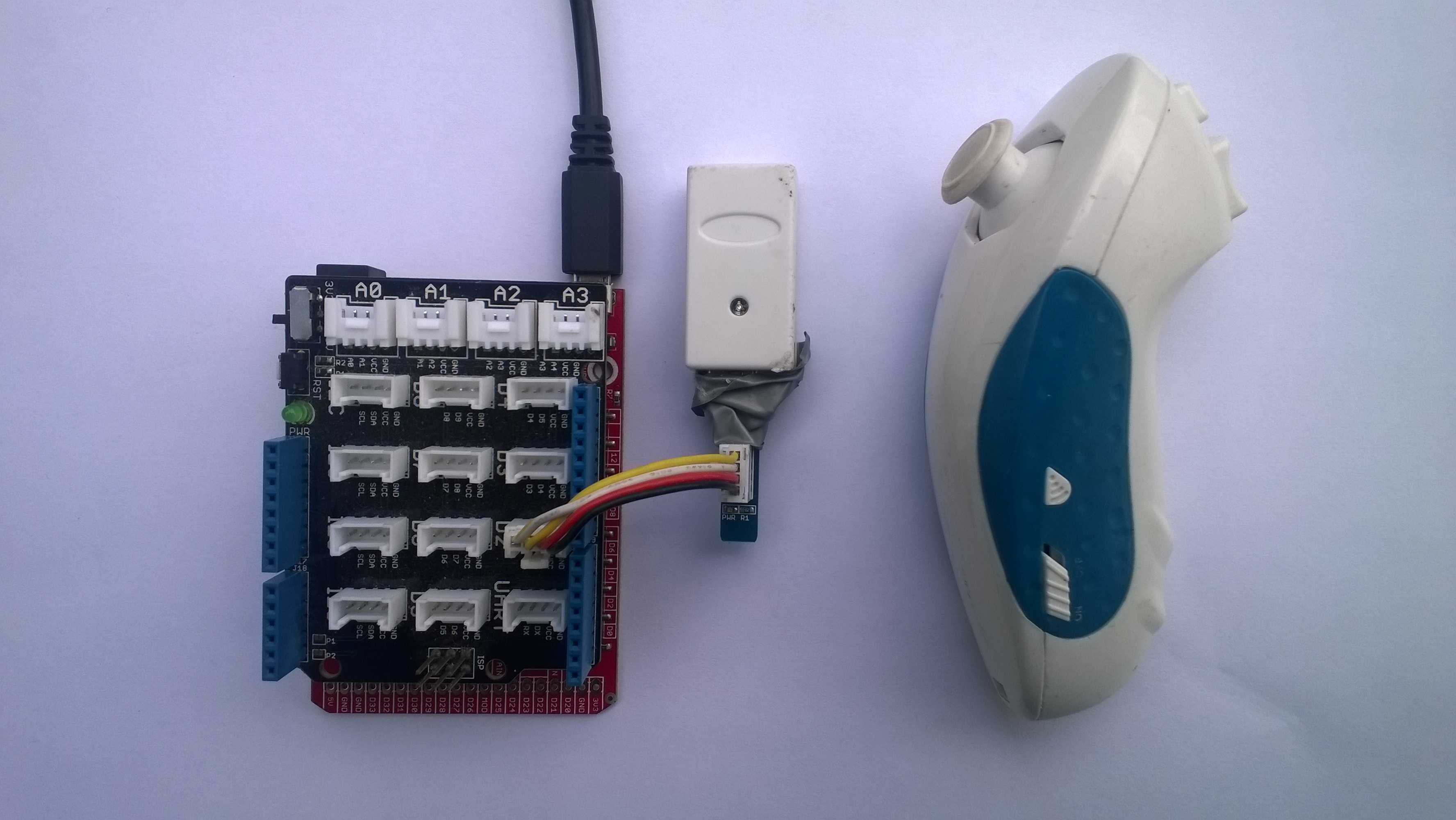

FEZ Lemur Wireless Wii NunChuck PnP interface

FEZ Lemur Wireless Wii NunChuck interface

To get the SeeedStudion Base Shield to work with my FEZ Lemur I had to put a twist in the jumper cable to get the SDA & SCL the right way round and plug it into the D2 socket.

NOTE : put some tape on the top of the MicroSD card socket to stop a accidental short circuit.

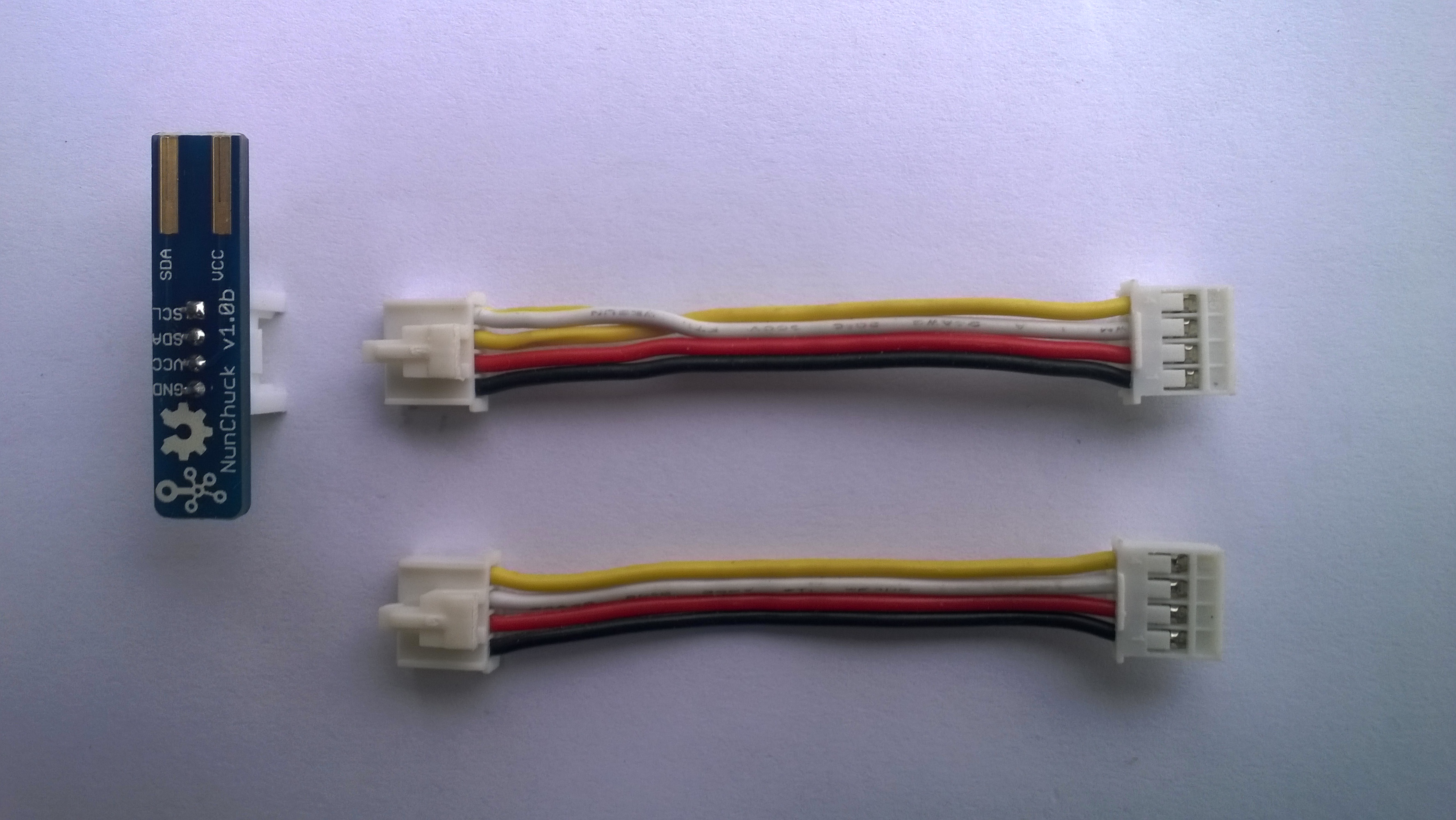

Seeedstudio 5CM cable with SDA & SCL Pins reversed.

5CM cable with SDA & SCL Pins reversed

Connecting to G30_G30...Connected
128 128
128 128
128 128
128 128
128 128
128 128
128 128
128 170
80 209
63 255
128 255
128 255
128 255
128 255
244 255
255 255
255 250
255 210
255 128
255 128
255 128
255 107
255 5
255 0
255 0
128 0
128 0
41 0
24 0
0 103
0 128
0 128
8 235
77 255
128 255
128 255
128 128
128 128

Next step is to get inerface to the 150A Electronic Speed Control(ESC) working.

Electric Longboard Annoying Squeak\Squeal

After a couple hours of riding my longboard it started making a high pitched squeak\squeal which sounded like it was coming from the brushless motor. After some investigation I found that a circlip on the end of my Turnigy Aerodrive SK3-6364-245kv Brushless motor was making the noise. The circlip usually rotates with the shaft of the motor but the motor bracket was stopping this from happening.

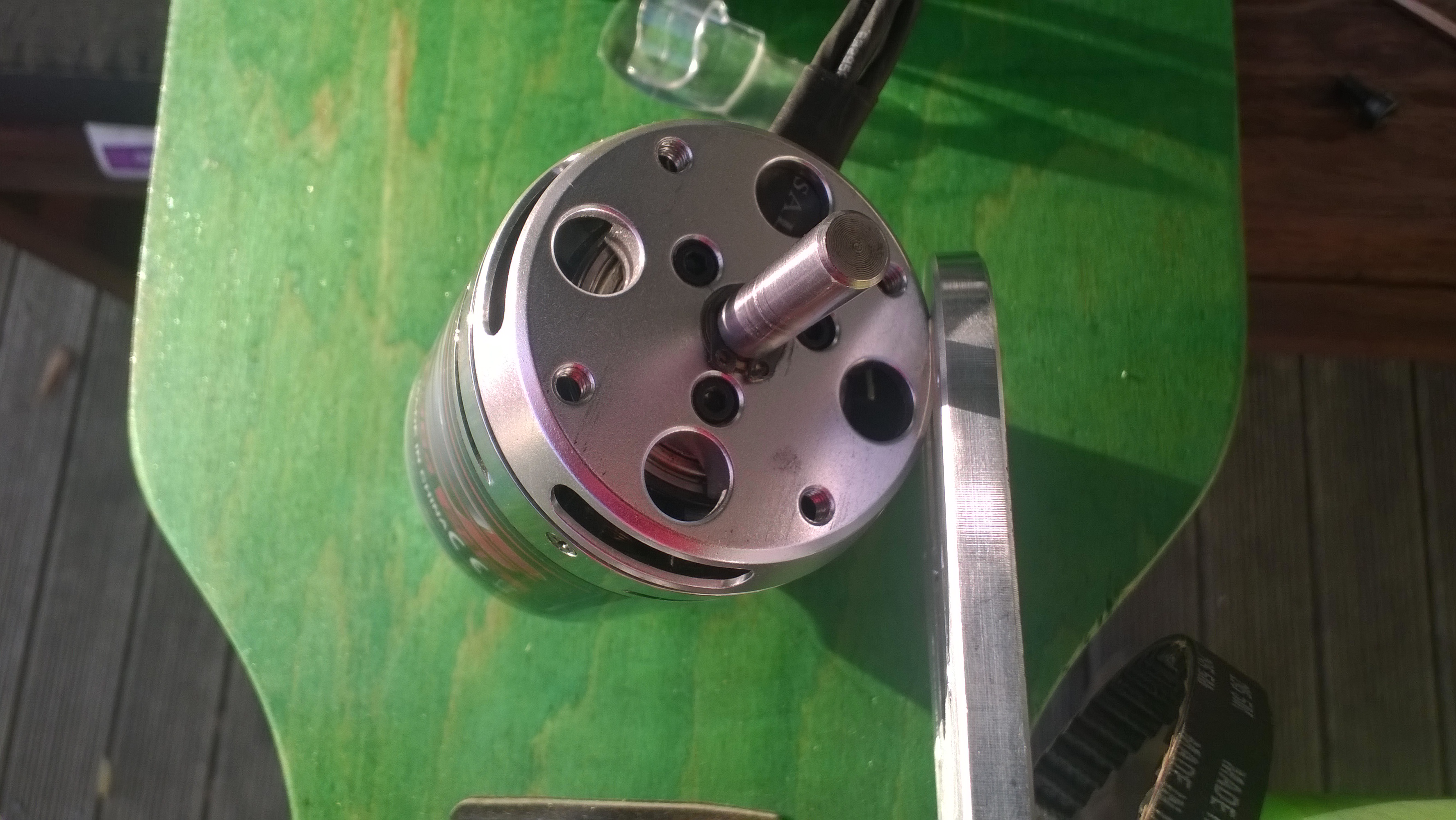

photo of circlip end of SK3 motor

Close up photo of circlip on the end of SK3 motor

I used the DIYElectricSkateboard.com website “support chat” and spoke with Dexter the very helpful owner of DIY Electric Skateboards and he suggested trying washers on the 4 x bolts which attach the motor to the bracket.

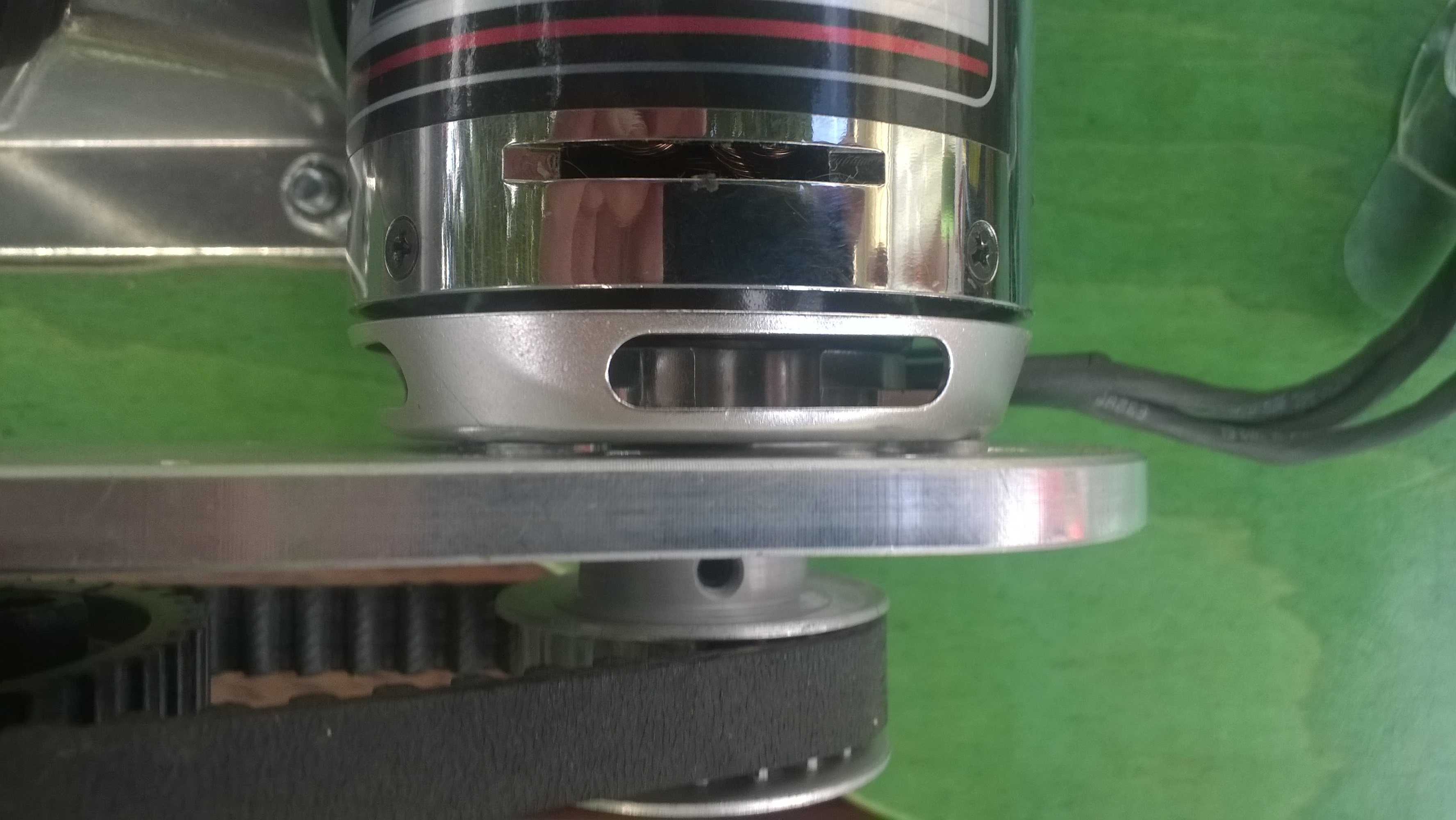

Longboard Motor Spacer

Longboard Motor with Spacers

I used 4 x M4 washers and the circlip now rotates freely which appears to have fixed the problem.

Electric Longboard devDuino V2 Controller

I really wanted to get the longboard working so I had a look at buying Wiiceiver from AustinDavid.com.

The source code is available on Github and I had a spare devicter devDuino Sensor Node V2 sitting on my desk. With some modification (changing pins numbers and removing all references to the second LED) I got the wiiceiver code running on my devDuino.

The Electronic Speed Controller(ESC) and the plastic lunch box (containing the batteries and devDuino) are attached to the deck with 3M Command adhesive strips. The first set of command adhesive strips I tried were for hanging pictures and had a Velcro quick release system. This approach was a failure and the ESC & electronics box fell off after 10-15 minutes use. The Velcro backing tape was getting pulled in the wrong direction so was unable to hold the weight of the electronics when vibration levels increased. I tried them because a “quick release” capability would be handy but I have gone back to using conventional 3M Command adhesive strips and these are working well.

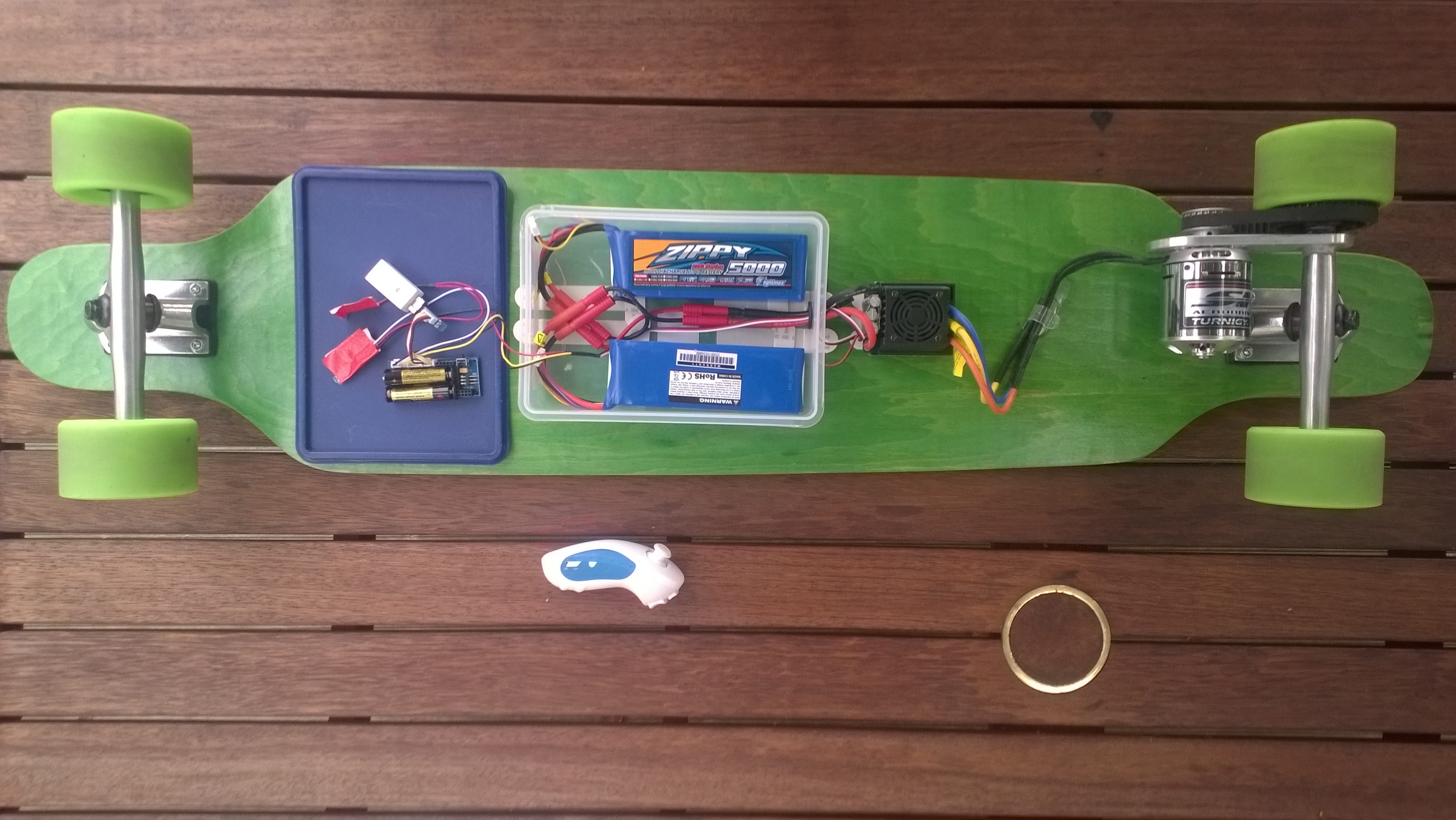

devDuino V2 and ESC on longboard

devDuino based controller interfaced with ESC and wireless WiiChuk

Initial rides went well, though I need to recalibrate the acceleration and braking ramp up/down settings to suit my hardware and riding style.

Bill of Materials for this project (Prices as at Feb 2015)

  • Single Motor Mechanical Electric Longboard Kit USD223
  • Turnigy Aerodrive SK3-6364-245kv Brushless Outrunner Motor USD70.68
  • HobbyKing 150A High Performance Brushless Car ESC USD68.99
  • ZIPPY Flightmax 5000mAh battery X 2 USD31.99 each
  • HXT4mm Battery Harness 14AWG for 2 Packs in Series USD2.43
  • HXT 4mm Gold Connector with Protector (10pcs/set)
  • devDuino Sensor Node V2 USD15.99
  • Grove Nunchuck adaptor USD2.90
  • Grove Branch Cable for Servo USD4.90
  • Wireless Nunchuck NZD25.00
  • Moose 9.5×42 Longboard Flush Mount Deck Green Stain NZD57

WARNING – Disconnect the power supply pin on the Grove Branch Cable for Servos as the ESC will supply sufficient current to make the batteries on the devDuino go pop. Wrap some tape around the other servo connector so it can’t cause a short circuit.

Thanks to Austin David for making the code for the Wiiciever open source, if anyone is interested in my code I can tidy it up and share.

/*
 * Pin IDs -- NOT LOCATIONS !!!
 * don't change these ever; see "pinLocation" below for
 * actual locations
 */
#define RED_LED_ID   0
//#define GREEN_LED_ID 1

#define ESC_PPM_ID   2
//#define ESC2_PPM_ID   6
#define ESC_GROUND 00     // hard-wired

//#define WII_POWER_ID 3
//#define WII_GROUND 00     // hard-wired

#define WII_SCL_ID   4
#define WII_SDA_ID   5

I made my devDuino look like a V3 wiiceiver

int pinLocation(int pinID) {
  int pinMap[7][3] = {
  // v1, v2, v3
    {8,   8,  9},  // RED_LED     any digital pin
    {7,   6,  8},  // GREEN_LED   any digital pin
    {10,  9,  3},  // ESC_PPM     PWM required
    {9,  11,  5},  // WII_POWER   any digital pin
    {19, 19, 19}, // WII_SCL     A5, don't change
    {18, 18, 18}, // WII_SDA     A4, don't change
    {0,  10, 0}, // ESC2_PPM    PWM required
  };

The rest of my changes were commenting out all references to the Green LED as the devDuino only has one onboard LED.

Electric Longboard First Assembly

My next project an electric motor powered longboard.

DIY longboard

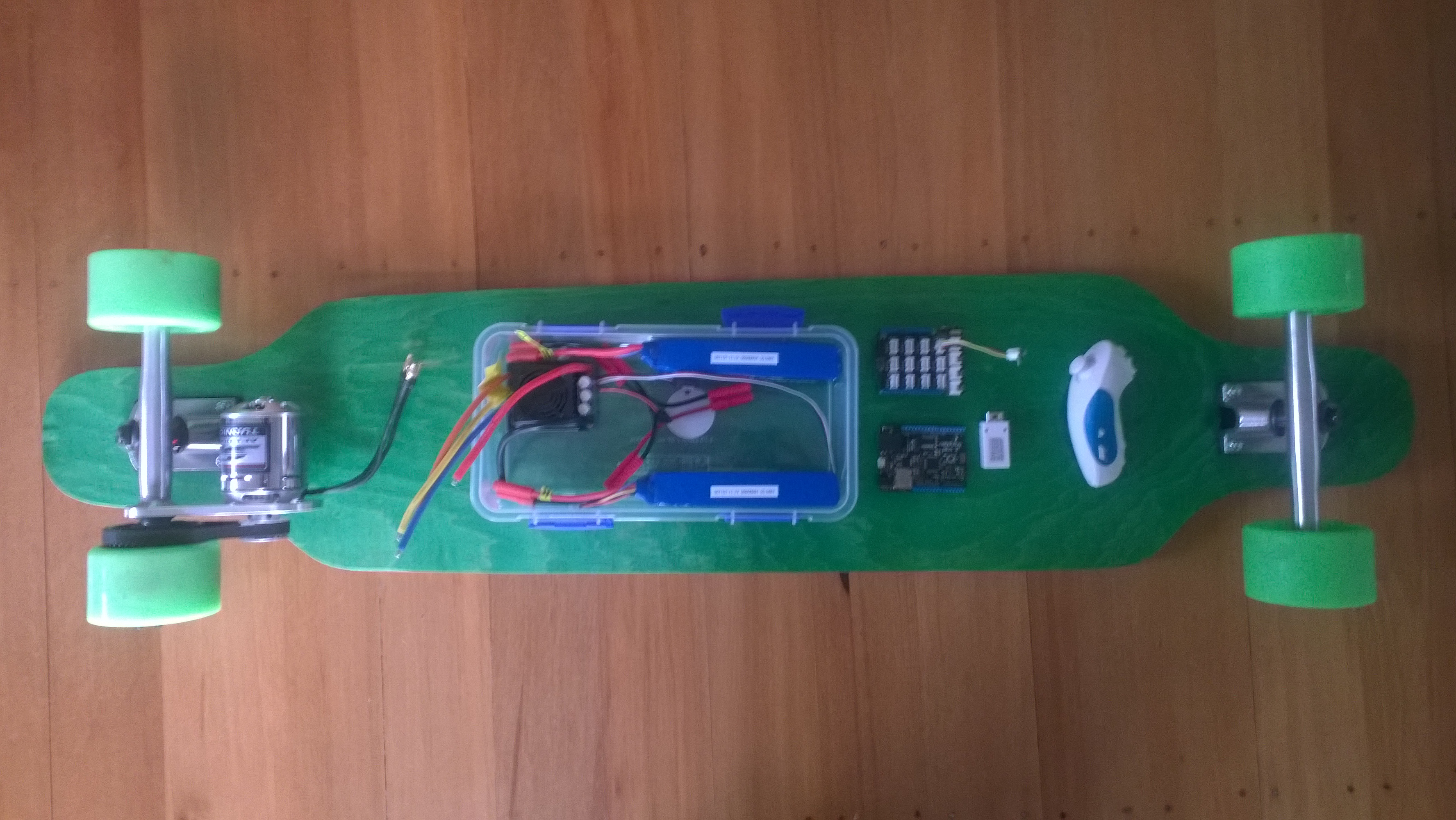

Electric Longboard Parts

Bill of Materials for this project (Prices as at Jan 2014)

  • Single Motor Mechanical Electric Longboard Kit USD223
  • Turnigy Aerodrive SK3-6364-245kv Brushless Outrunner Motor USD70.68
  • HobbyKing 150A High Performance Brushless Car ESC USD68.99
  • ZIPPY Flightmax 5000mAh battery X 2 USD31.99 each
  • HXT4mm Battery Harness 14AWG for 2 Packs in Series USD2.43
  • HXT 4mm Gold Connector with Protector (10pcs/set) USD4.44
  • Netduino 2 Plus (may replace this with a Netduino) USD59.95
  • Grove Base Shield V2 USD 8.90
  • Grove Nunchuck Adaptor USD2.90
  • Wireless Nunchuck NZD25.00
  • Moose 9.5×42 Longboard Flush Mount Deck Green Stain NZ57

Initial trials of the Wireless Nunchuck have not been very positive. As the Netduino device starts the connection to the handset is dropped. Need to do some more investigation to see if I can get this to work otherwise I will have to use a wired Nunchuck.
