.Net Meadow nRF24L01 library Part1

After debugging Windows 10 IoT Core & .NetMF nRF24L01P libraries I figured a port to a Wilderness Labs Meadow device shouldn’t be “rocket science”.

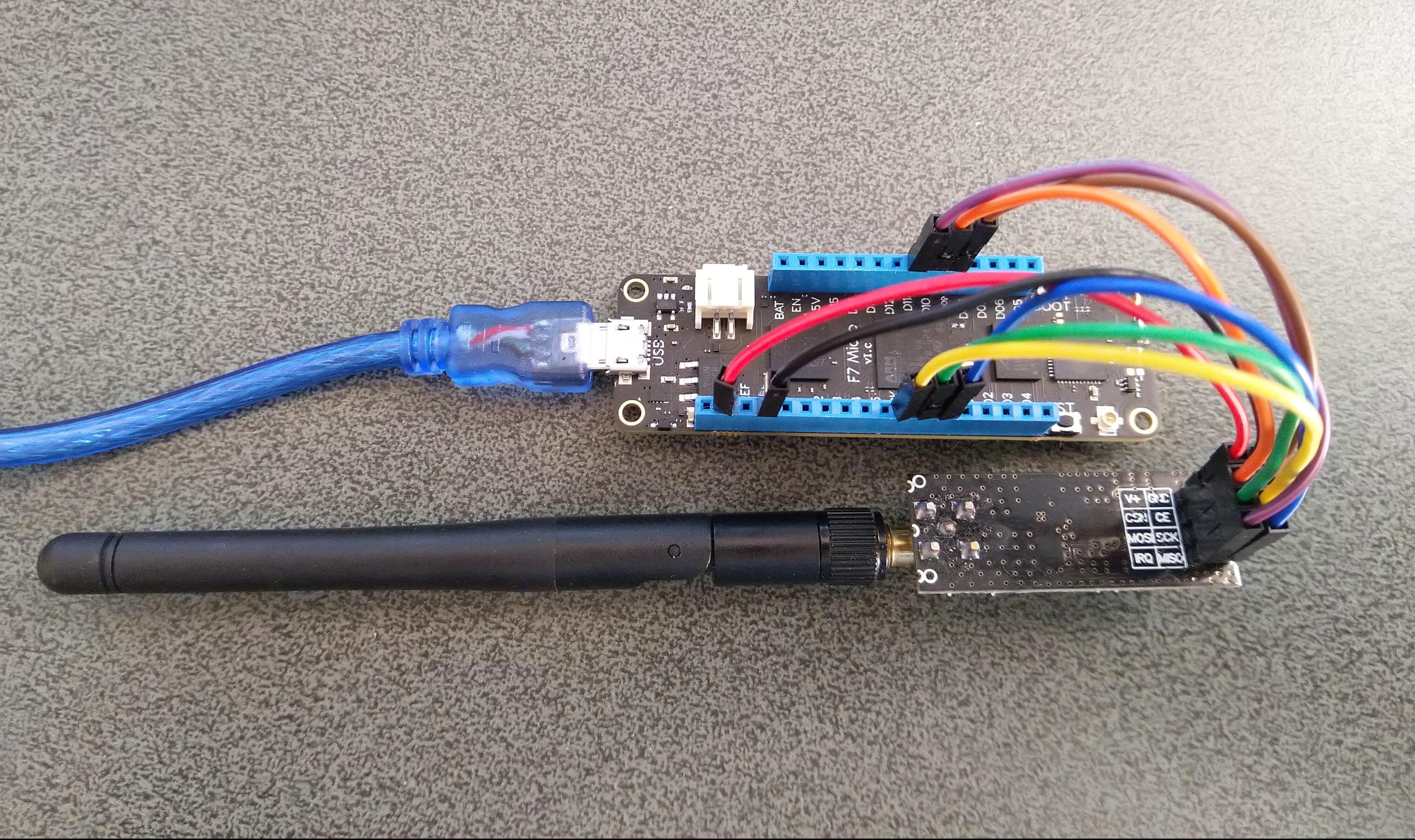

I couldn’t source an nRF24L01 feather wing so built a test rig with jumpers

nRF24L01P Test Harness
//---------------------------------------------------------------------------------
// Copyright (c) Feb 2020, devMobile Software
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
//---------------------------------------------------------------------------------
namespace devMobile.IoT.nRf24L01
{
   using System;
   using System.Text;
   using System.Threading;
   using Meadow;
   using Meadow.Devices;
   using Meadow.Hardware;

   public class MeadowApp : App<F7Micro, MeadowApp>
   {
      const byte SETUP_AW = 0x03;
      const byte RX_ADDR_P0 = 0x0A;
      const byte R_REGISTER = 0b00000000;
      const byte W_REGISTER = 0b00100000;
      ISpiBus spiBus;
      SpiPeripheral nrf24L01Device;
      IDigitalOutputPort spiPeriphChipSelect;
      IDigitalOutputPort ChipEnable;


      public MeadowApp()
      {
         ConfigureSpiPort();
         SetPipe0RxAddress("ZYXWV");
      }

      public void ConfigureSpiPort()
      {
         try
         {
            ChipEnable = Device.CreateDigitalOutputPort(Device.Pins.D09, initialState: false);
            if (ChipEnable == null)
            {
               Console.WriteLine("chipEnable == null");
            }

            var spiClockConfiguration = new SpiClockConfiguration(2000, SpiClockConfiguration.Mode.Mode0);
            spiBus = Device.CreateSpiBus(Device.Pins.SCK,
                                         Device.Pins.MOSI,
                                         Device.Pins.MISO,
                                         spiClockConfiguration);
            if (spiBus == null)
            {
               Console.WriteLine("spiBus == null");
            }

            Console.WriteLine("Creating SPI NSS Port...");
            spiPeriphChipSelect = Device.CreateDigitalOutputPort(Device.Pins.D10, initialState: true);
            if (spiPeriphChipSelect == null)
            {
               Console.WriteLine("spiPeriphChipSelect == null");
            }

            Console.WriteLine("nrf24L01Device Device...");
            nrf24L01Device = new SpiPeripheral(spiBus, spiPeriphChipSelect);
            if (nrf24L01Device == null)
            {
               Console.WriteLine("nrf24L01Device == null");
            }

            Thread.Sleep(100);

            Console.WriteLine("ConfigureSpiPort Done...");
         }
         catch (Exception ex)
         {
            Console.WriteLine("ConfigureSpiPort " + ex.Message);
         }
      }

      public void SetPipe0RxAddress(string address)
      {
         try
         {
            // Read the Address width
            byte[] txBuffer1 = new byte[] { SETUP_AW | R_REGISTER, 0x0 };
            Console.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer1));

            /*
            // Appears to work but not certain it does
            Console.WriteLine(" nrf24L01Device.WriteRead...SETUP_AW");
            byte[] rxBuffer1 = nrf24L01Device.WriteRead(txBuffer1, (ushort)txBuffer1.Length);
            Console.WriteLine(" nrf24L01Device.WriteRead...SETUP_AW");
            */

            byte[] rxBuffer1 = new byte[txBuffer1.Length];
            Console.WriteLine(" spiBus.ExchangeData...RX_ADDR_P0");
            spiBus.ExchangeData(spiPeriphChipSelect, ChipSelectMode.ActiveLow, txBuffer1, rxBuffer1);

            Console.WriteLine(" rxBuffer:" + BitConverter.ToString(rxBuffer1));

            // Extract then adjust the address width
            byte addressWidthValue = rxBuffer1[1];
            addressWidthValue &= 0b00000011;
            addressWidthValue += 2;
            Console.WriteLine("Address width 0x{0:x2} - Value 0X{1:x2} - Bits {2} Value adjusted {3}", SETUP_AW, rxBuffer1[1], Convert.ToString(rxBuffer1[1], 2).PadLeft(8, '0'), addressWidthValue);
            Console.WriteLine();

            // Write Pipe0 Receive address
            Console.WriteLine("Address write 1");
            byte[] txBuffer2 = new byte[addressWidthValue + 1];
            txBuffer2[0] = RX_ADDR_P0 | W_REGISTER;
            Array.Copy(Encoding.UTF8.GetBytes(address), 0, txBuffer2, 1, addressWidthValue);
            Console.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer2));

            Console.WriteLine(" nrf24L01Device.Write...RX_ADDR_P0");
            nrf24L01Device.WriteBytes(txBuffer2);
            Console.WriteLine();

            // Read Pipe0 Receive address
            Console.WriteLine("Address read 1");
            byte[] txBuffer3 = new byte[addressWidthValue + 1];
            txBuffer3[0] = RX_ADDR_P0 | R_REGISTER;
            Console.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer3));

            /*
            // Broken returns  Address 0x0a - RX Buffer 5A-5A-5A-5A-59-58 RX Address 5A-5A-5A-59-58 Address ZZZYX
            Console.WriteLine(" nrf24L01Device.WriteRead...RX_ADDR_P0");
            byte[] rxBuffer3 = nrf24L01Device.WriteRead(txBuffer3, (ushort)txBuffer3.Length);
            */

            byte[] rxBuffer3 = new byte[addressWidthValue + 1];
            Console.WriteLine(" spiBus.ExchangeData...RX_ADDR_P0");
            spiBus.ExchangeData(spiPeriphChipSelect, ChipSelectMode.ActiveLow, txBuffer3, rxBuffer3);

            Console.WriteLine("Address 0x{0:x2} - RX Buffer {1} RX Address {2} Address {3}", RX_ADDR_P0, BitConverter.ToString(rxBuffer3, 0), BitConverter.ToString(rxBuffer3, 1), UTF8Encoding.UTF8.GetString(rxBuffer3, 1, addressWidthValue));
         }
         catch (Exception ex)
         {
            Console.WriteLine("ReadDeviceIDDiy " + ex.Message);
         }
      }
   }
}

After lots of tinkering with SPI configuration options and trialing different methods (spiBus vs.SpiPeripheral) I can read and write my nRF24L01 device receive port address

 Creating SPI NSS Port...
 nrf24L01Device Device...
 ConfigureSpiPort Done...
  txBuffer:03-00
  spiBus.ExchangeData...RX_ADDR_P0
  rxBuffer:0E-03
 Address width 0x03 - Value 0X03 - Bits 00000011 Value adjusted 5

 Address write 1
  txBuffer:2A-5A-59-58-57-56
  nrf24L01Device.Write...RX_ADDR_P0

 Address read 1
  txBuffer:0A-00-00-00-00-00
  spiBus.ExchangeData...RX_ADDR_P0
 Address 0x0a - RX Buffer 0E-5A-59-58-57-56 RX Address 5A-59-58-57-56 Address ZYXWV

I need to investigate why the first byte of the buffer returned by nrf24L01Device.ReadBytes and nrf24L01Device.WriteRead is wrong.

AllThingsTalk with MQTTnet

As I’m testing my Message Queue Telemetry Transport(MQTT) LoRa gateway I’m building a proof of concept(PoC) .Net core console application for each IoT platform I would like to support.

This PoC was to confirm that I could connect to the AllThingsTalk MQTT API then format topics and payloads correctly.

MQTTNet Console Client

The AllThingsTalk MQTT broker, username, and device ID are required command line parameters.

namespace devmobile.Mqtt.TestClient.AllThingsTalk
{
	using System;
	using System.Diagnostics;
	using System.Threading;
	using System.Threading.Tasks;

	using MQTTnet;
	using MQTTnet.Client;
	using MQTTnet.Client.Disconnecting;
	using MQTTnet.Client.Options;
	using MQTTnet.Client.Receiving;

	using Newtonsoft.Json;
	using Newtonsoft.Json.Linq;

	class Program
	{
		private static IMqttClient mqttClient = null;
		private static IMqttClientOptions mqttOptions = null;
		private static string server;
		private static string username;
		private static string deviceID;

		static void Main(string[] args)
		{
			MqttFactory factory = new MqttFactory();
			mqttClient = factory.CreateMqttClient();

			if ((args.Length != 3))
			{
				Console.WriteLine("[MQTT Server] [UserName] [ClientID]");
				Console.WriteLine("Press <enter> to exit");
				Console.ReadLine();
				return;
			}

			server = args[0];
			username = args[1];
			deviceID = args[2];

			Console.WriteLine($"MQTT Server:{server} DeviceID:{deviceID}");

			// AllThingsTalk formatted device state update topic
			string topicD2C = $"device/{deviceID}/state";

			mqttOptions = new MqttClientOptionsBuilder()
				.WithTcpServer(server)
				.WithCredentials(username, "HighlySecurePassword")
				.WithClientId(deviceID)
				.WithTls()
				.Build();

			mqttClient.UseDisconnectedHandler(new MqttClientDisconnectedHandlerDelegate(e => MqttClient_Disconnected(e)));
			mqttClient.UseApplicationMessageReceivedHandler(new MqttApplicationMessageReceivedHandlerDelegate(e => MqttClient_ApplicationMessageReceived(e)));
			mqttClient.ConnectAsync(mqttOptions).Wait();

			// AllThingsTalk formatted device command with wildcard topic
			string topicC2D = $"device/{deviceID}/asset/+/command";

			mqttClient.SubscribeAsync(topicC2D, MQTTnet.Protocol.MqttQualityOfServiceLevel.AtLeastOnce).GetAwaiter().GetResult();

			while (true)
			{
				JObject payloadJObject = new JObject();

				double temperature = 22.0 + (DateTime.UtcNow.Millisecond / 1000.0);
				temperature = Math.Round( temperature, 1 );
				double humidity = 50 + (DateTime.UtcNow.Millisecond / 100.0);
				humidity = Math.Round(humidity, 1);

				JObject temperatureJObject = new JObject
				{
					{ "value", temperature }
				};
				payloadJObject.Add("Temperature", temperatureJObject);

				JObject humidityJObject = new JObject
				{
					{ "value", humidity }
				};
				payloadJObject.Add("Humidity", humidityJObject);

				string payload = JsonConvert.SerializeObject(payloadJObject);
				Console.WriteLine($"Topic:{topicD2C} Payload:{payload}");

				var message = new MqttApplicationMessageBuilder()
					.WithTopic(topicD2C)
					.WithPayload(payload)
					.WithAtMostOnceQoS()
//					.WithAtLeastOnceQoS()
					.Build();

				Console.WriteLine("PublishAsync start");
				mqttClient.PublishAsync(message).Wait();
				Console.WriteLine("PublishAsync finish");

				Thread.Sleep(15100);
			}
		}

		private static void MqttClient_ApplicationMessageReceived(MqttApplicationMessageReceivedEventArgs e)
		{
			Console.WriteLine($"ClientId:{e.ClientId} Topic:{e.ApplicationMessage.Topic} Payload:{e.ApplicationMessage.ConvertPayloadToString()}");
		}

		private static async void MqttClient_Disconnected(MqttClientDisconnectedEventArgs e)
		{
			Debug.WriteLine("Disconnected");
			await Task.Delay(TimeSpan.FromSeconds(5));

			try
			{
				await mqttClient.ConnectAsync(mqttOptions);
			}
			catch (Exception ex)
			{
				Debug.WriteLine("Reconnect failed {0}", ex.Message);
			}
		}
	}

The AllThingsTalk device configuration was relatively easy but I need to investigate “Gateway” functionality and configuration further.

Configuring an Asset
Configuration a watchdog to check for sensor data
Sending a command to an actuator
Processing a command on the client

The ability to look at message payloads in the Debug tab would be very helpful when working out why a payload was not being processed as expected.

Asset debug information

Overall the AllThingsTalk configuration went fairly smoothly, though I need to investigate the “Gateway” configuration and functionality further. The way that assets are name by the system could make support in my MQTT Gateway more complex.

Azure IoT Hub, Event Grid to Application Insights

For a second Proof of Concept (PoC) I wanted to upload sensor data from my MQTT LoRa Telemetry Field Gateway to an Azure IoT Hub, then using Azure EventGrid subscribe to the stream of telemetry data events, logging the payloads in Azure Application Insights (the aim was minimal code so no database etc.).

The first step was to create and deploy a simple Azure Function for unpacking the telemetry event payload.

Azure IoT Hub Azure Function Handler

Then wire the Azure function to the Microsoft.Devices.Device.Telemetry Event Type

Azure IoT Hub Event Metrics

On the Windows 10 IoT Core device in the Event Tracing Window(ETW) logging on the device I could see LoRa messages arriving and being unpacked.

Windows 10 Device ETW showing message payload

Then in Application Insights after some mucking around with code I could see in a series of Trace statements the event payload as it was unpacked.

{"id":"29108ebf-e5d5-7b95-e739-7d9048209d53","topic":"/SUBSCRIPTIONS/12345678-9012-3456-7890-123456789012/RESOURCEGROUPS/AZUREIOTHUBEVENTGRIDAZUREFUNCTION/PROVIDERS/MICROSOFT.DEVICES/IOTHUBS/FIELDGATEWAYHUB",
"subject":"devices/MQTTNetClient",
"eventType":"Microsoft.Devices.DeviceTelemetry",
"eventTime":"2020-02-01T04:30:51.427Z",
"data":
{
 "properties":{},
"systemProperties":{"iothub-connection-device-id":"MQTTNetClient","iothub-connection-auth-method":"{\"scope\":\"device\",\"type\":\"sas\",\"issuer\":\"iothub\",\"acceptingIpFilterRule\":null}",
"iothub-connection-auth-generation-id":"637149890997219611",
"iothub-enqueuedtime":"2020-02-01T04:30:51.427Z",
"iothub-message-source":"Telemetry"
},
"body":"eyJPZmZpY2VUZW1wZXJhdHVyZSI6IjIyLjUiLCJPZmZpY2VIdW1pZGl0eSI6IjkyIn0="
},
"dataVersion":"",
"metadataVersion":"1"
}
Application Insights logging with message unpacking
Application Insights logging message payload

Then in the last log entry the decoded message payload

/*
    Copyright ® 2020 Feb devMobile Software, All Rights Reserved

    MIT License

    Permission is hereby granted, free of charge, to any person obtaining a copy
    of this software and associated documentation files (the "Software"), to deal
    in the Software without restriction, including without limitation the rights
    to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
    copies of the Software, and to permit persons to whom the Software is
    furnished to do so, subject to the following conditions:

    The above copyright notice and this permission notice shall be included in all
    copies or substantial portions of the Software.

    THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
    IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
    FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
    AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
    LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
    OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
    SOFTWARE

    Default URL for triggering event grid function in the local environment.
    http://localhost:7071/runtime/webhooks/EventGrid?functionName=functionname
 */
namespace EventGridProcessorAzureIotHub
{
   using System;
   using System.IO;
   using System.Reflection;

   using Microsoft.Azure.WebJobs;
   using Microsoft.Azure.EventGrid.Models;
   using Microsoft.Azure.WebJobs.Extensions.EventGrid;

   using log4net;
   using log4net.Config;
   using Newtonsoft.Json;

   public static class Telemetry
    {
        [FunctionName("Telemetry")]
        public static void Run([EventGridTrigger]Microsoft.Azure.EventGrid.Models.EventGridEvent eventGridEvent, ExecutionContext executionContext )//, TelemetryClient telemetryClient)
        {
			ILog log = log4net.LogManager.GetLogger(System.Reflection.MethodBase.GetCurrentMethod().DeclaringType);

		   var logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
			XmlConfigurator.Configure(logRepository, new FileInfo(Path.Combine(executionContext.FunctionAppDirectory, "log4net.config")));

         log.Info($"eventGridEvent.Data-{eventGridEvent}");

         log.Info($"eventGridEvent.Data.ToString()-{eventGridEvent.Data.ToString()}");

        IotHubDeviceTelemetryEventData iOThubDeviceTelemetryEventData = (IotHubDeviceTelemetryEventData)JsonConvert.DeserializeObject(eventGridEvent.Data.ToString(), typeof(IotHubDeviceTelemetryEventData));

         log.Info($"iOThubDeviceTelemetryEventData.Body.ToString()-{iOThubDeviceTelemetryEventData.Body.ToString()}");

         byte[] base64EncodedBytes = System.Convert.FromBase64String(iOThubDeviceTelemetryEventData.Body.ToString());

         log.Info($"System.Text.Encoding.UTF8.GetString(-{System.Text.Encoding.UTF8.GetString(base64EncodedBytes)}");
      }
	}
}

Overall it took roughly half a page of code (mainly generated by a tool) to unpack and log the contents of an Azure IoT Hub EventGrid payload to Application Insights.
