ASP MVC Core V2.1 and Cross-Origin Resource Sharing

I’m working on an project for a customer which implements a number of application programming Interfaces(API) for a Single Page Application(SPA) and other clients. We are using entity tags (ETags) for versioning and the front end developers found the couldn’t access them from javascipt running in mainstream browser clients (June 2018).

The problems was understanding how Cross-Origin Resource Sharing (CORS) worked and how it interacted with our security model (API key and OAuth2.0 depending on the client)

In our scenario we first found the pre-flight check wasn’t working because in the HyperText Transfer Protocol (HTTP) OPTIONS method our X-API-KEY check was failing

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 400 Bad Request
Transfer-Encoding: chunked
Server: Kestrel
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:48:30 GMT

13
API Key is invalid.
0

So I disabled X-API-KEY validation in startup.cs

public async Task Invoke(HttpContext context)
{
   if (context.Request.Method == "OPTIONS")
   {
      await this.next.Invoke(context);
      return;
   }

   var claims = new List();
…

OPTIONS then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 404 Not Found
Server: Kestrel
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:52:20 GMT
Content-Length: 0

I then turned on CORS allowing pretty much anything

public void ConfigureServices(IServiceCollection services)
{
   services.AddCors(options =>
   {
      options.AddPolicy("CorsPolicy",
      builder => builder.AllowAnyOrigin()
         .AllowAnyMethod()
         .AllowAnyHeader()
         .AllowCredentials());
   });
   services.AddMvc();
}

public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
{
   if (env.IsDevelopment())
   {
      app.UseDeveloperExceptionPage();
   }

   TelemetryConfiguration.Active.InstrumentationKey = this.configuration.GetSection("ApplicationInsights").GetSection("InstrumentationKey").Value;

   loggerFactory.AddLog4Net();
   this.log.Info("Startup.Configure called");

   app.ApplyUserKeyValidation();
   app.UseCors("CorsPolicy");
   app.UseMvc();
   }
}

OPTIONS then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 204 No Content
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: x-api-key
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:57:33 GMT

GET then worked

GET http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 200 OK
Content-Type: application/json; charset=utf-8
ETag: 00-00-00-00-00-00-00-76
Vary: Origin,Accept-Encoding
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:57:34 GMT
Content-Length: 2216

[{"...."}}

But HEAD didn’t work

HEAD http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 400 Bad Request
Content-Length: 0
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:59:55 GMT

From the Application Insights logging and RestTest client (which I ran locally and remotely) I could see that the client side code couldn’t access the value of our eTag.  It had to be “exposed”

public void ConfigureServices(IServiceCollection services)
{
   services.AddCors(options =>
   {
      options.AddPolicy("CorsPolicy",
            builder => builder.AllowAnyOrigin()
            .AllowAnyMethod()
            .AllowAnyHeader()
            .WithExposedHeaders("etag")
            .AllowCredentials()
         );
      });
      services.AddMvc();
   }
...

GET then worked

GET http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
ETag: 00-00-00-00-00-00-00-76
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 200 OK
Transfer-Encoding: chunked
Content-Type: application/json; charset=utf-8
Content-Encoding: gzip
ETag: 00-00-00-00-00-00-00-76
Vary: Origin,Accept-Encoding
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:53:41 GMT

[{"...."}}

HEAD then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key,etag
Access-Control-Request-Method: HEAD
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 204 No Content
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: x-api-key,etag
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:57:31 GMT

HEAD http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
ETag: 00-00-00-00-00-00-00-76
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 304 Not Modified
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:57:31 GMT

I had some oddness with releasing code updates which I think was down to caching of pre-flight request responses.
Next steps tidy up the headers etc. and lock the CORS configuration down to expose the minimum necessary required for the application to work.

Azure Meetup-Budget tank of 91 IoT

The premise of my Azure Meetup presentation was could you build an interesting project on a rainy weekend afternoon with a constrained budget (tank of 91 octane petrol) and minimal soldering .

Budget

Our family car is a VW Passat V6 4Motion which has a 62 Litre tank. The driver usually doesn’t usually stop to fill up until the fuel light has been on for a bit which helped.

PetrolReceipt

Based on the most recent receipt the budget was NZD132.

Where possible I purchased parts locally (the tech equivalent of food miles) or on special.

My bill of materials (prices as at 2018-06) was on budget.

The devDuino V2.2 and nRF24L01 module were USD26.20 approx. NZD37.50 (including freight) from elecrow.

Tradeoffs

I powered my Raspberry PI with a spare cellphone charger (make sure it can supply enough current to reliably power the device).

The devDuino V2.has an ATSHA204A which provides a guaranteed unique 72-bit serial number (makes it harder to screw up provisioning devices in the field).

I use a 32G MicroSD rather than a 16G MicroSD card as I have had issued with 16G cards getting corrupted by more recent upgrades (possibly running out of space?)

The Raspberry PI shield requires a simple modification to enable interrupt driven operation.

My sample devDuino V2.2 client uses an external temperature and humidity sensor, modifying this code to use the onboard temperature sensor an MCP9700 will be covered in another post.

The devDuino V2 is a little bit cheaper USD15.99 NZD37.31, has the same onboard temperature sensor as the V2.2 but no unique serial number chip.

The devDuino V4.0 has an onboard HTU21D temperature + humidity sensor but no unique serial number and the batteries are expensive.

The code and deployment instructions for the nRF24L01 field gateway applications for AdaFruit.IO and Azure IoT Hub/Azure IoT Central are available on hackster.IO.

RPiWithnRF24Plate

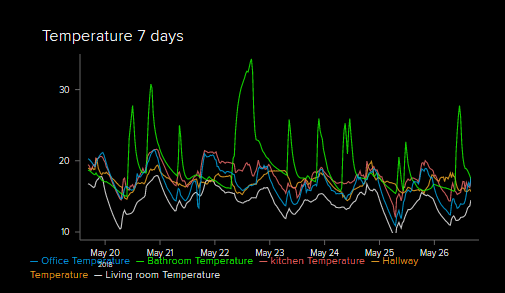

AdaFruit.IO has free and USD10.00/month options which work well for many hobbyist projects.

AdaFruitIO
