Security Camera Azure IoT Hub Image upload

The final two projects of this series both upload images to the Azure Storage account associated with an Azure IoT Hub. One project uses a Timer to upload pictures with a configurable delay. The other uploads an image every time a General Purpose Input Output(GPIO) pin on the Raspberry PI3 is strobed.

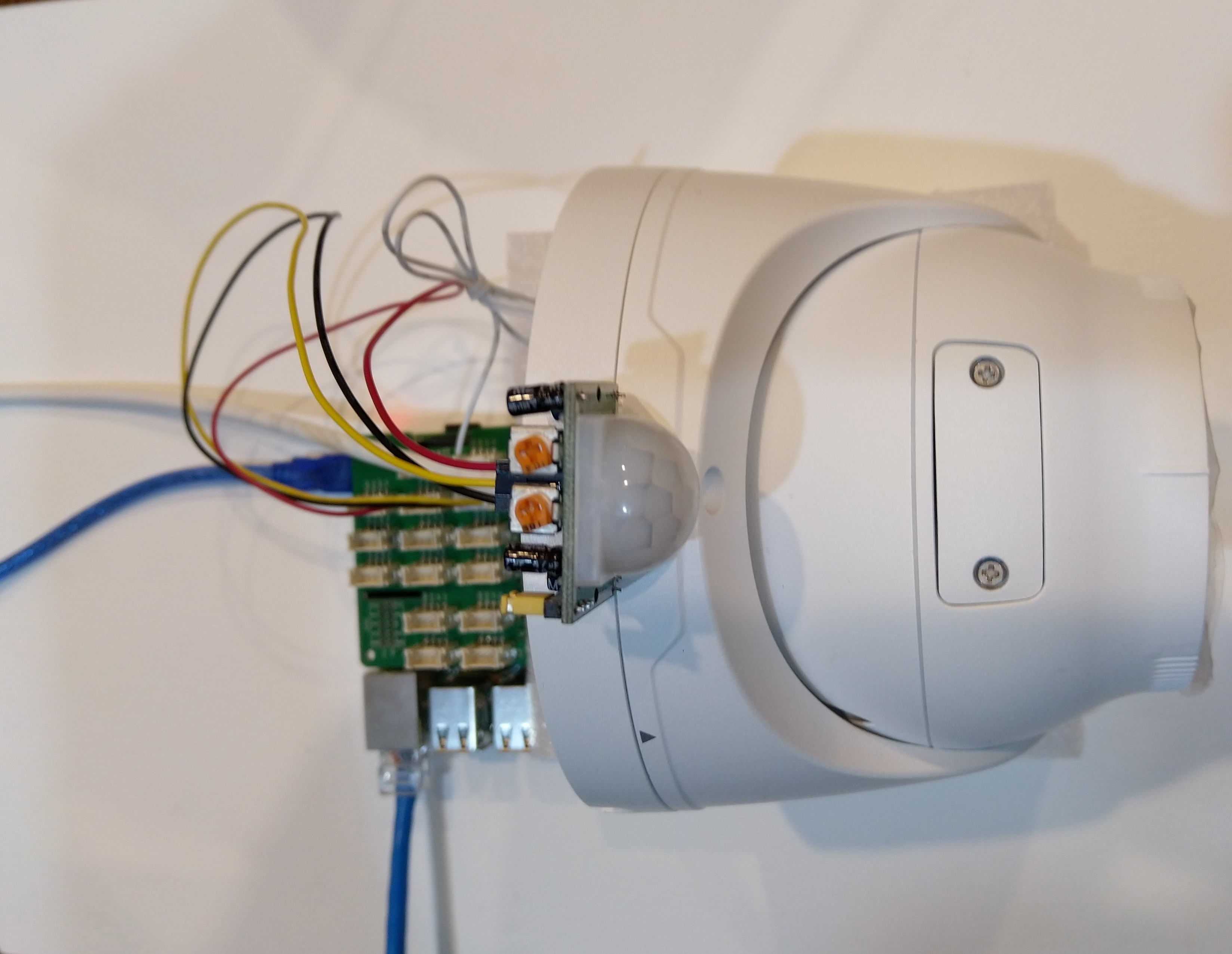

Uniview IPC3635SB-ADZK-I0 Security camera test rig with Raspberry PI and PIR motion detector

I tried to keep the .Net Core 5 console applications as simple as possible, they download an image from the camera “snapshot” endpoint (In this case http://10.0.0.47:85/images/snapshot.jpg), save it to the local filesystem and then upload it.

The core of the two applications is the “upload” image method, which is called by a timer or GPIO pin EventHandler

private static async void ImageUpdateTimerCallback(object state)
{
	CommandLineOptions options = (CommandLineOptions)state;
	DateTime requestAtUtc = DateTime.UtcNow;

	// Just incase - stop code being called while retrival of the photo already in progress
	if (cameraBusy)
	{
		return;
	}
	cameraBusy = true;

	Console.WriteLine($"{requestAtUtc:yy-MM-dd HH:mm:ss} Image up load start");

	try
	{
		// First go and get the image file from the camera onto local file system
		using (var client = new WebClient())
		{
			NetworkCredential networkCredential = new NetworkCredential()
			{
				UserName = options.UserName,
				Password = options.Password
			};

			client.Credentials = networkCredential;

			await client.DownloadFileTaskAsync(new Uri(options.CameraUrl), options.LocalFilename);
		}

		// Then open the file ready to stream ito upto storage account associated with Azuure IoT Hub
		using (FileStream fileStreamSource = new FileStream(options.LocalFilename, FileMode.Open))
		{
			var fileUploadSasUriRequest = new FileUploadSasUriRequest
			{
				BlobName = string.Format("{0:yyMMdd}/{0:yyMMddHHmmss}.jpg", requestAtUtc)
			};

			// Get the plumbing sorted for where the file is going in Azure Storage
			FileUploadSasUriResponse sasUri = await azureIoTCentralClient.GetFileUploadSasUriAsync(fileUploadSasUriRequest);
			Uri uploadUri = sasUri.GetBlobUri();

			try
			{
				var blockBlobClient = new BlockBlobClient(uploadUri);

				var response = await blockBlobClient.UploadAsync(fileStreamSource, new BlobUploadOptions());

				var successfulFileUploadCompletionNotification = new FileUploadCompletionNotification()
				{
					// Mandatory. Must be the same value as the correlation id returned in the sas uri response
					CorrelationId = sasUri.CorrelationId,

					// Mandatory. Will be present when service client receives this file upload notification
					IsSuccess = true,

					// Optional, user defined status code. Will be present when service client receives this file upload notification
					StatusCode = 200,

					// Optional, user-defined status description. Will be present when service client receives this file upload notification
					StatusDescription = "Success"
				};

				await azureIoTCentralClient.CompleteFileUploadAsync(successfulFileUploadCompletionNotification);
			}
			catch (Exception ex)
			{
				Console.WriteLine($"Failed to upload file to Azure Storage using the Azure Storage SDK due to {ex}");

				var failedFileUploadCompletionNotification = new FileUploadCompletionNotification
				{
					// Mandatory. Must be the same value as the correlation id returned in the sas uri response
					CorrelationId = sasUri.CorrelationId,

					// Mandatory. Will be present when service client receives this file upload notification
					IsSuccess = false,

					// Optional, user-defined status code. Will be present when service client receives this file upload notification
					StatusCode = 500,

					// Optional, user defined status description. Will be present when service client receives this file upload notification
					StatusDescription = ex.Message
				};

				await azureIoTCentralClient.CompleteFileUploadAsync(failedFileUploadCompletionNotification);
			}
		}

		TimeSpan uploadDuration = DateTime.UtcNow - requestAtUtc;

		Console.WriteLine($"{requestAtUtc:yy-MM-dd HH:mm:ss} Image up load done. Duration:{uploadDuration.TotalMilliseconds:0.} mSec");
	}
	catch (Exception ex)
	{
		Console.WriteLine($"Camera image upload process failed {ex.Message}");
	}
	finally
	{
		cameraBusy = false;
	}
}

I have used Azure DeviceClient UploadToBlobAsync in other projects and it was a surprise to see it deprecated and replaced with GetFileUploadSasUriAsync and GetBlobUri with sample code from the development team.

string blobName = string.Format("{0:yyMMdd}/{0:yyMMddHHmmss}.jpg", requestAtUtc);

azureIoTCentralClient.UploadToBlobAsync(blobName, fileStreamSource);

It did seem to take a lot of code to implement what was previously a single line (I’m going try and find out why this method has been deprecated)

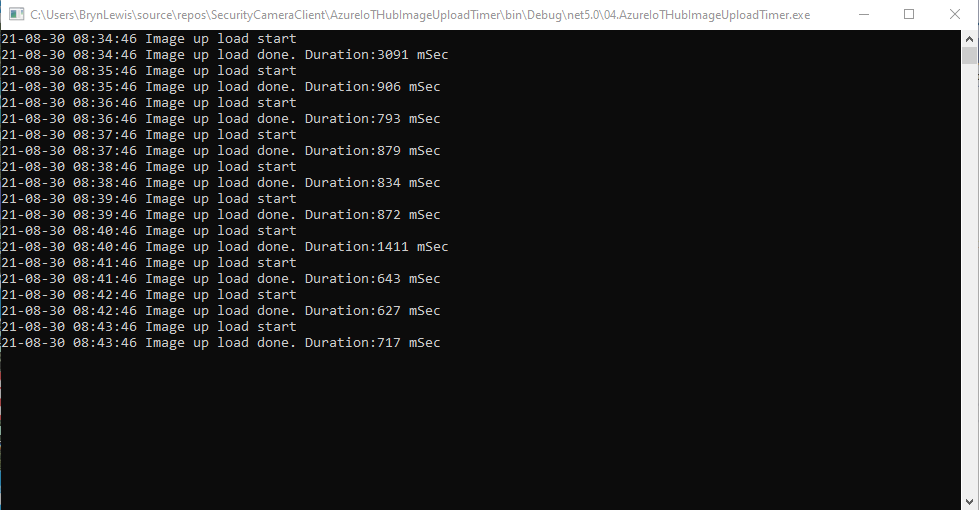

TImer application image uploader

Using Azure Storage Explorer I could view and download the images uploaded by the application(s) running on my development machine and Raspberry PI

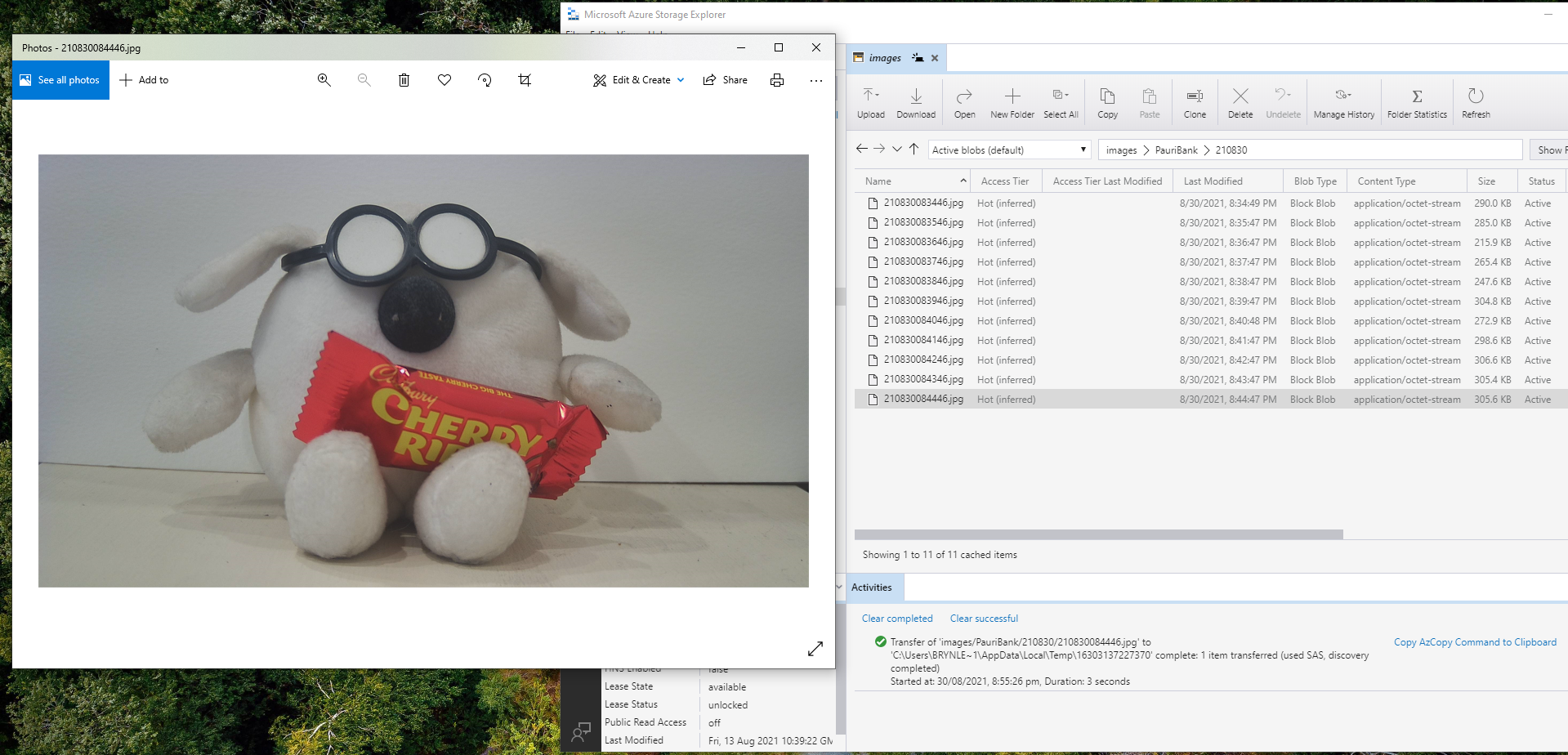

Azure Storage Displaying most recent image uploaded by a RaspberryPI device

After confirming the program was working I used the excellent RaspberryDebugger to download the application and debug it on my Raspberry PI 3 running the Raspberry PI OS.

Now that the basics are working my plan is to figure out how to control the camera using Azure IoT Hub method calls, display live Real Time Streaming Protocol(RTSP) using Azure IoT Hub Device Streams, upload images to Azure Cognitive Services for processing and use ML.Net to process them locally.

Security Camera ONVIF Capabilities

The ONVIF specification standardises the network interface (the network layer) of network video products. It defines a communication framework based on relevant IETF and Web Services standards including security and IP configuration requirements.

After discovering a device the next step was to query it to determine its capabilities. I had some issues with .Net Core 5 application configuring the Windows Communication Foundation(WCF) to use Digest authentication (RFC2617) credentials on all bar the device management service client.

This .Net Core 5 console application queries the device management service (ONVID application programmers guide) to get the capabilities of the device then calls the media, imaging and pan tilt zoom services and displays the results.

I generated the client services using the Microsoft WCF Web Service Reference Provider.

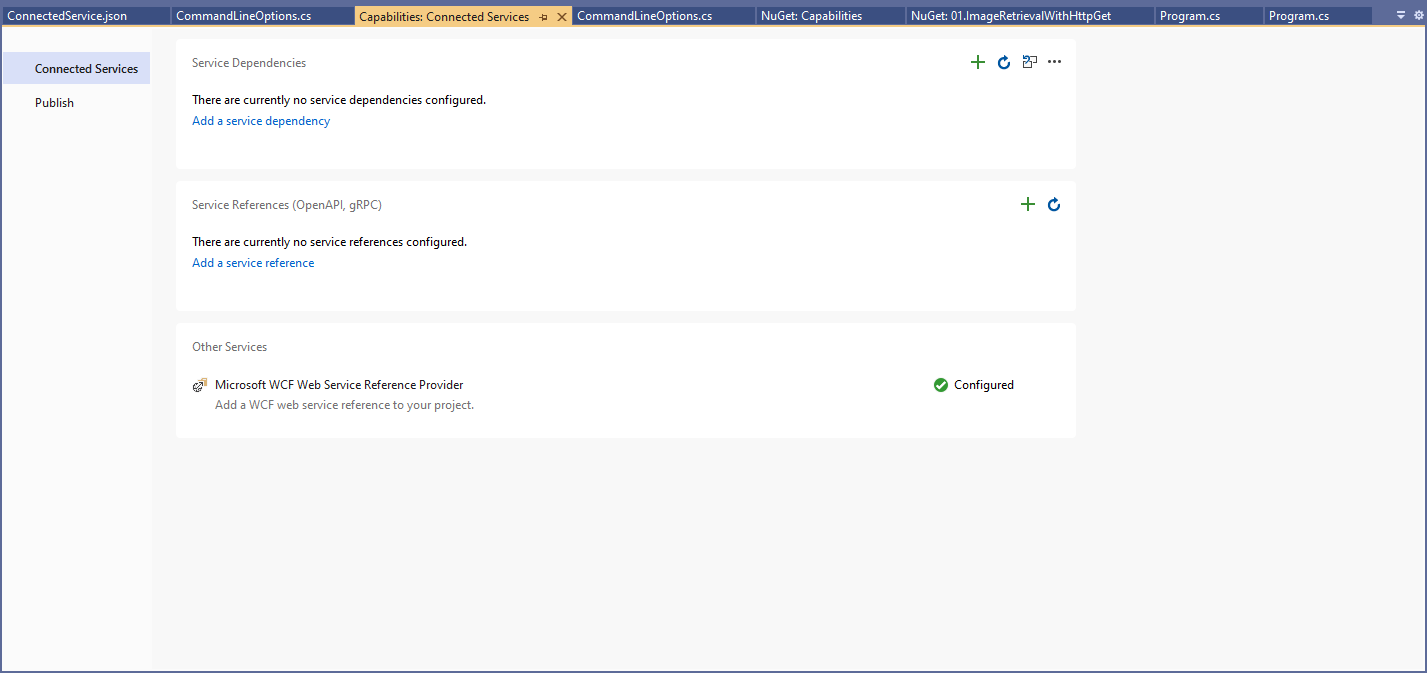

Connected Services management dialog

The Uniform Resource Locators(URL) and namespace prefixes for each generated service are configured in the ConnectedService.json file.

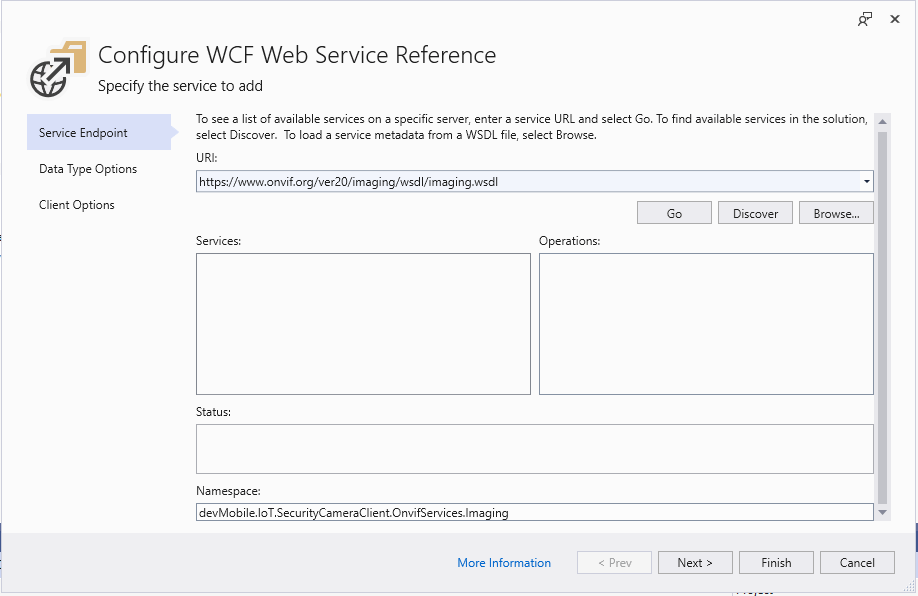

First step configuring a WCF Service

Initially I used a devMobile.IoT.SecurityCameraClient prefix but after some experimentation changed to OnvifServices.

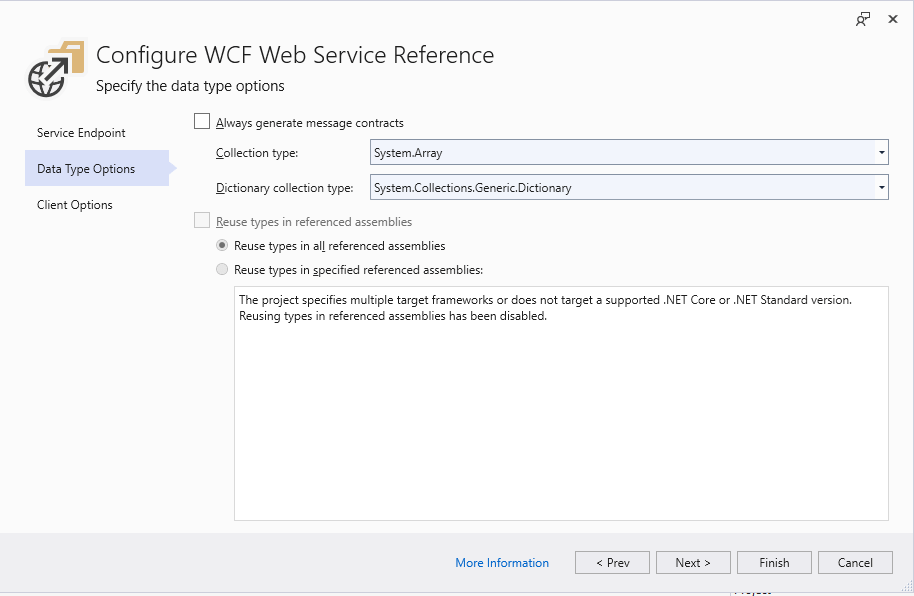

Second step configuring a WCF Service

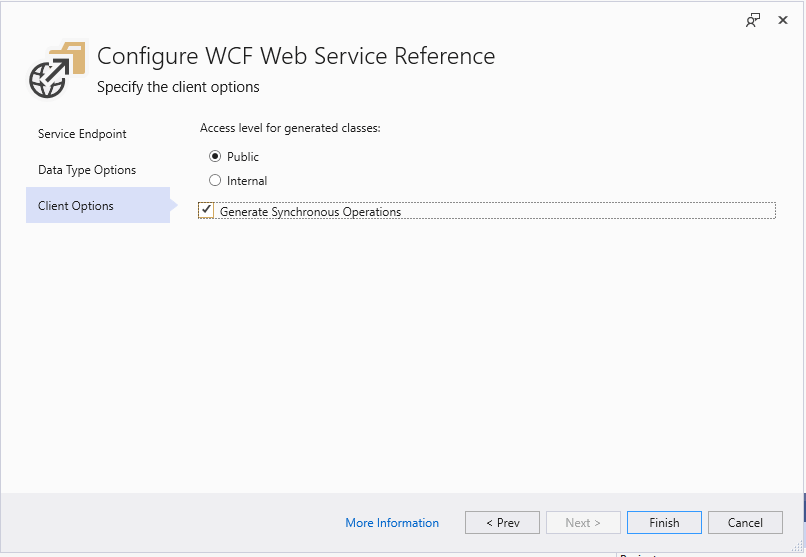

For testing I selected “Generated Synchronous Operations” as they are easier to use in a console application while exploring the available functionality.

Third step configuring a WCF Service

The WSDL generated a number of warnings so I inspected the WSDL to see if the were easy to fix. I did consider copying the WSDL to my development box but it didn’t appear to be worth the effort.

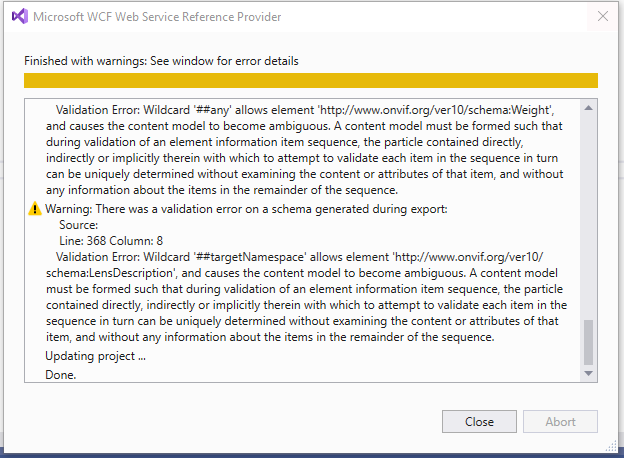

SVCUtil warning messages about invalid Onvif WSDL

For this application I’m using the CommandLineParser NuGet package to parse and validate the client, username and password configured in the debugger tab.

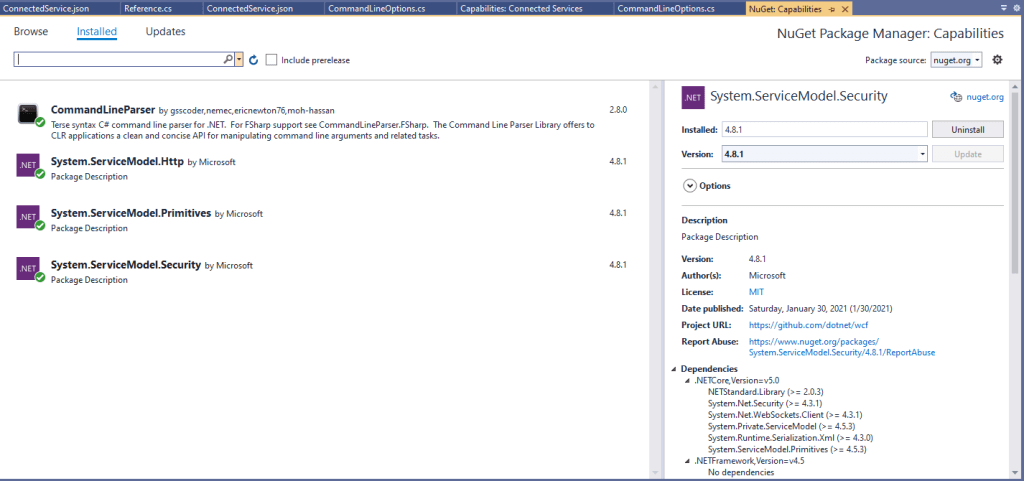

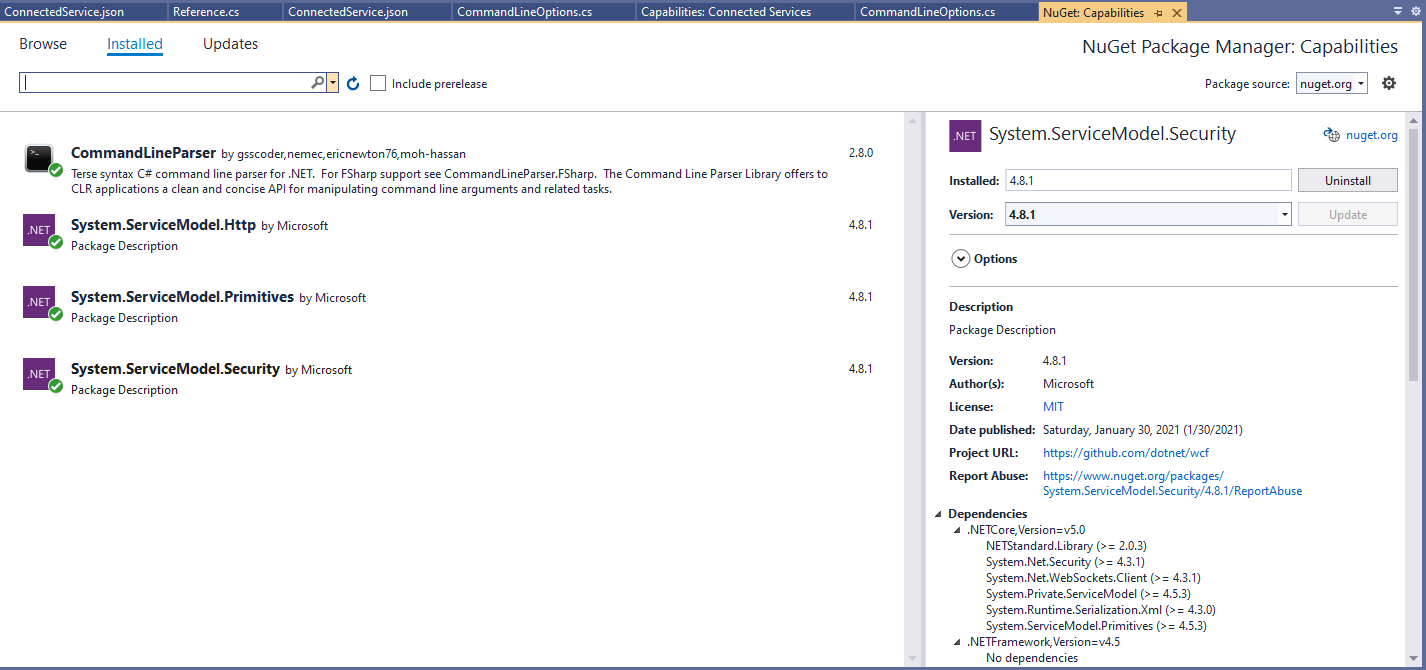

Required Nuget packages
private static async Task ApplicationCore(CommandLineOptions options)
{
   Device deviceClient;
   ImagingPortClient imagingPortClient;
   MediaClient mediaClient;
   PTZClient panTiltZoomClient;

   var messageElement = new TextMessageEncodingBindingElement()
   {
      MessageVersion = MessageVersion.CreateVersion(EnvelopeVersion.Soap12, AddressingVersion.None),
      WriteEncoding = Encoding.UTF8
    };

    HttpTransportBindingElement httpTransportNoPassword = new HttpTransportBindingElement();
    CustomBinding bindingHttpNoPassword = new CustomBinding(messageElement, httpTransportNoPassword);

    HttpTransportBindingElement httpTransport = new HttpTransportBindingElement()
    {
       AuthenticationScheme = AuthenticationSchemes.Digest
    };
    CustomBinding bindingHttpPassword = new CustomBinding(messageElement, httpTransport);

    try
    {
       // Setup the imaging porting binding, use TLS, and ignore certificate errors
       deviceClient = new DeviceClient(bindingHttpNoPassword, new EndpointAddress($"http://{options.CameraUrl}/onvif/devicemgmt"));

       GetCapabilitiesResponse capabilitiesResponse = await deviceClient.GetCapabilitiesAsync(new GetCapabilitiesRequest(new CapabilityCategory[] { CapabilityCategory.All }));

       Console.WriteLine("Device capabilities");
       Console.WriteLine($"  Device: {capabilitiesResponse.Capabilities.Device.XAddr}");
       Console.WriteLine($"  Events: {capabilitiesResponse.Capabilities.Events.XAddr}"); // Not interested in events for V1
       Console.WriteLine($"  Imaging: {capabilitiesResponse.Capabilities.Imaging.XAddr}");
       Console.WriteLine($"  Media: {capabilitiesResponse.Capabilities.Media.XAddr}");
       Console.WriteLine($"  Pan Tilt Zoom: {capabilitiesResponse.Capabilities.PTZ.XAddr}");
       Console.WriteLine();
       ...
       Console.WriteLine($"Video Source Configuration");
       foreach (OnvifServices.Media.VideoSourceConfiguration videoSourceConfiguration in videoSourceConfigurations.Configurations)
      {
         Console.WriteLine($" Name: {videoSourceConfiguration.Name}");
         Console.WriteLine($" Token: {videoSourceConfiguration.token}");
         Console.WriteLine($" UseCount: {videoSourceConfiguration.UseCount}");
         Console.WriteLine($" Bounds: {videoSourceConfiguration.Bounds.x}:{videoSourceConfiguration.Bounds.y} {videoSourceConfiguration.Bounds.width}:{videoSourceConfiguration.Bounds.height}");
         Console.WriteLine($" View mode: {videoSourceConfiguration.ViewMode}");
      }
   }
   catch (Exception ex)
   {
      Console.WriteLine(ex.Message);
   }

   Console.WriteLine();
   Console.WriteLine("Press <enter> to exit");
   Console.ReadLine();
}

I had to do a bit of “null checking” as often if a feature wasn’t supported the root node was null. I need to get a selection of cameras (especially one with pan/tilt/zoom) to check that I’m processing the responses from the device correctly.

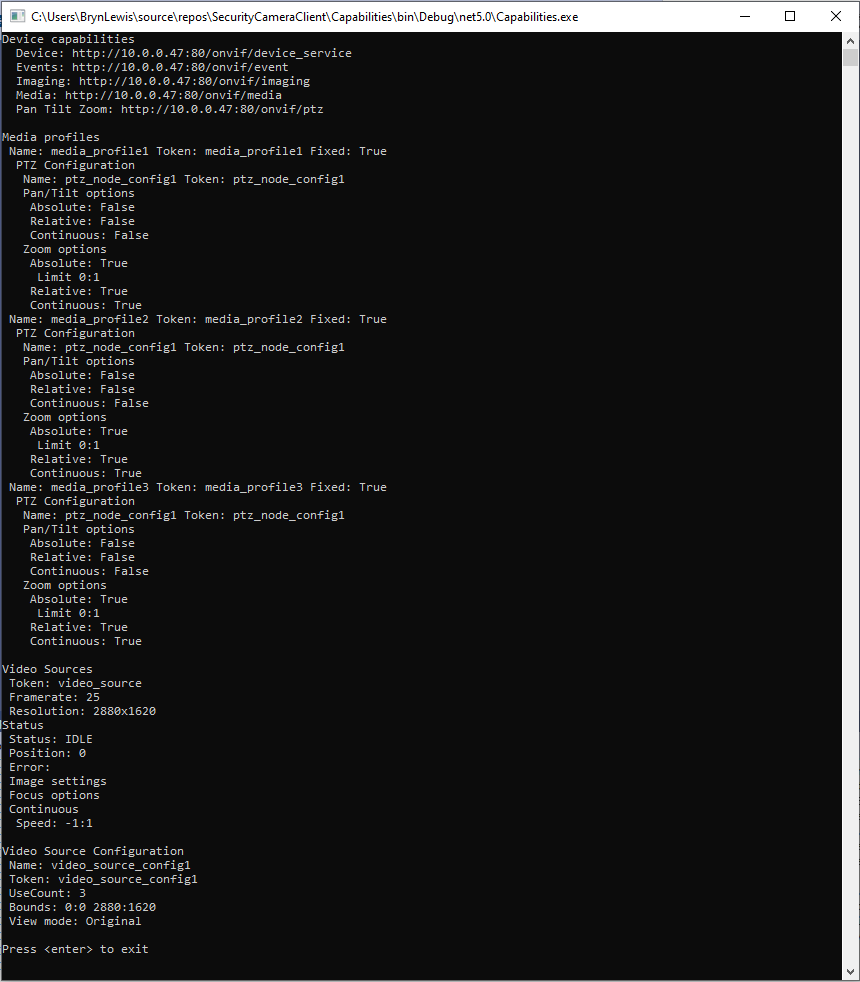

Console application output showing capabilities of Uniview device

After confirming the program was working on my development box I used the excellent RaspberryDebugger to download the application and run it on a Raspberry PI 3 running the Raspberry PI OS.

Security Camera ONVIF Discovery

The ONVIF specification standardises the network interface (the network layer) of network video products. It defines a communication framework based on relevant IETF and Web Services standards including security and IP configuration requirements. ONVIF uses Web Services Dynamic Discovery (WS-Discovery) to locate devices on the local network which operates over UDP port 3702 and uses IP multicast address 239.255.255.250.

The first issue was that WS-Discovery is not currently supported by the .Net Core Windows Communication Foundation(WCF) implementation CoreWCF(2021-08). So I built a proof of concept(PoC) client which used UDP to send and receive XML messages (WS-Discovery specification) to “probe” the local network.

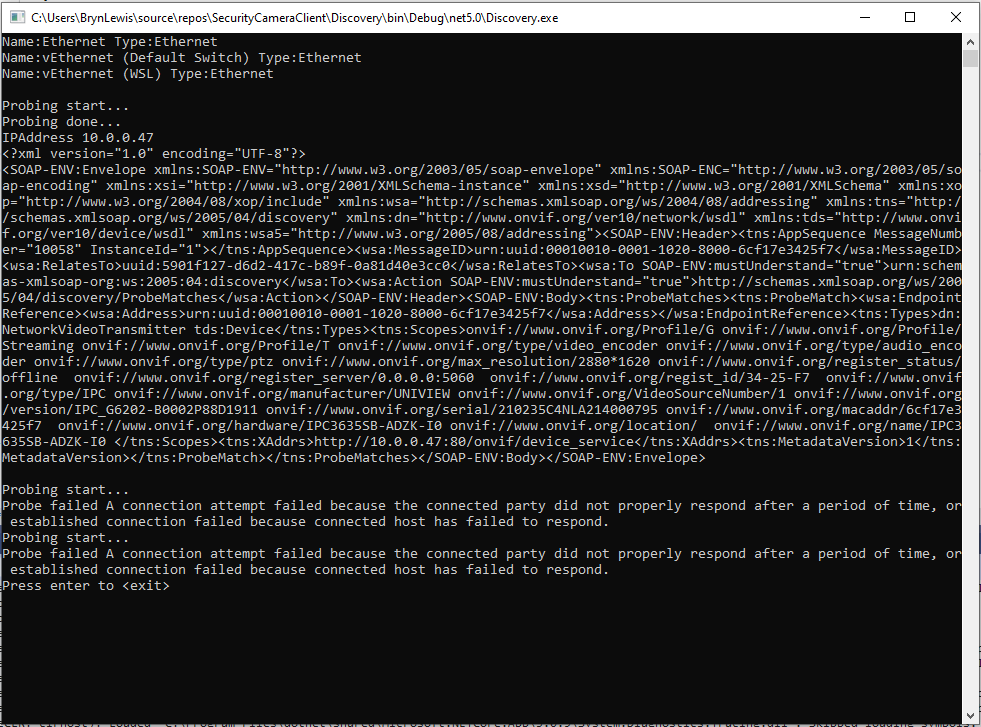

My .Net Core 5 console application enumerates the host device’s network interfaces, then sends a “probe” message and waits for responses. The ONVID application programmers guide specifies the format of the “probe” request and response messages (One of the namespace prefixes in the sample is wrong). The client device can return its name and details of it’s capabilities in the response. Currently I only need the IP addresses of the cameras but if more information was required I would use the XML Serialisation functionality of .Net Core to generate the requests and unpack the responses.

class Program
{
	// From https://specs.xmlsoap.org/ws/2005/04/discovery/ws-discovery.pdf & http://www.onvif.org/wp-content/uploads/2016/12/ONVIF_WG-APG-Application_Programmers_Guide-1.pdf
	const string WSDiscoveryProbeMessages =
		"<?xml version = \"1.0\" encoding=\"UTF-8\"?>" +
		"<e:Envelope xmlns:e=\"http://www.w3.org/2003/05/soap-envelope\" " +
			"xmlns:w=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\" " +
			"xmlns:d=\"http://schemas.xmlsoap.org/ws/2005/04/discovery\" " +
			"xmlns:dn=\"http://www.onvif.org/ver10/network/wsdl\"> " +
				"<e:Header>" +
					"<w:MessageID>uuid:{0}</w:MessageID>" +
					"<w:To e:mustUnderstand=\"true\">urn:schemas-xmlsoap-org:ws:2005:04:discovery</w:To> " +
					"<w:Action mustUnderstand=\"true\">http://schemas.xmlsoap.org/ws/2005/04/discovery/Probe</w:Action> " +
				"</e:Header> " +
				"<e:Body> " +
					"<d:Probe> " +
						"<d:Types>dn:NetworkVideoTransmitter</d:Types>" +
					"</d:Probe> " +
				"</e:Body> " +
		"</e:Envelope>";

	static async Task Main(string[] args)
	{
		List<UdpClient> udpClients = new List<UdpClient>();

		foreach (var networkInterface in NetworkInterface.GetAllNetworkInterfaces())
		{
			Console.WriteLine($"Name {networkInterface.Name}");
			foreach (var unicastAddress in networkInterface.GetIPProperties().UnicastAddresses)
			{
				if (unicastAddress.Address.AddressFamily == AddressFamily.InterNetwork)
				{
					var udpClient = new UdpClient(new IPEndPoint(unicastAddress.Address, 0)) { EnableBroadcast = true };

					udpClient.Client.SetSocketOption(SocketOptionLevel.Socket, SocketOptionName.ReceiveTimeout, 5000);

					udpClients.Add(udpClient);
				}
			}
		}

	var multicastEndpoint = new IPEndPoint(IPAddress.Parse("239.255.255.250"), 3702);

		foreach (UdpClient udpClient in udpClients)
		{
			byte[] message = UTF8Encoding.UTF8.GetBytes(string.Format(WSDiscoveryProbeMessages, Guid.NewGuid().ToString()));

			try
			{
				await udpClient.SendAsync(message, message.Length, multicastEndpoint);

				IPEndPoint remoteEndPoint = null;

				while(true)
				{
					message = udpClient.Receive(ref remoteEndPoint);

					Console.WriteLine($"IPAddress {remoteEndPoint.Address}");
					Console.WriteLine(UTF8Encoding.UTF8.GetString(message));

					Console.WriteLine();
				}
			}
			catch (SocketException sex)
			{
				Console.WriteLine($"Probe failed {sex.Message}");
			}
		}

		Console.WriteLine("Press enter to <exit>");
		Console.ReadKey();
	}
}

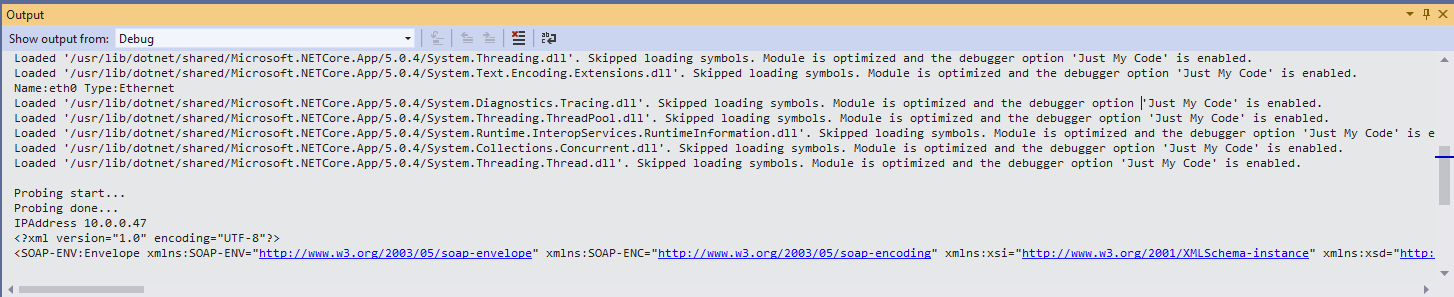

After confirming the program was working I used the excellent RaspberryDebugger to download the application and debug it on a Raspberry PI 3 running the Raspberry PI OS.

Security Camera HTTP Image download

As part of a contract a customer sent me a Uniview IPC3635SB-ADZK-I0 Security camera for a proof of concept(PoC) project. Before the PoC I wanted to explore the camera functionality in more depth, especially how to retrieve individual images from the camera, remotely control it’s zoom, focus, pan, tilt etc.. I’m trying to source a couple of other vendors’ security cameras with remotely controllable pan and tilt for testing.

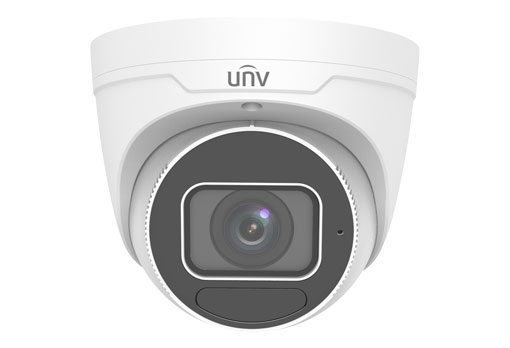

Uniview IPC3635SB-ADZK-I0 Security camera

It appears that many cameras support retrieving the latest image with an HyperText Transfer Protocol (HTTP) GET so that looked like a good place to start. For the next couple of posts the camera will be sitting on the bookcase in my office looking through the window at the backyard.

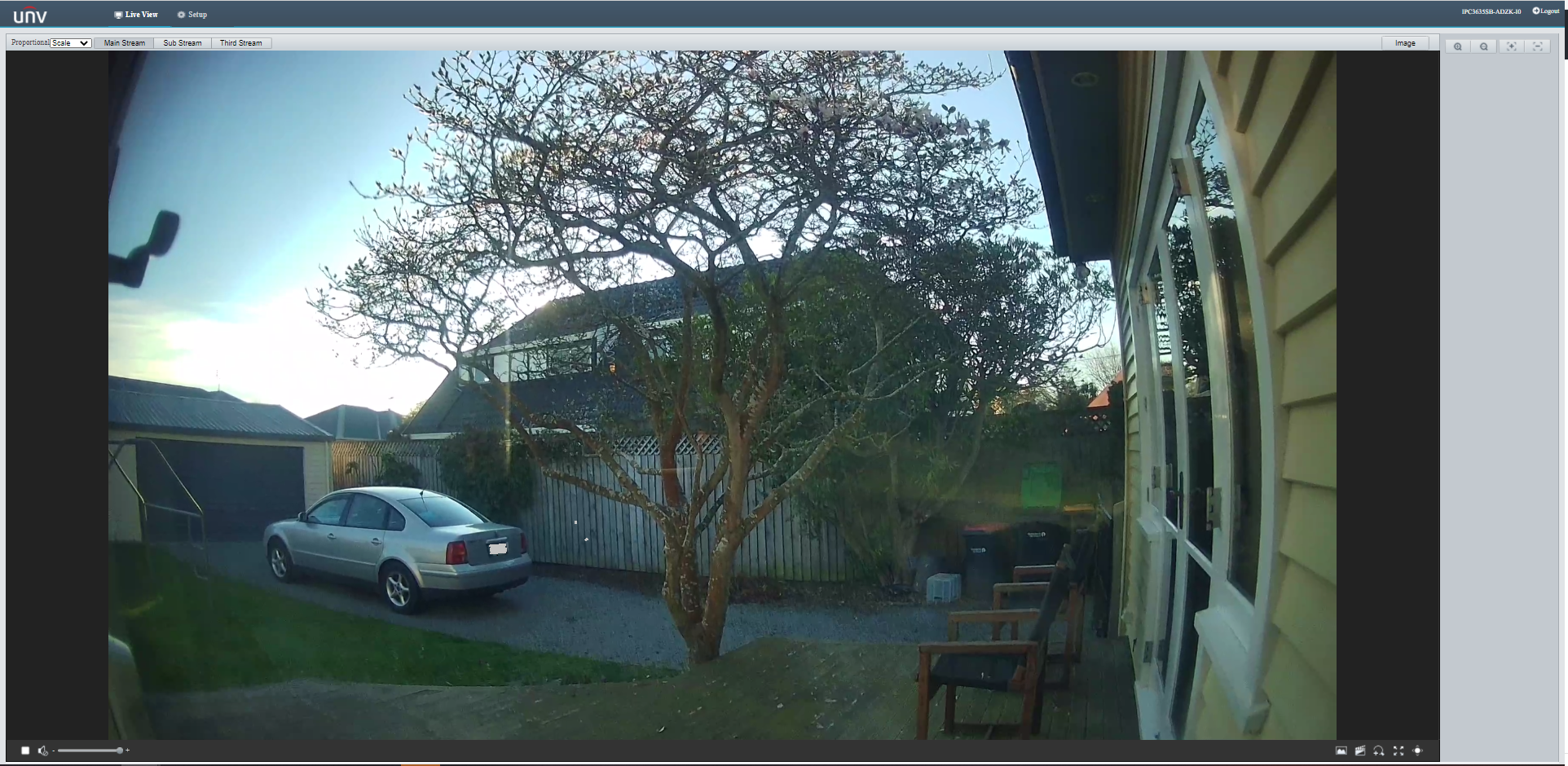

Unv camera software live view of my backyard

One thing I did notice (then confirmed with Telerik Fiddler and in the camera configuration) was that the camera was configured to use Digest authentication(RFC 2069) which broke my initial attempt with a Universal Windows Platform(UWP) application.

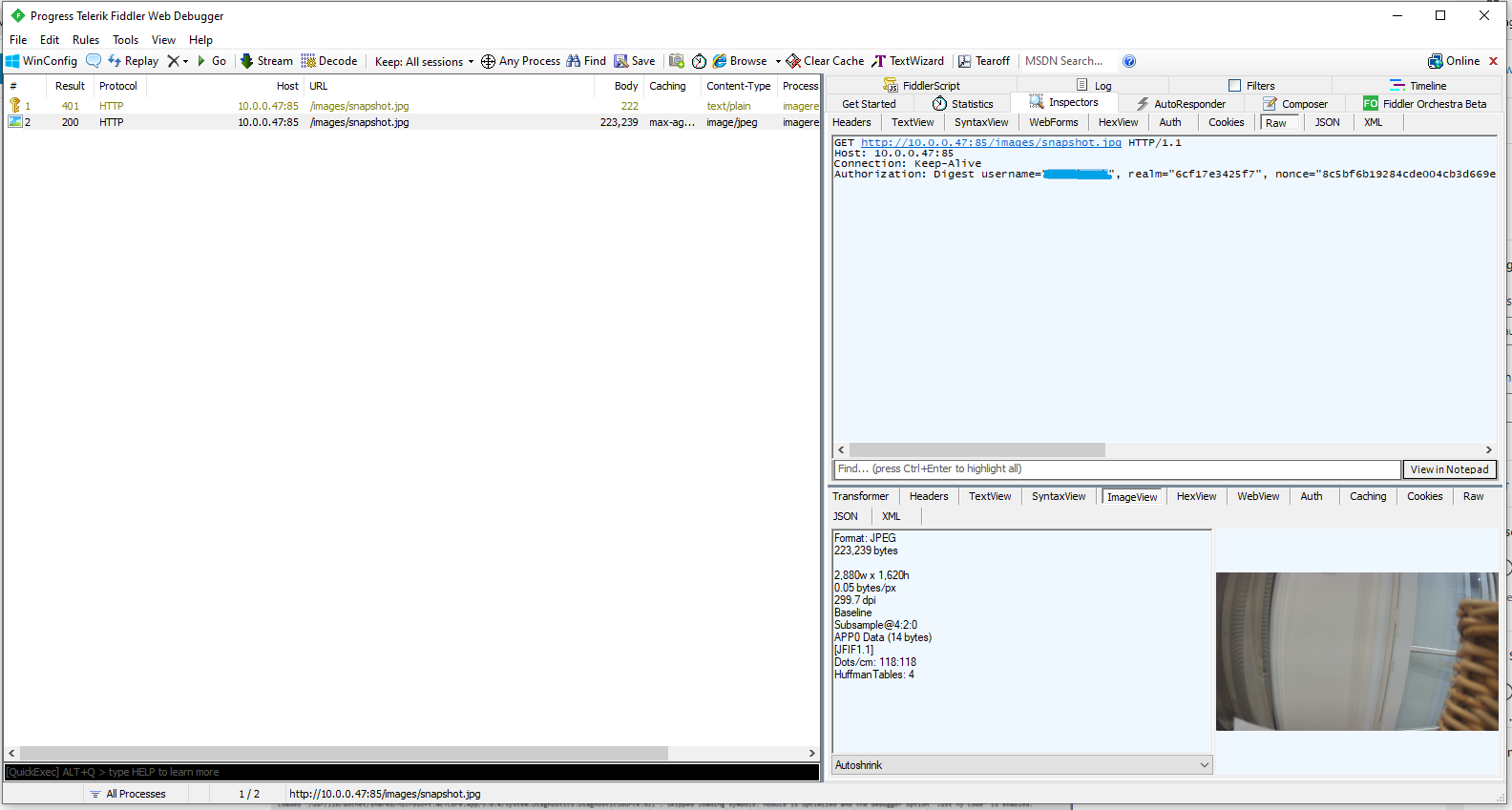

Telerik Fiddler showing 401 authorisation challenge

My .Net Core 5 console application is as simple possible, it just downloads an image from the camera “snapshot” endpoint (In this case http://10.0.0.47:85/images/snapshot.jpg) and saves it to the local filesystem.

class Program
{
	static async Task Main(string[] args)
	{
		await Parser.Default.ParseArguments<CommandLineOptions>(args)
			.WithNotParsed(HandleParseError)
			.WithParsedAsync(ApplicationCore);
	}

	private static async Task ApplicationCore(CommandLineOptions options)
	{
		Console.WriteLine($"Camera:{options.CameraUrl} UserName:{options.UserName} filename:{options.Filename}");

		using (var client = new WebClient())
		{
			NetworkCredential networkCredential = new NetworkCredential()
			{
				UserName = options.UserName,
				Password = options.Password
			};

			client.Credentials = networkCredential;

			try
			{
				await client.DownloadFileTaskAsync(new Uri(options.CameraUrl), options.Filename);
			}
			catch (Exception ex)
			{
				Console.WriteLine($"File download failed {ex.Message}");
			}
		}

		Console.WriteLine("Press <enter> to exit");
		Console.ReadLine();
	}

	private static void HandleParseError(IEnumerable<Error> errors)
	{
		if (errors.IsVersion())
		{
			Console.WriteLine("Version Request");
			return;
		}

		if (errors.IsHelp())
		{
			Console.WriteLine("Help Request");
			return;
		}
		Console.WriteLine("Parser Fail");
	}
}

After confirming the program was working I used the excellent RaspberryDebugger to download the application and debug it on a Raspberry PI 3 running the Raspberry PI OS.

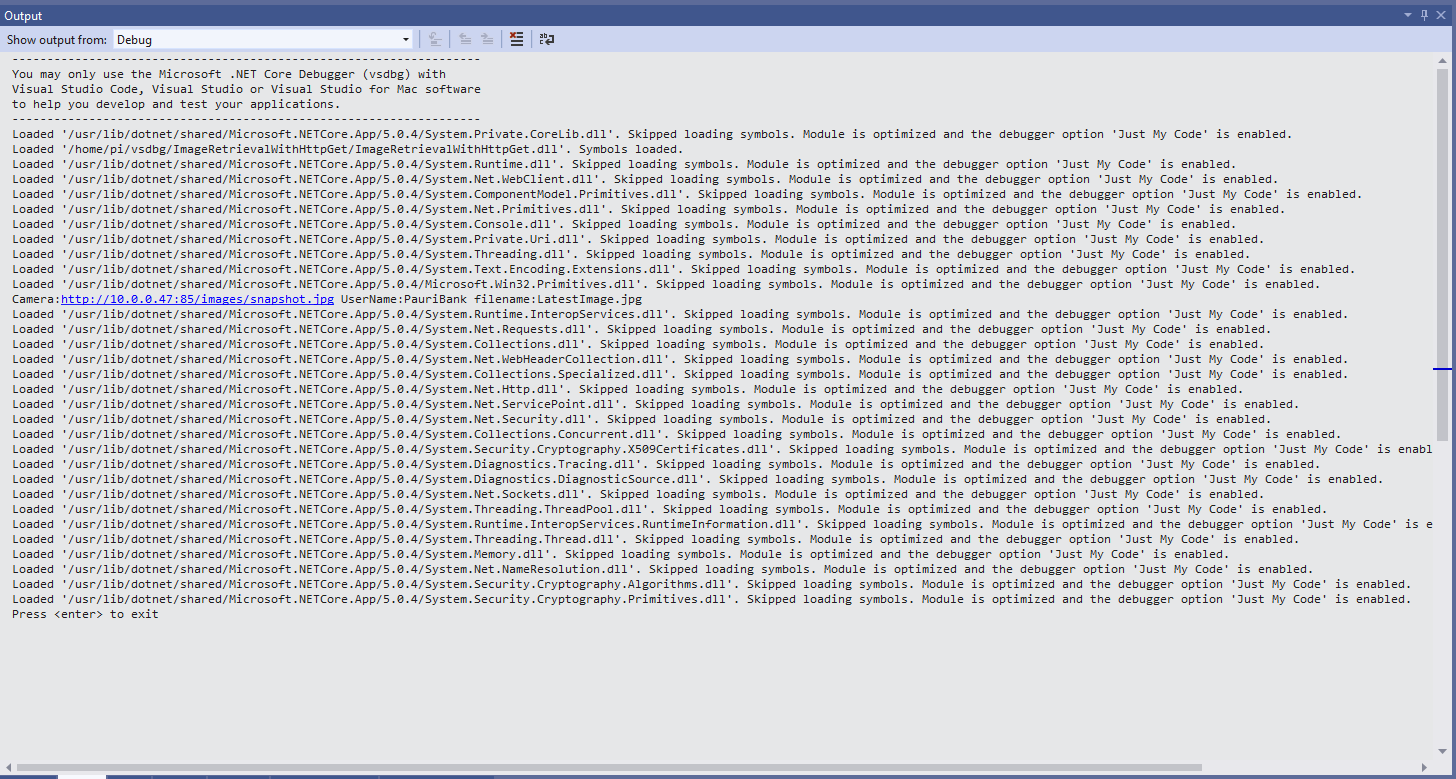

Visual Studio 2019 Debug Output showing application download process

Once the application had finished running on the device I wanted to check that the file was on the local filesystem. I used Putty to connect to the Raspberry PI then searched for LatestImage.jpg.

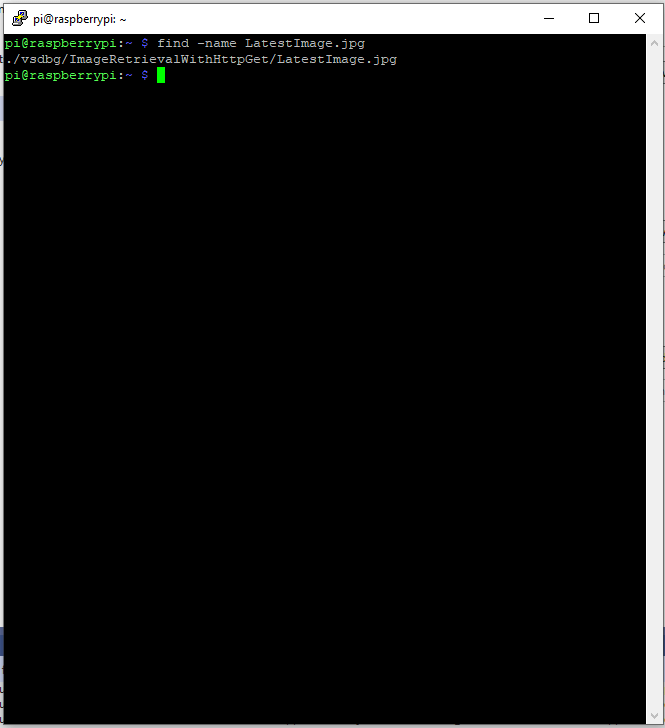

Linux find utility displaying the location of the downloaded file

I though about using a utility like scp to download the image file but decided (because I have been using Microsoft Window since WIndows 286) to install xrdp an open-source Remote Desktop Protocol(RDP) server so I could use a Windows 10 RDP client.

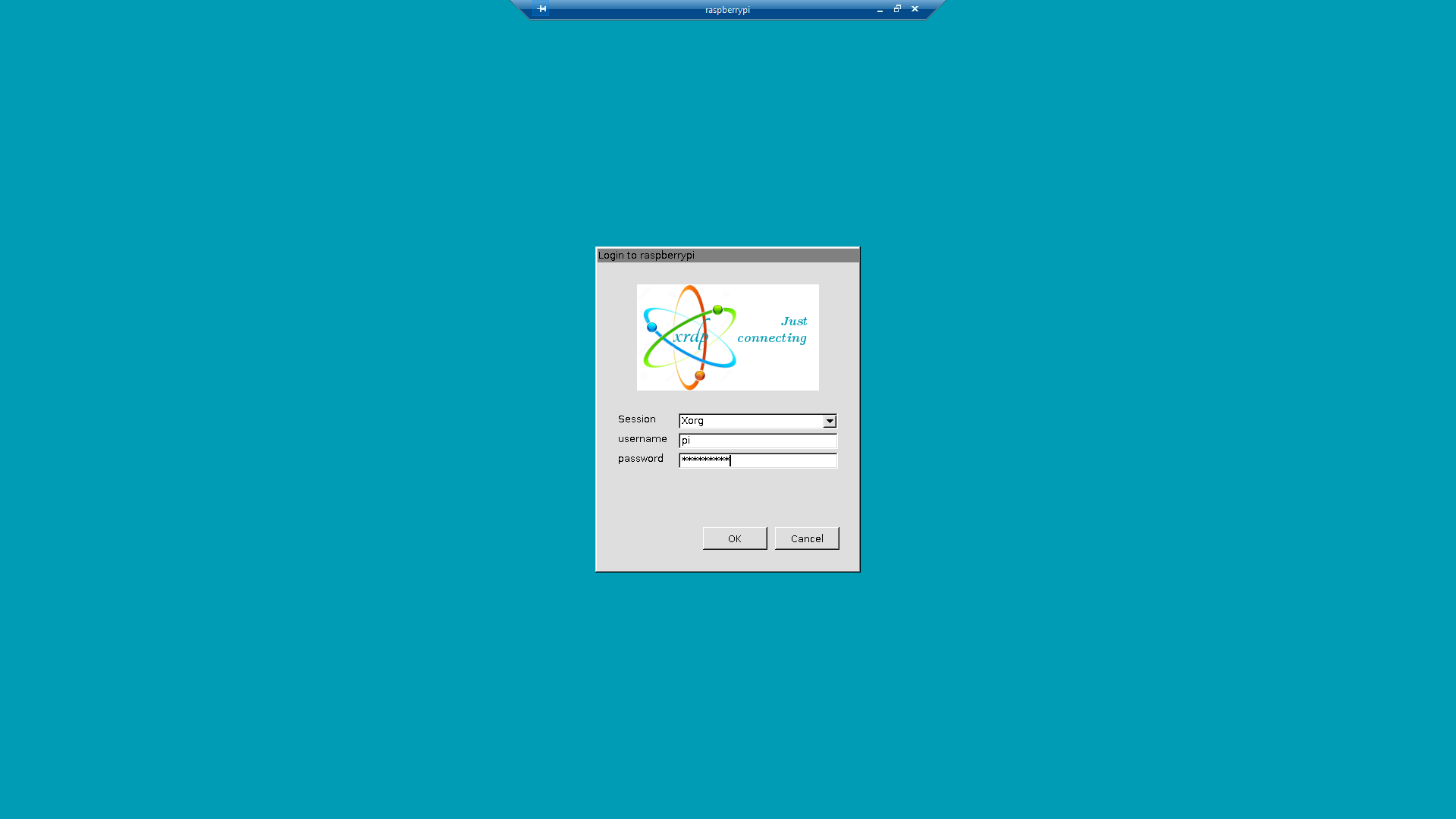

xrdp login screen

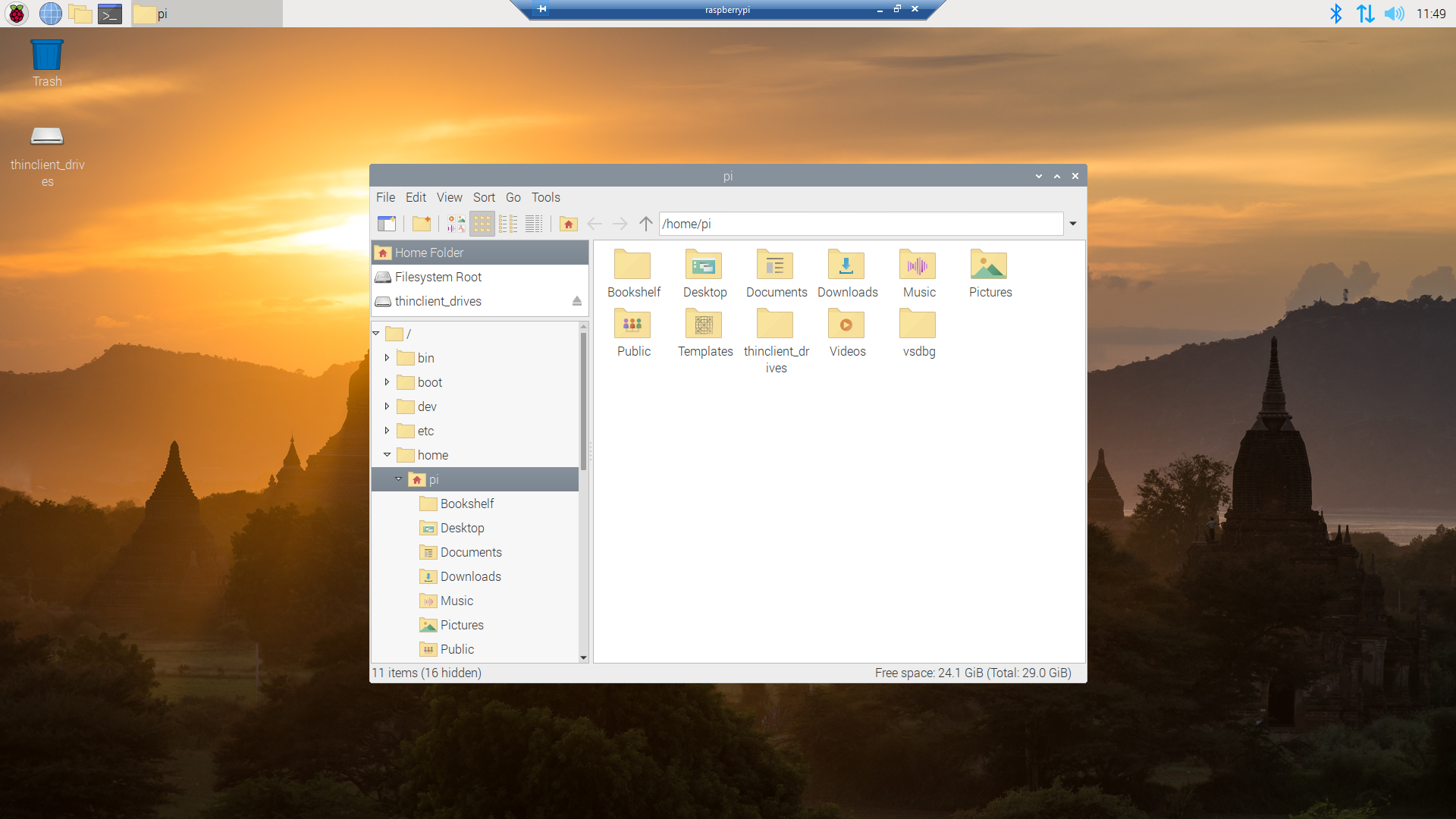

xrdp home screen

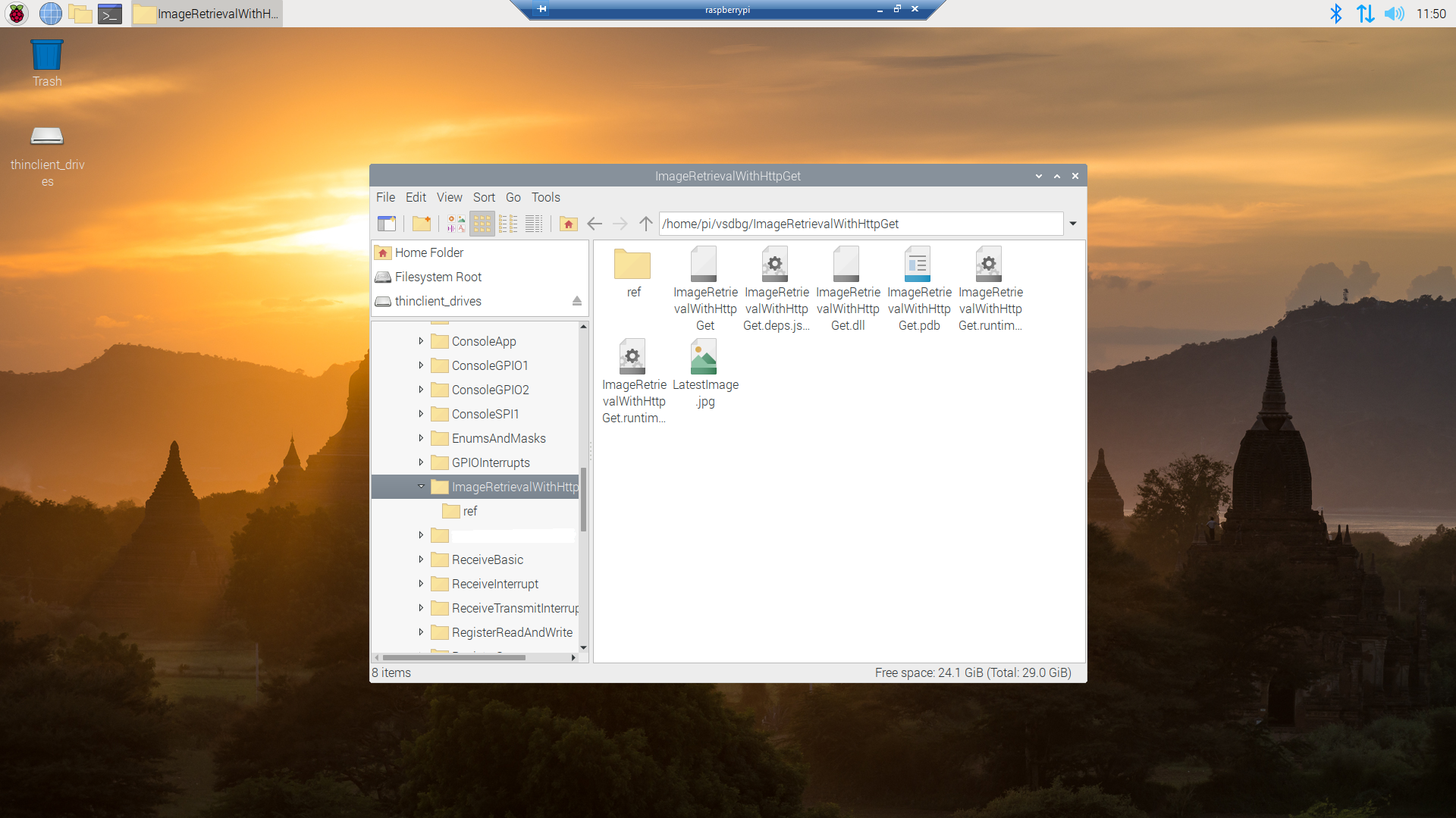

xrdp file manager display files in application deployment directory

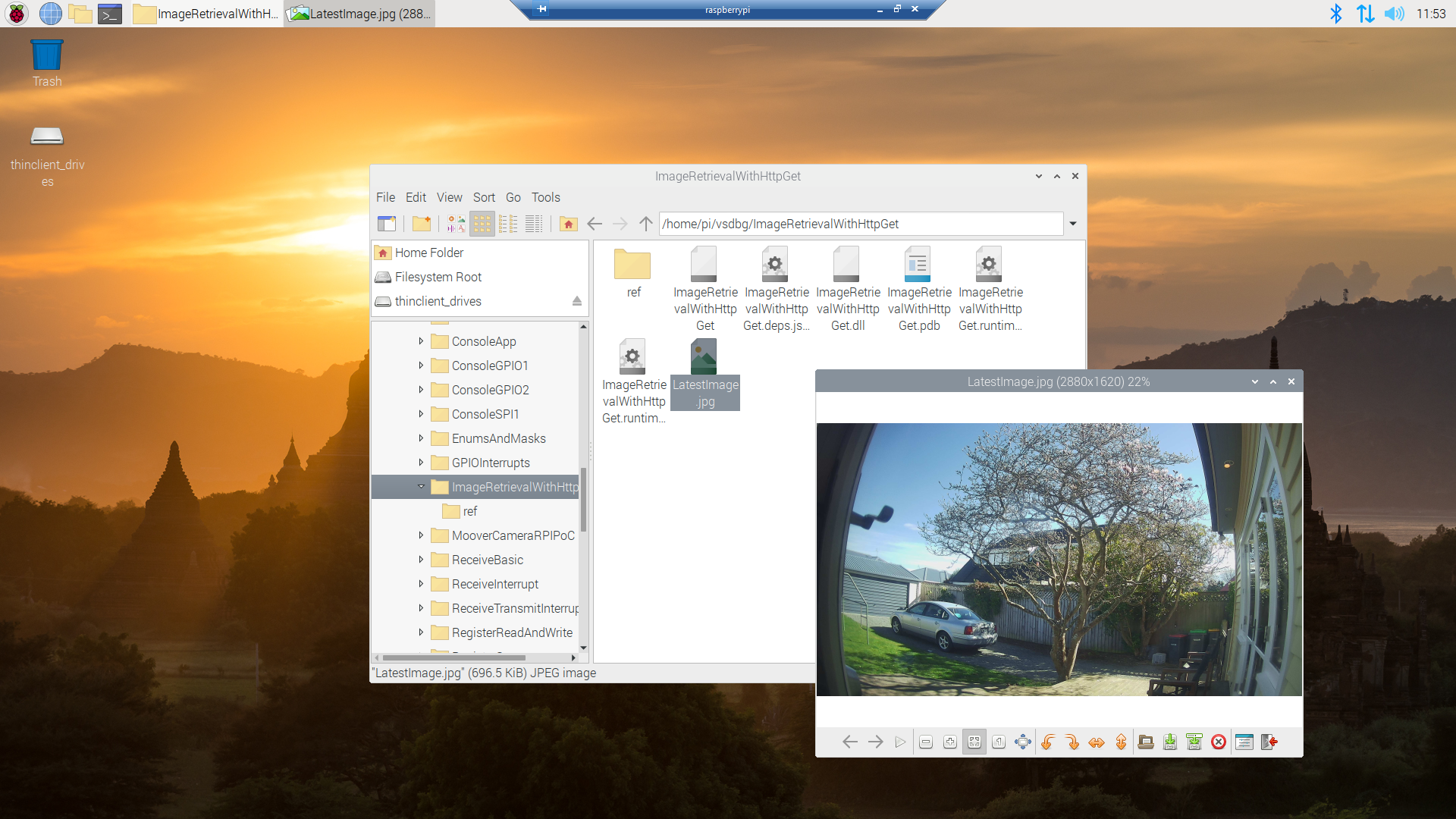

Raspberry PI OS default image view

Now that the basics are working my plan is to figure out how to control the camera, display live video with the Real Time Streaming Protocol(RTSP) upload images to Azure Cognitive Services for processing and use ML.Net to process them locally.

This post was about selecting the tooling I’m comfortable with and configuring my development environment so they work well together. The next step will be using Open Network Video Interface Forum (ONVIF) to discover, determine the capabilities of and then control the camera (for this device just zoom and focus).

ASP MVC Core V2.1 and Cross-Origin Resource Sharing

I’m working on an project for a customer which implements a number of application programming Interfaces(API) for a Single Page Application(SPA) and other clients. We are using entity tags (ETags) for versioning and the front end developers found the couldn’t access them from javascipt running in mainstream browser clients (June 2018).

The problems was understanding how Cross-Origin Resource Sharing (CORS) worked and how it interacted with our security model (API key and OAuth2.0 depending on the client)

In our scenario we first found the pre-flight check wasn’t working because in the HyperText Transfer Protocol (HTTP) OPTIONS method our X-API-KEY check was failing

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 400 Bad Request
Transfer-Encoding: chunked
Server: Kestrel
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:48:30 GMT

13
API Key is invalid.
0

So I disabled X-API-KEY validation in startup.cs

public async Task Invoke(HttpContext context)
{
   if (context.Request.Method == "OPTIONS")
   {
      await this.next.Invoke(context);
      return;
   }

   var claims = new List();
…

OPTIONS then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 404 Not Found
Server: Kestrel
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:52:20 GMT
Content-Length: 0

I then turned on CORS allowing pretty much anything

public void ConfigureServices(IServiceCollection services)
{
   services.AddCors(options =>
   {
      options.AddPolicy("CorsPolicy",
      builder => builder.AllowAnyOrigin()
         .AllowAnyMethod()
         .AllowAnyHeader()
         .AllowCredentials());
   });
   services.AddMvc();
}

public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
{
   if (env.IsDevelopment())
   {
      app.UseDeveloperExceptionPage();
   }

   TelemetryConfiguration.Active.InstrumentationKey = this.configuration.GetSection("ApplicationInsights").GetSection("InstrumentationKey").Value;

   loggerFactory.AddLog4Net();
   this.log.Info("Startup.Configure called");

   app.ApplyUserKeyValidation();
   app.UseCors("CorsPolicy");
   app.UseMvc();
   }
}

OPTIONS then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key
Access-Control-Request-Method: GET
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 204 No Content
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: x-api-key
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:57:33 GMT

GET then worked

GET http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 200 OK
Content-Type: application/json; charset=utf-8
ETag: 00-00-00-00-00-00-00-76
Vary: Origin,Accept-Encoding
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:57:34 GMT
Content-Length: 2216

[{"...."}}

But HEAD didn’t work

HEAD http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 400 Bad Request
Content-Length: 0
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 05:59:55 GMT

From the Application Insights logging and RestTest client (which I ran locally and remotely) I could see that the client side code couldn’t access the value of our eTag.  It had to be “exposed”

public void ConfigureServices(IServiceCollection services)
{
   services.AddCors(options =>
   {
      options.AddPolicy("CorsPolicy",
            builder => builder.AllowAnyOrigin()
            .AllowAnyMethod()
            .AllowAnyHeader()
            .WithExposedHeaders("etag")
            .AllowCredentials()
         );
      });
      services.AddMvc();
   }
...

GET then worked

GET http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
ETag: 00-00-00-00-00-00-00-76
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
If-None-Match: 00-00-00-00-00-00-00-76
Host: xyz.azurewebsites.net
Connection: Keep-Alive

HTTP/1.1 200 OK
Transfer-Encoding: chunked
Content-Type: application/json; charset=utf-8
Content-Encoding: gzip
ETag: 00-00-00-00-00-00-00-76
Vary: Origin,Accept-Encoding
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:53:41 GMT

[{"...."}}

HEAD then worked

OPTIONS http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
Access-Control-Request-Headers: x-api-key,etag
Access-Control-Request-Method: HEAD
Accept-Encoding: gzip, deflate
Content-Length: 0
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 204 No Content
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: x-api-key,etag
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:57:31 GMT

HEAD http://xyz.azurewebsites.net/api/portfolio HTTP/1.1
...
X-API-KEY: ABCDEFGHIJKLMNOPQRSTUVWXYZ
ETag: 00-00-00-00-00-00-00-76
Accept-Language: en-NZ
Accept-Encoding: gzip, deflate
Host: xyz.azurewebsites.net
Connection: Keep-Alive
Pragma: no-cache

HTTP/1.1 304 Not Modified
Vary: Origin
Server: Kestrel
Access-Control-Allow-Credentials: true
Access-Control-Allow-Origin: file://
X-Powered-By: ASP.NET
...
Date: Sun, 24 Jun 2018 07:57:31 GMT

I had some oddness with releasing code updates which I think was down to caching of pre-flight request responses.
Next steps tidy up the headers etc. and lock the CORS configuration down to expose the minimum necessary required for the application to work.
