As part of some scale testing of my WebAPIDapper and WebMinimalAPIDapper i have been “cleaning up” a portion of the Inside AirbnbLondon dataset. To make the scale testing results more realistic I wanted at least one table with lots of rows.
CREATE TABLE [dbo].[CalendarRawDetailed](
[listing_id] [bigint] NOT NULL,
[Date] [date] NOT NULL,
[Xavailable] [bit] NULL,
[available] [nvarchar](5) NOT NULL,
[Xprice] [money] NULL,
[price] [nvarchar](30) NOT NULL,
[Xadjusted_price] [money] NULL,
[adjusted_price] [nvarchar](30) NOT NULL,
[Xminimum_nights] [smallint] NULL,
[minimum_nights] [nvarchar](30) NOT NULL,
[Xmaximum_nights] [smallint] NULL,
[maximum_nights] [nvarchar](30) NOT NULL
) ON [PRIMARY]
The CalendarRawDetailed had some invalid values which were most probably due formatting inconsistencies on the AirBnb website
SELECT COUNT(*) FROM CalendarRawDetailed WHERE Xminimum_nights IS NULL
SELECT * FROM CalendarRawDetailed WHERE Xminimum_nights IS NULL
SELECT COUNT(*) FROM CalendarRawDetailed WHERE Xmaximum_nights IS NULL
SELECT * FROM CalendarRawDetailed WHERE Xmaximum_nights IS NULL
SELECT COUNT(*) FROM CalendarRawDetailed WHERE Xadjusted_price IS NULL
SELECT * FROM CalendarRawDetailed WHERE Xadjusted_price IS NULL
SELECT COUNT(*) FROM CalendarRawDetailed WHERE Xprice IS NULL
SELECT * FROM CalendarRawDetailed WHERE Xprice IS NULL
Where possible I recovered the values with an “incorrect” format, but some rows had to be deleted.
UPDATE CalendarRawDetailed SET Xmaximum_nights = TRY_CONVERT(smallint, RTRIM(maximum_nights, '"')) WHERE Xmaximum_nights IS NULL
UPDATE CalendarRawDetailed SET XmINimum_nights = TRY_CONVERT(smallint, RTRIM(mINimum_nights, '"')) WHERE Xminimum_nights IS NULL
UPDATE CalendarRawDetailed SET Xadjusted_price = TRY_CONVERT(money, LTRIM(adjusted_price, '$')) --WHERE Xmaximum_nights IS NULL
SELECT *
FROM CalendarRawDetailed
WHERE Xadjusted_price IS NULL
DELETE FROM CalendarRawDetailed WHERE Xmaximum_nights IS NULL
UPDATE CalendarRawDetailed set Xavailable = 1 where available = 't'
The Calendar table has 365 rows for each listing, and I will update Calendar dates, so they are in the “future”.
CREATE TABLE [dbo].[Calendar](
[listing_id] [bigint] NOT NULL,
[date] [date] NOT NULL,
[available] [bit] NOT NULL,
[price] [money] NOT NULL,
[adjusted_price] [money] NOT NULL,
[minimum_nights] [smallint] NOT NULL,
[maximum_nights] [smallint] NOT NULL
) ON [PRIMARY]
The Calendar table as approximately 31 million rows which should be plenty for my scale testing.
The uses the Microsoft.Extensions.Logging library to publish diagnostic information to the console while debugging the application.
To check the results I put a breakpoint in the timer just after DetectAsync method is called and then used the Visual Studio 2022 Debugger QuickWatch functionality to inspect the contents of the DetectionResult object.
This application can also be deployed as a Linuxsystemd Service so it will start then run in the background. The same approach as the YoloV8.Detect.SecurityCamera.Stream sample is used because the image doesn’t have to be saved on the local filesystem.
The YoloV8.Detect.SecurityCamera.File sample downloads images from the security camera to the local file system, then calls DetectAsync with the local file path.
private static async void ImageUpdateTimerCallback(object state)
{
//...
try
{
Console.WriteLine($"{DateTime.UtcNow:yy-MM-dd HH:mm:ss:fff} YoloV8 Security Camera Image File processing start");
using (Stream cameraStream = await _httpClient.GetStreamAsync(_applicationSettings.CameraUrl))
using (Stream fileStream = System.IO.File.Create(_applicationSettings.ImageFilepath))
{
await cameraStream.CopyToAsync(fileStream);
}
DetectionResult result = await _predictor.DetectAsync(_applicationSettings.ImageFilepath);
Console.WriteLine($"Speed: {result.Speed}");
foreach (var prediction in result.Boxes)
{
Console.WriteLine($" Class {prediction.Class} {(prediction.Confidence * 100.0):f1}% X:{prediction.Bounds.X} Y:{prediction.Bounds.Y} Width:{prediction.Bounds.Width} Height:{prediction.Bounds.Height}");
}
Console.WriteLine($"{DateTime.UtcNow:yy-MM-dd HH:mm:ss:fff} YoloV8 Security Camera Image processing done");
}
catch (Exception ex)
{
Console.WriteLine($"{DateTime.UtcNow:yy-MM-dd HH:mm:ss} YoloV8 Security camera image download or YoloV8 prediction failed {ex.Message}");
}
//...
}
The ImageSelector parameter of DetectAsync caught my attention as I hadn’t seen this approach use before. The developers who wrote the NuGet package are definitely smarter than me so I figured I might learn something useful digging deeper.
public static DetectionResult Detect(this YoloV8 predictor, ImageSelector selector)
{
predictor.ValidateTask(YoloV8Task.Detect);
return predictor.Run(selector, (outputs, image, timer) =>
{
var output = outputs[0].AsTensor<float>();
var parser = new DetectionOutputParser(predictor.Metadata, predictor.Parameters);
var boxes = parser.Parse(output, image);
var speed = timer.Stop();
return new DetectionResult
{
Boxes = boxes,
Image = image,
Speed = speed,
};
});
public TResult Run<TResult>(ImageSelector selector, PostprocessContext<TResult> postprocess) where TResult : YoloV8Result
{
using var image = selector.Load(true);
var originSize = image.Size;
var timer = new SpeedTimer();
timer.StartPreprocess();
var input = Preprocess(image);
var inputs = MapNamedOnnxValues([input]);
timer.StartInference();
using var outputs = Infer(inputs);
var list = new List<NamedOnnxValue>(outputs);
timer.StartPostprocess();
return postprocess(list, originSize, timer);
}
}
It looks like most of the image loading magic of ImageSelector class is implemented using the SixLabors library…
public class ImageSelector<TPixel> where TPixel : unmanaged, IPixel<TPixel>
{
private readonly Func<Image<TPixel>> _factory;
public ImageSelector(Image image)
{
_factory = image.CloneAs<TPixel>;
}
public ImageSelector(string path)
{
_factory = () => Image.Load<TPixel>(path);
}
public ImageSelector(byte[] data)
{
_factory = () => Image.Load<TPixel>(data);
}
public ImageSelector(Stream stream)
{
_factory = () => Image.Load<TPixel>(stream);
}
internal Image<TPixel> Load(bool autoOrient)
{
var image = _factory();
if (autoOrient)
image.Mutate(x => x.AutoOrient());
return image;
}
public static implicit operator ImageSelector<TPixel>(Image image) => new(image);
public static implicit operator ImageSelector<TPixel>(string path) => new(path);
public static implicit operator ImageSelector<TPixel>(byte[] data) => new(data);
public static implicit operator ImageSelector<TPixel>(Stream stream) => new(stream);
}
Learnt something new must be careful to apply it only where it adds value.
All of the implementations load the model, load the sample image, detect objects in the image, then markup the image with the classification, minimum bounding boxes, and confidences of each object.

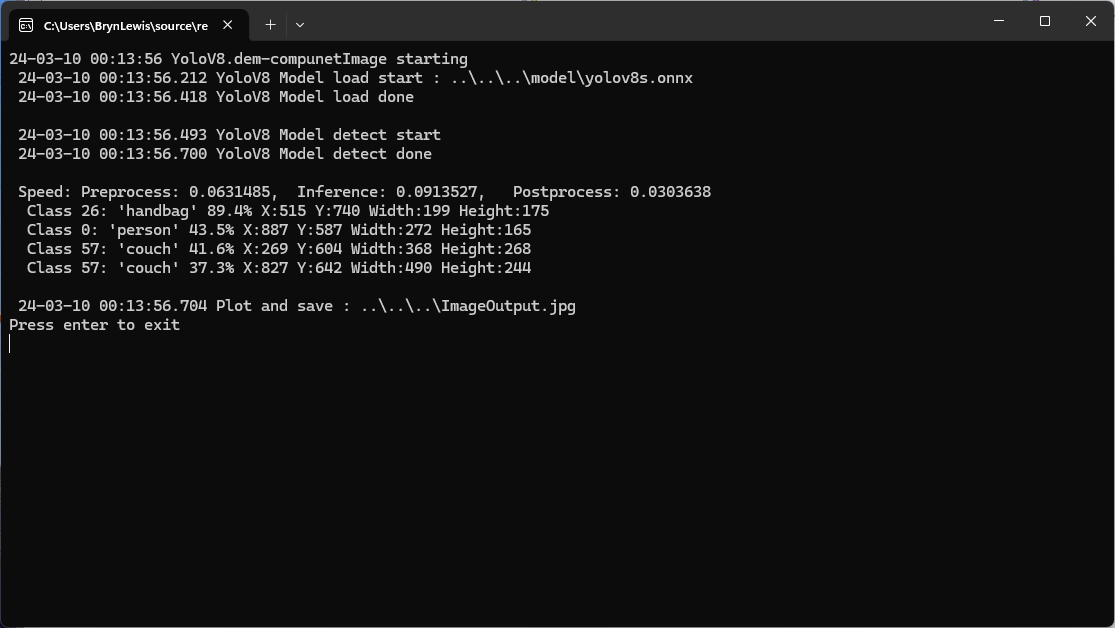

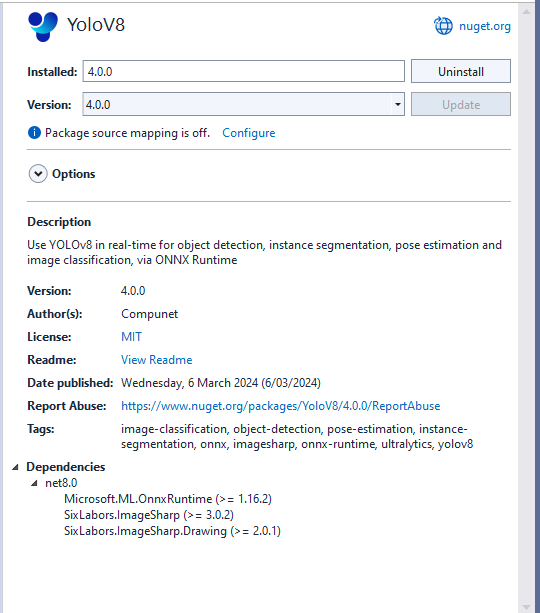

The first implementation uses YoloV8 by dme-compunet which supports asynchronous operation. The image is loaded asynchronously, the prediction is asynchronous, then marked up and saved asynchronously.
using (var predictor = new Compunet.YoloV8.YoloV8(_applicationSettings.ModelPath))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model load done");
Console.WriteLine();
using (var image = await SixLabors.ImageSharp.Image.LoadAsync<Rgba32>(_applicationSettings.ImageInputPath))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect start");
var predictions = await predictor.DetectAsync(image);
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect done");
Console.WriteLine();
Console.WriteLine($" Speed: {predictions.Speed}");
foreach (var prediction in predictions.Boxes)
{
Console.WriteLine($" Class {prediction.Class} {(prediction.Confidence * 100.0):f1}% X:{prediction.Bounds.X} Y:{prediction.Bounds.Y} Width:{prediction.Bounds.Width} Height:{prediction.Bounds.Height}");
}
Console.WriteLine();
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} Plot and save : {_applicationSettings.ImageOutputPath}");
SixLabors.ImageSharp.Image imageOutput = await predictions.PlotImageAsync(image);
await imageOutput.SaveAsJpegAsync(_applicationSettings.ImageOutputPath);
}
}

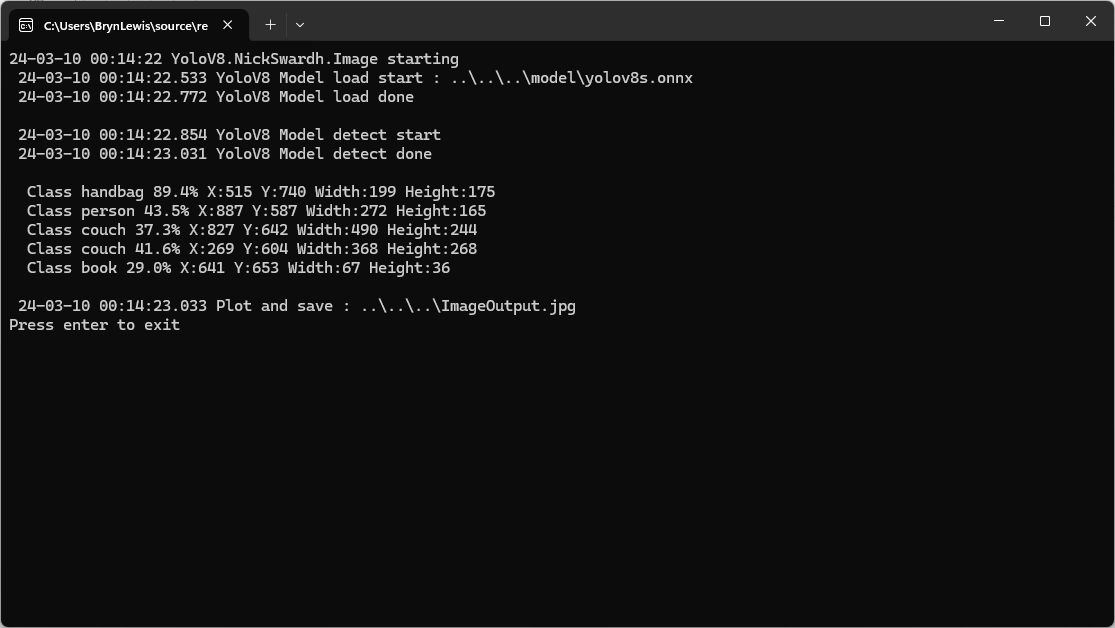

The second implementation uses YoloDotNet by NichSwardh which partially supports asynchronous operation. The image is loaded asynchronously, the prediction is synchronous, the markup is synchronous, and then saved asynchronously.
using (var predictor = new Yolo(_applicationSettings.ModelPath, false))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model load done");
Console.WriteLine();
using (var image = await SixLabors.ImageSharp.Image.LoadAsync<Rgba32>(_applicationSettings.ImageInputPath))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect start");
var predictions = predictor.RunObjectDetection(image);
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect done");
Console.WriteLine();
foreach (var predicition in predictions)
{
Console.WriteLine($" Class {predicition.Label.Name} {(predicition.Confidence * 100.0):f1}% X:{predicition.BoundingBox.Left} Y:{predicition.BoundingBox.Y} Width:{predicition.BoundingBox.Width} Height:{predicition.BoundingBox.Height}");
}
Console.WriteLine();
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} Plot and save : {_applicationSettings.ImageOutputPath}");
image.Draw(predictions);
await image.SaveAsJpegAsync(_applicationSettings.ImageOutputPath);
}
}

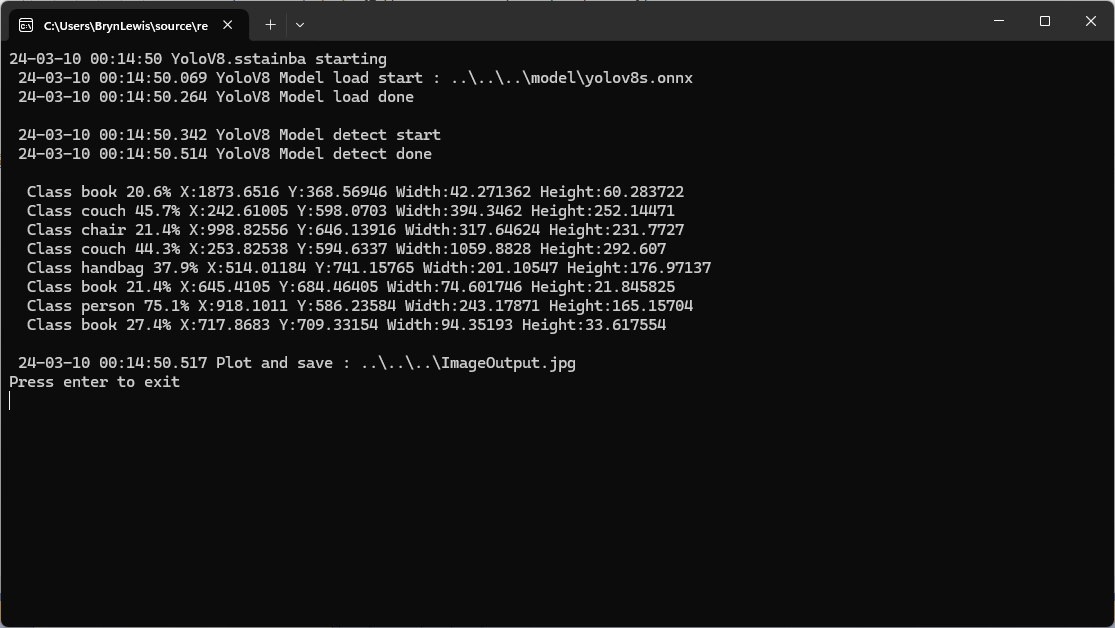

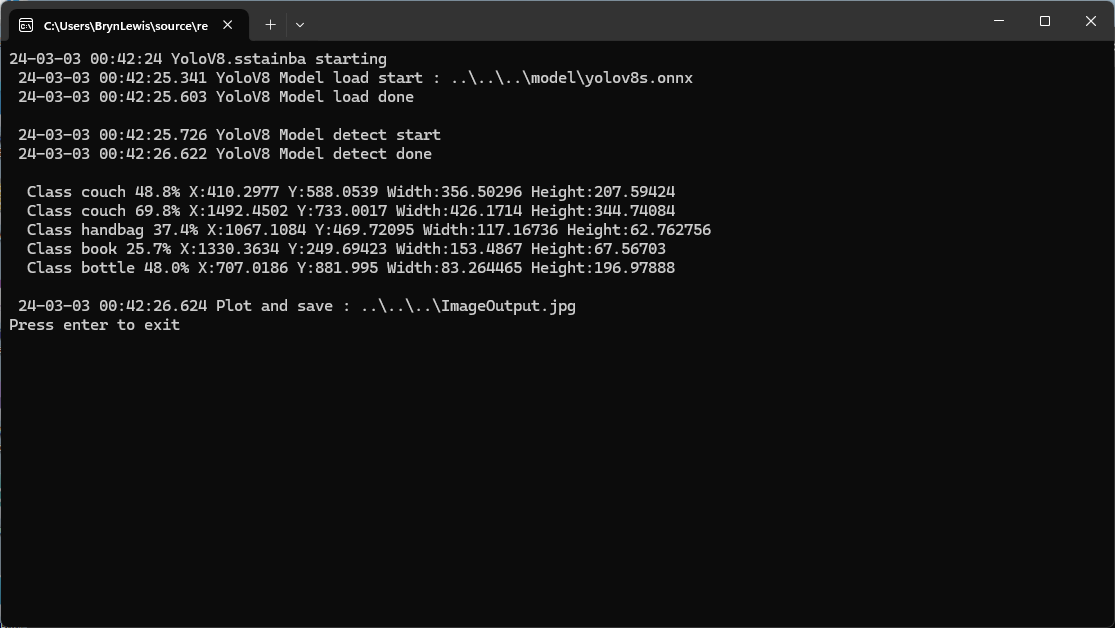

The third implementation uses YoloV8 by sstainba which partially supports asynchronous operation. The image is loaded asynchronously, the prediction is synchronous, the markup is synchronous, and then saved asynchronously.
using (var predictor = YoloV8Predictor.Create(_applicationSettings.ModelPath))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model load done");
Console.WriteLine();
using (var image = await SixLabors.ImageSharp.Image.LoadAsync<Rgba32>(_applicationSettings.ImageInputPath))
{
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect start");
var predictions = predictor.Predict(image);
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} YoloV8 Model detect done");
Console.WriteLine();
foreach (var prediction in predictions)
{
Console.WriteLine($" Class {prediction.Label.Name} {(prediction.Score * 100.0):f1}% X:{prediction.Rectangle.X} Y:{prediction.Rectangle.Y} Width:{prediction.Rectangle.Width} Height:{prediction.Rectangle.Height}");
}
Console.WriteLine();
Console.WriteLine($" {DateTime.UtcNow:yy-MM-dd HH:mm:ss.fff} Plot and save : {_applicationSettings.ImageOutputPath}");
// This is a bit hacky should be fixed up in future release
Font font = new Font(SystemFonts.Get(_applicationSettings.FontName), _applicationSettings.FontSize);
foreach (var prediction in predictions)
{
var x = (int)Math.Max(prediction.Rectangle.X, 0);
var y = (int)Math.Max(prediction.Rectangle.Y, 0);
var width = (int)Math.Min(image.Width - x, prediction.Rectangle.Width);
var height = (int)Math.Min(image.Height - y, prediction.Rectangle.Height);
//Note that the output is already scaled to the original image height and width.
// Bounding Box Text
string text = $"{prediction.Label.Name} [{prediction.Score}]";
var size = TextMeasurer.MeasureSize(text, new TextOptions(font));
image.Mutate(d => d.Draw(Pens.Solid(Color.Yellow, 2), new Rectangle(x, y, width, height)));
image.Mutate(d => d.DrawText(text, font, Color.Yellow, new Point(x, (int)(y - size.Height - 1))));
}
await image.SaveAsJpegAsync(_applicationSettings.ImageOutputPath);
}
}
I don’t understand why the three NuGets produced different results which is worrying.
