.Net MicroFramework LoRa library Part1

After getting my Windows 10 IoT Core RFM9X library well under way I figured that writing a library for .NetMF devices (like Netduino and Ingenuity Micro ones) shouldn’t be “rocket science”.

To get started I used a Dragino LoRa shield for Arduino which looked compatible with my Netduino devices. I was initially worried that the shield might not work with a 3v3 device but I tested it with a Seeeduino Lite (which has a switch to select 3v3 or 5v operation) and it worked fine.

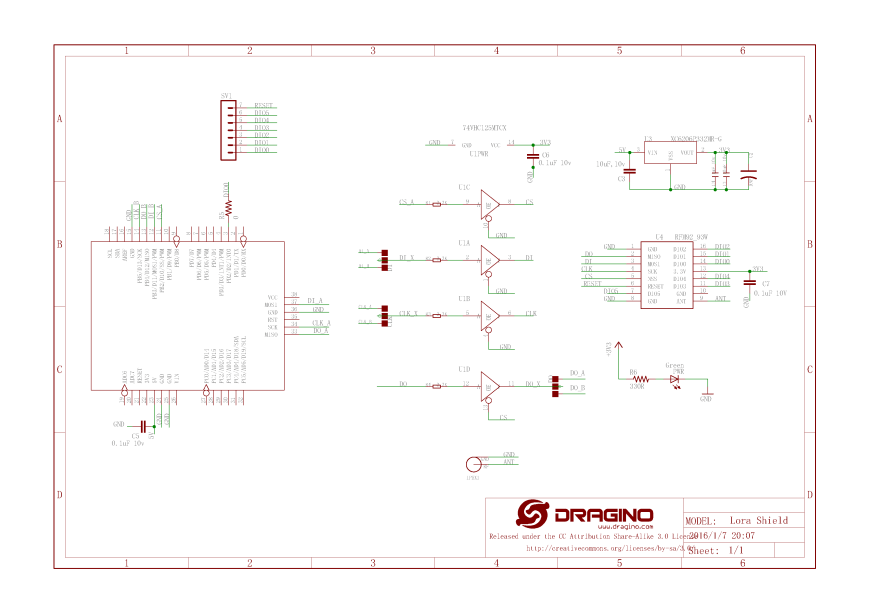

The shield uses D10 for chip select, D2 for RFM9X DI0 interrupt and D9 for Reset.
Lora_sheild_sch

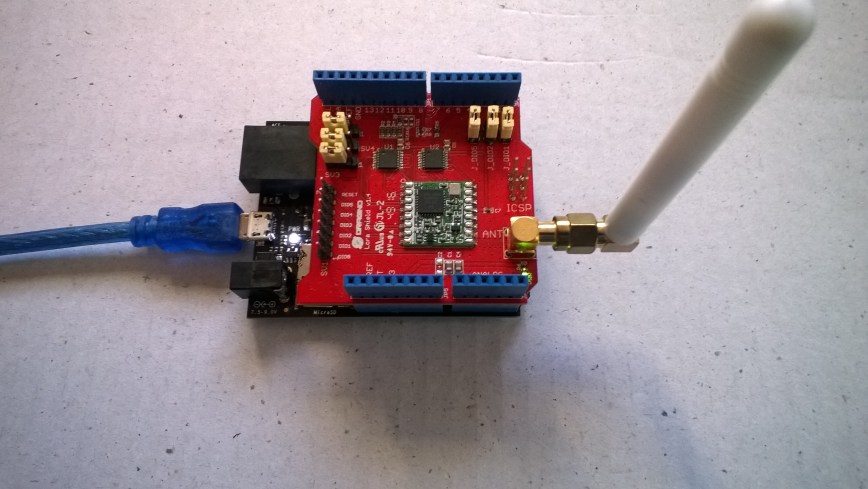

The shield ships with the SPI lines configured for ICSP so the three jumpers diagonally across the shield from the antenna connector need to be swapped to the side closest to the edge of the shield.
NetduinoDraginoShield
First step was to confirm I could (using the Netduino SPI interface and .NetMF library)read a couple of the Semtech SX1276 registers. I implemented both “automagic” and manual chip select operation in my test harness.

//---------------------------------------------------------------------------------
// Copyright (c) August 2018, devMobile Software
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
//---------------------------------------------------------------------------------
namespace devMobile.NetMF.Rfm9X.DraginoShield
{
   using System;
   using System.Threading;
   using Microsoft.SPOT;
   using Microsoft.SPOT.Hardware;
   using SecretLabs.NETMF.Hardware;
   using SecretLabs.NETMF.Hardware.Netduino;

   public class Program
   {

      public static void Main()
      {
         //OutputPort reset = new OutputPort(Pins.GPIO_PIN_D9, true);
         OutputPort chipSelect = null;
         //chipSelect = new OutputPort(Pins.GPIO_PIN_D10, true);
         //SPI spiPort = new SPI(new SPI.Configuration(Pins.GPIO_NONE, false, 0, 0, true, true, 500, SPI.SPI_module.SPI1));
         SPI spiPort = new SPI(new SPI.Configuration(Pins.GPIO_PIN_D10, false, 0, 0, false, true, 500, SPI.SPI_module.SPI1));

         Thread.Sleep(100);

         while (true)
         {
            //byte[] writeBuffer = new byte[] { 0x42 }; // RegVersion exptecing 0x12
            byte[] writeBuffer = new byte[] { 0x06 }; // RegFreqMsb expecting 0x6C
            //byte[] writeBuffer = new byte[] { 0x07 }; // RegFreqMid expecting 0x80
            //byte[] writeBuffer = new byte[] { 0x08 }; // RegFreqLsb expecting 0x00
            byte[] readBuffer = new byte[1];

            if (chipSelect != null)
            {
               chipSelect.Write(false);
            }
            spiPort.WriteRead(writeBuffer, readBuffer,1);
            if (chipSelect != null)
            {
               chipSelect.Write(true);
            }

            Debug.Print("Value = 0x" + BytesToHexString(readBuffer));

            Thread.Sleep(1000);
         }
      }

      private static string BytesToHexString(byte[] bytes)
      {
         string hexString = string.Empty;

         // Create a character array for hexidecimal conversion.
         const string hexChars = "0123456789ABCDEF";

         // Loop through the bytes.
         for (byte b = 0; b  0)
               hexString += "-";

            // Grab the top 4 bits and append the hex equivalent to the return string.
            hexString += hexChars[bytes[b] >> 4];

            // Mask off the upper 4 bits to get the rest of it.
            hexString += hexChars[bytes[b] & 0x0F];
         }

         return hexString;
      }
   }
}

I could successfully read the RegVersion and default frequency values

'Microsoft.SPOT.Debugger.CorDebug.dll' (Managed): Loaded 'C:\Program Files (x86)\Secret Labs\Netduino SDK\Assemblies\v4.3\le\SecretLabs.NETMF.Hardware.dll', Symbols loaded.
The thread '' (0x2) has exited with code 0 (0x0).
Value = 0x6C
Value = 0x6C
Value = 0x6C
The program '[43] Micro Framework application: Managed' has exited with code 0 (0x0).



AdaFruit IO basic Netduino HTTP client

I use Netduino devices for teaching and my students often build projects which need a cloud based service like AdaFruit.IO to capture, store and display their sensor data.

My Proof of Concept (PoC) which uses a slightly modified version of the AdaFruit.IO basic desktop HTTP client code has been running on several Netduino 2 Plus, Netduino 3 Ethernet and Netduino 3 Wifi devices for the last couple of days and looks pretty robust.

The Netduino 3 Wifi device also supports https for improved security and privacy. They also make great field gateways as they can run off solar/battery power.

N2PN3WDashBoard

The devices have been uploading temperature and humidity measurements from a Silicon labs Si7005 sensor. (Outside sensor suffering from sunstrike)

N3WifiTemperatureAndHumiditySensor

program.cs

*

Copyright ® 2017 December devMobile Software, All Rights Reserved

THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
PURPOSE.

http://www.devmobile.co.nz

*/
using System;
using System.Net;
using System.Threading;
using Microsoft.SPOT;
using Microsoft.SPOT.Hardware;
using Microsoft.SPOT.Net.NetworkInformation;
using SecretLabs.NETMF.Hardware.Netduino;
using devMobile.NetMF.Sensor;
using devMobile.IoT.NetMF;

namespace devMobile.IoT.AdaFruitIO.NetMF.Client
{
   public class Program
   {
      private const string adaFruitIOApiBaseUrl = @"https://IO.adafruit.com/api/v2/";
      private const string group = "netduino3";
      private const string temperatureFeedKey = "t";
      private const string humidityFeedKey = "h";
      private const string adaFruitUserName = "YourUserName";
      private const string adaFruitIOApiKey = "YourAPIKey";
      private static readonly TimeSpan timerDueAfter = new TimeSpan(0, 0, 15);
      private static readonly TimeSpan timerPeriod = new TimeSpan(0, 0, 30);
      private static OutputPort led = new OutputPort(Pins.ONBOARD_LED, false);
      private static SiliconLabsSI7005 sensor = new SiliconLabsSI7005();
      private static AdaFruitIoClient adaFruitIoClient = new AdaFruitIoClient(adaFruitUserName, adaFruitIOApiKey, adaFruitIOApiBaseUrl);

      public static void Main()
      {
         // Wait for Network address if DHCP
         NetworkInterface networkInterface = NetworkInterface.GetAllNetworkInterfaces()[0];
         if (networkInterface.IsDhcpEnabled)
         {
            Debug.Print(" Waiting for DHCP IP address");

            while (NetworkInterface.GetAllNetworkInterfaces()[0].IPAddress == IPAddress.Any.ToString())
            {
               Debug.Print(" .");
               led.Write(!led.Read());
               Thread.Sleep(250);
            }
            led.Write(false);
         }

         // Display network config for debugging
         Debug.Print("Network configuration");
         Debug.Print(" Network interface type : " + networkInterface.NetworkInterfaceType.ToString());
         Debug.Print(" MAC Address : " + BytesToHexString(networkInterface.PhysicalAddress));
         Debug.Print(" DHCP enabled : " + networkInterface.IsDhcpEnabled.ToString());
         Debug.Print(" Dynamic DNS enabled : " + networkInterface.IsDynamicDnsEnabled.ToString());
         Debug.Print(" IP Address : " + networkInterface.IPAddress.ToString());
         Debug.Print(" Subnet Mask : " + networkInterface.SubnetMask.ToString());
         Debug.Print(" Gateway : " + networkInterface.GatewayAddress.ToString());

         foreach (string dnsAddress in networkInterface.DnsAddresses)
         {
            Debug.Print(" DNS Server : " + dnsAddress.ToString());
         }

         Timer humidityAndtemperatureUpdates = new Timer(HumidityAndTemperatureTimerProc, null, timerDueAfter, timerPeriod);

         Thread.Sleep(Timeout.Infinite);
      }

      static private void HumidityAndTemperatureTimerProc(object state)
      {
         led.Write(true);

         try
         {
            double humidity = sensor.Humidity();

            Debug.Print(" Humidity " + humidity.ToString("F0") + "%");
            adaFruitIoClient.FeedUpdate(group, humidityFeedKey, humidity.ToString("F0"));
         }
         catch (Exception ex)
         {
            Debug.Print("Humidifty read+update failed " + ex.Message);

            return;
         }

         try
         {
            double temperature = sensor.Temperature();

            Debug.Print(" Temperature " + temperature.ToString("F1") + "°C");
            adaFruitIoClient.FeedUpdate(group, temperatureFeedKey, temperature.ToString("F1"));
         }
         catch (Exception ex)
         {
            Debug.Print("Temperature read+update failed " + ex.Message);

            return;
         }

         led.Write(false);
      }

      private static string BytesToHexString(byte[] bytes)
      {
         string hexString = string.Empty;

         // Create a character array for hexidecimal conversion.
         const string hexChars = "0123456789ABCDEF";

         // Loop through the bytes.
         for (byte b = 0; b < bytes.Length; b++)          {             if (b > 0)
               hexString += "-";

            // Grab the top 4 bits and append the hex equivalent to the return string.
            hexString += hexChars[bytes[b] >> 4];

            // Mask off the upper 4 bits to get the rest of it.
            hexString += hexChars[bytes[b] & 0x0F];
         }

         return hexString;
      }
   }
}

AdaFruit.IO client.cs, handles feed groups and individual feeds

/*

Copyright ® 2017 December devMobile Software, All Rights Reserved

THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
PURPOSE.

http://www.devmobile.co.nz

*/
using System;
using System.IO;
using System.Net;
using System.Text;
using Microsoft.SPOT;

namespace devMobile.IoT.NetMF
{
   public class AdaFruitIoClient
   {
      private const string apiBaseUrlDefault = @"http://IO.adafruit.com/api/v2/";
      private string apiBaseUrl = "";
      private string userName = "";
      private string apiKey = "";
      private int httpRequestTimeoutmSec;
      private int httpRequestReadWriteTimeoutmSec;

      public AdaFruitIoClient(string userName, string apiKey, string apiBaseUrl = apiBaseUrlDefault, int httpRequestTimeoutmSec = 2500, int httpRequestReadWriteTimeoutmSec = 5000)
      {
         this.apiBaseUrl = apiBaseUrl;
         this.userName = userName;
         this.apiKey = apiKey;
         this.httpRequestReadWriteTimeoutmSec = httpRequestReadWriteTimeoutmSec;
         this.httpRequestTimeoutmSec = httpRequestTimeoutmSec;
      }

      public void FeedUpdate(string group, string feedKey, string value)
      {
         string feedUrl;

         if (group.Trim() == string.Empty)
         {
            feedUrl = apiBaseUrl + userName + @"/feeds/" + feedKey + @"/data";
         }
         else
         {
            feedUrl = apiBaseUrl + userName + @"/feeds/" + group.Trim() + "." + feedKey + @"/data";
         }

         HttpWebRequest request = (HttpWebRequest)WebRequest.Create(feedUrl);
         {
            string payload = @"{""value"": """ + value + @"""}";
            byte[] buffer = Encoding.UTF8.GetBytes(payload);

            DateTime httpRequestedStartedAtUtc = DateTime.UtcNow;

            request.Method = "POST";
            request.ContentLength = buffer.Length;
            request.ContentType = @"application/json";
            request.Headers.Add("X-AIO-Key", apiKey);
            request.KeepAlive = false;
            request.Timeout = this.httpRequestTimeoutmSec;
            request.ReadWriteTimeout = this.httpRequestReadWriteTimeoutmSec;

            using (Stream stream = request.GetRequestStream())
            {
               stream.Write(buffer, 0, buffer.Length);
            }

            using (var response = (HttpWebResponse)request.GetResponse())
            {
               Debug.Print(" Status: " + response.StatusCode + " : " + response.StatusDescription);
            }

            TimeSpan duration = DateTime.UtcNow - httpRequestedStartedAtUtc;
            Debug.Print(" Duration: " + duration.ToString());
         }
      }
   }
}

Bill of materials for PoC

Netduino 3 AnalogInput read rates

At CodeClub some of the students build a power consumption meter and as part of that project we measure the AnalogInput sample rates to check they are sufficient for our application.

Earlier this term when we measured the sampling rates in a CodeClub session we had a mix of Netduino 2 and Netduino 3 devices and some of the results differed from my previous observations. I used the same code on all the devices

int value;
AnalogInput x1 = new AnalogInput(Cpu.AnalogChannel.ANALOG_0);
stopwatch.Start();
for (int i = 0; i < SampleCount; i++)
{
value = x1.ReadRaw();
}
stopwatch.Stop();

Netduino Plus 2

Duration = 2081 mSec 48053/sec
Duration = 2082 mSec 48030/sec
Duration = 2081 mSec 48053/sec
Duration = 2081 mSec 48053/sec
Duration = 2082 mSec 48030/sec
Duration = 2081 mSec 48053/sec
Duration = 2081 mSec 48053/sec
Duration = 2081 mSec 48053/sec
Duration = 2081 mSec 48053/sec
Duration = 2081 mSec 48053/sec

Netduino 3

Duration = 2071 mSec 48285/sec
Duration = 2069 mSec 48332/sec
Duration = 2070 mSec 48309/sec
Duration = 2071 mSec 48285/sec
Duration = 2071 mSec 48285/sec
Duration = 2070 mSec 48309/sec
Duration = 2070 mSec 48309/sec
Duration = 2071 mSec 48285/sec
Duration = 2071 mSec 48285/sec
Duration = 2071 mSec 48285/sec

Netduino 3 Ethernet
Duration = 2136 mSec 46816/sec
Duration = 2137 mSec 46794/sec
Duration = 2136 mSec 46816/sec
Duration = 2135 mSec 46838/sec
Duration = 2135 mSec 46838/sec
Duration = 2137 mSec 46794/sec
Duration = 2137 mSec 46794/sec
Duration = 2135 mSec 46838/sec
Duration = 2136 mSec 46816/sec
Duration = 2135 mSec 46838/sec

Netduino 3 Wifii
Duration = 3902 mSec 25627/sec
Duration = 3901 mSec 25634/sec
Duration = 3902 mSec 25627/sec
Duration = 3902 mSec 25627/sec
Duration = 3901 mSec 25634/sec
Duration = 3903 mSec 25621/sec
Duration = 3903 mSec 25621/sec
Duration = 3902 mSec 25627/sec
Duration = 3902 mSec 25627/sec
Duration = 3903 mSec 25621/sec

The results for the Netduino 3 & Netduino 3 Ethernet were comparable with the Netduino Plus 2 in my earlier post. The reduction in the sampling rate of the Netduino 3 Wifi warrants some further investigation.
