nRF24L01-TinyCLR V2 RC2 on Github

The source code of RC2 of my port GHI Electronics TinyCLR-0SV2RC1 nRF24L01 library is live on GitHub. The sample application now supports Fezduino (with embeddedcoolness.com or other Arduino shield), Fezportal and the SC2010 Dev board (with mikroe nrf24C Click, mikroe nRF24S Click or mikroenRF24T Click) .

Fezduino with Embedded Coolness shield
Fezportal with Mikroe nRF24 C Click
SC20100 Dev board

The application has gained four compile time configuration options

  • TINYCLR_V2_SC20100DEV_MIKROBUS_1
  • TINYCLR_V2_SC20100DEV_MIKROBUS_2
  • TINYCLR_V2_FEZDUINO
  • TINYCLR_V2_FEZPORTAL

These options configure the chip enable, chip selected and interrupt pins.

//---------------------------------------------------------------------------------
// Copyright (c) May 2020, devMobile Software
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
// Need one of TINYCLR_V2_SC20100DEV_MIKROBUS_1/TINYCLR_V2_SC20100DEV_MIKROBUS_2/TINYCLR_V2_FEZDUINO/TINYCLR_V2_FEZPORTAL defined
//---------------------------------------------------------------------------------
namespace devMobile.IoT.FieldGateway.TinyCLRV2nRF24Client
{
   using System;
   using System.Diagnostics;
   using System.Text;
   using System.Threading;

   using GHIElectronics.TinyCLR.Pins;

   using Radios.RF24;

   class Program
   {
      private const string BaseStationAddress = "Base1";
      private const string DeviceAddress = "Dev01";

      static void Main()
      {
         RF24 radio = new RF24();
         byte messageCount = System.Byte.MaxValue;

         try
         {
            radio.OnDataReceived += Radio_OnDataReceived;
            radio.OnTransmitFailed += Radio_OnTransmitFailed;
            radio.OnTransmitSuccess += Radio_OnTransmitSuccess;

#if TINYCLR_V2_SC20100DEV_MIKROBUS_1
            radio.Initialize(SC20100.SpiBus.Spi3, SC20100.GpioPin.PD4, SC20100.GpioPin.PD3, SC20100.GpioPin.PC5);
#endif
#if TINYCLR_V2_SC20100DEV_MIKROBUS_2
            radio.Initialize(SC20100.SpiBus.Spi3, SC20100.GpioPin.PD15, SC20100.GpioPin.PD14, SC20100.GpioPin.PA8);
#endif
#if TINYCLR_V2_FEZDUINO
            radio.Initialize(SC20100.SpiBus.Spi6, SC20100.GpioPin.PE11, SC20100.GpioPin.PC4, SC20100.GpioPin.PA1);
#endif
#if TINYCLR_V2_FEZPORTAL
            radio.Initialize(SC20100.SpiBus.Spi3, SC20100.GpioPin.PD4, SC20100.GpioPin.PC13, SC20100.GpioPin.PC2);
#endif
            radio.Address = Encoding.UTF8.GetBytes(DeviceAddress);

            radio.Channel = 15;
            radio.PowerLevel = PowerLevel.Minimum;
            radio.DataRate = DataRate.DR250Kbps;
            radio.IsEnabled = true;

            radio.IsAutoAcknowledge = true;
            radio.IsDyanmicAcknowledge = false;
            radio.IsDynamicPayload = true;

            Debug.WriteLine($"Address: {Encoding.UTF8.GetString(radio.Address)}");
            Debug.WriteLine($"PowerLevel: {radio.PowerLevel}");
            Debug.WriteLine($"IsAutoAcknowledge: {radio.IsAutoAcknowledge}");
            Debug.WriteLine($"Channel: {radio.Channel}");
            Debug.WriteLine($"DataRate: {radio.DataRate}");
            Debug.WriteLine($"IsDynamicAcknowledge: {radio.IsDyanmicAcknowledge}");
            Debug.WriteLine($"IsDynamicPayload: {radio.IsDynamicPayload}");
            Debug.WriteLine($"IsEnabled: {radio.IsEnabled}");
            Debug.WriteLine($"Frequency: {radio.Frequency}");
            Debug.WriteLine($"IsInitialized: {radio.IsInitialized}");
            Debug.WriteLine($"IsPowered: {radio.IsPowered}");

            while (true)
            {
               string payload = $"hello {messageCount}";
               messageCount -= 1;

               Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-TX {payload.Length} byte message {payload}");
               radio.SendTo(Encoding.UTF8.GetBytes(BaseStationAddress), Encoding.UTF8.GetBytes(payload));

               Thread.Sleep(30000);
            }
         }
         catch (Exception ex)
         {
            Debug.WriteLine(ex.Message);
         }
      }

      private static void Radio_OnDataReceived(byte[] data)
      {
         // display as hex
         Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-RX Hex Length {data.Length} Payload {BitConverter.ToString(data)}");

         // Display as Unicode
         string unicodeText = Encoding.UTF8.GetString(data);
         Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-RX Unicode Length {unicodeText.Length} Unicode text {unicodeText}");
      }

      private static void Radio_OnTransmitSuccess()
      {
         Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-TX Succeeded!");
      }

      private static void Radio_OnTransmitFailed()
      {
         Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-TX failed!");
      }
   }
}

TinyCLR OS V2 nRF24L01 library Part2

After sorting out Serial Peripheral Interface(SPI) connectivity the next step porting the techfooninja nRF24L01P library to GHI Electronics TinyCLR was rewriting the initialisation code. Overall changes were minimal as the TinyCLR V2 SPI library has similar methods to the Windows 10 IoT Core ones.

SC20100 and MikroE nRF24 C Click

I need to refactor the initialise method so that failure exceptions are not caught and add the interrupt trigger edge so I can remove test from the handler.

      public void Initialize(string spiPortName, byte chipEnablePin, byte chipSelectPin, byte interruptPin, int clockFrequency = 2000000)
      {
         var gpio = GpioController.GetDefault();

         if (gpio == null)
         {
            Debug.WriteLine("GPIO Initialization failed.");
         }
         else
         {
            _cePin = gpio.OpenPin(chipEnablePin);
            _cePin.SetDriveMode(GpioPinDriveMode.Output);
            _cePin.Write(GpioPinValue.Low);

            _irqPin = gpio.OpenPin((byte)interruptPin);
            _irqPin.SetDriveMode(GpioPinDriveMode.InputPullUp);
            _irqPin.Write(GpioPinValue.High);
            _irqPin.ValueChanged += _irqPin_ValueChanged;
         }

         try
         {
            var settings = new SpiConnectionSettings()
            {
               ChipSelectType = SpiChipSelectType.Gpio,
               ChipSelectLine = gpio.OpenPin(chipSelectPin),
               Mode = SpiMode.Mode0,
               ClockFrequency = clockFrequency,
               ChipSelectActiveState = false,
            };

            SpiController controller = SpiController.FromName(spiPortName);
            _spiPort = controller.GetDevice(settings);
         }
         catch (Exception ex)
         {
            Debug.WriteLine("SPI Initialization failed. Exception: " + ex.Message);
            return;
         }

         // Module reset time
         Thread.Sleep(100);

         IsInitialized = true;

         // Set reasonable default values
         Address = Encoding.UTF8.GetBytes("NRF1");
         DataRate = DataRate.DR2Mbps;
         IsDynamicPayload = true;
         IsAutoAcknowledge = true;

         FlushReceiveBuffer();
         FlushTransferBuffer();
         ClearIrqMasks();
         SetRetries(5, 60);

         // Setup, CRC enabled, Power Up, PRX
         SetReceiveMode();
      }

The Initialise method gained parameters for the SPI port name and SPI clock frequency.

      static void Main()
      {
         RF24 Radio = new RF24();

         try
         {
            Radio.OnDataReceived += Radio_OnDataReceived;
            Radio.OnTransmitFailed += Radio_OnTransmitFailed;
            Radio.OnTransmitSuccess += Radio_OnTransmitSuccess;

            // SC20100.GpioPin.PD3
            Radio.Initialize(SC20100.SpiBus.Spi3, SC20100.GpioPin.PD4, SC20100.GpioPin.PD3, SC20100.GpioPin.PC5);
            Radio.Address = Encoding.UTF8.GetBytes(DeviceAddress);

            Radio.Channel = 15;
            //Radio.PowerLevel = PowerLevel.Max;
            //Radio.PowerLevel = PowerLevel.High;
            //Radio.PowerLevel = PowerLevel.Low;
            //Radio.PowerLevel = PowerLevel.Minimum
            Radio.DataRate = DataRate.DR250Kbps;
            //Radio.DataRate = DataRate.DR1Mbps;
            Radio.IsEnabled = true;

            Radio.IsAutoAcknowledge = true;
            Radio.IsDyanmicAcknowledge = false;
            Radio.IsDynamicPayload = true;

            Debug.WriteLine($"Address: {Encoding.UTF8.GetString(Radio.Address)}");
            Debug.WriteLine($"PowerLevel: {Radio.PowerLevel}");
            Debug.WriteLine($"IsAutoAcknowledge: {Radio.IsAutoAcknowledge}");
            Debug.WriteLine($"Channel: {Radio.Channel}");
            Debug.WriteLine($"DataRate: {Radio.DataRate}");
            Debug.WriteLine($"IsDynamicAcknowledge: {Radio.IsDyanmicAcknowledge}");
            Debug.WriteLine($"IsDynamicPayload: {Radio.IsDynamicPayload}");
            Debug.WriteLine($"IsEnabled: {Radio.IsEnabled}");
            Debug.WriteLine($"Frequency: {Radio.Frequency}");
            Debug.WriteLine($"IsInitialized: {Radio.IsInitialized}");
            Debug.WriteLine($"IsPowered: {Radio.IsPowered}");

            while (true)
            {
               string payload = "hello " + DateTime.Now.Second;
               Debug.WriteLine($"{DateTime.UtcNow:HH:mm:ss}-TX {payload.Length} byte message {payload}");
               Radio.SendTo(Encoding.UTF8.GetBytes(BaseStationAddress), Encoding.UTF8.GetBytes(payload));

               Thread.Sleep(30000);
            }
         }
         catch (Exception ex)
         {
            Debug.WriteLine(ex.Message);

            return;
         }
      }

I can send and receive messages but the PowerLevel doesn’t look right so I need to apply fix from the Meadow version.

The thread '<No Name>' (0x2) has exited with code 0 (0x0).
Address: Dev01
PowerLevel: 15
IsAutoAcknowledge: True
Channel: 15
DataRate: 2
IsDynamicAcknowledge: False
IsDynamicPayload: True
IsEnabled: False
Frequency: 2415
IsInitialized: True
IsPowered: True
00:00:01-TX 7 byte message hello 1
Data Sent!
00:00:01-TX Succeeded!
00:00:31-TX 8 byte message hello 31
Data Sent!
00:00:31-TX Succeeded!

TinyCLR OS V2 nRF24L01 library Part1

After debugging Windows 10 IoT Core, .NetMF and Wilderness Labs Meadow nRF24L01P libraries I figured yet another port, this time to a GHI Electronics Tiny CLR V2 powered device shouldn’t be “rocket science”.

This test rig uses SC20100S Dev and MikroE nRF C Click boards.

//---------------------------------------------------------------------------------
// Copyright (c) May 2020, devMobile Software
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
//---------------------------------------------------------------------------------
namespace devMobile.IoT.nRf24L01.ModuleSPI
{
   using System;
   using System.Diagnostics;
   using System.Reflection;
   using System.Text;
   using System.Threading;

   using GHIElectronics.TinyCLR.Devices.Gpio;
   using GHIElectronics.TinyCLR.Devices.Spi;
   using GHIElectronics.TinyCLR.Pins;

   class Program
   {
      const byte SETUP_AW = 0x03;
      const byte RF_CH = 0x05;
      const byte RX_ADDR_P0 = 0x0A;
      const byte R_REGISTER = 0b00000000;
      const byte W_REGISTER = 0b00100000;
      const string P0_Address = "ZYXWV";
      static SpiDevice nrf24L01Device;

      static void Main()
      {
         try
         {
            GpioController gpioController = GpioController.GetDefault();

            var settings = new SpiConnectionSettings()
            {
               ChipSelectType = SpiChipSelectType.Gpio,
               //ChipSelectLine = FEZ.GpioPin.D10,
               ChipSelectLine = gpioController.OpenPin(SC20100.GpioPin.PD3),
               Mode = SpiMode.Mode0,
               //Mode = SpiMode.Mode1,
               //Mode = SpiMode.Mode2,
               //Mode = SpiMode.Mode3,
               ClockFrequency = 500000,
               //ChipSelectActiveState = true
               ChipSelectActiveState = false,
               //ChipSelectHoldTime = new TimeSpan(0, 0, 0, 0, 500),
               //ChipSelectSetupTime = new TimeSpan(0, 0, 0, 0, 500),
            };

            var spiController = SpiController.FromName(SC20100.SpiBus.Spi3);

            Debug.WriteLine("nrf24L01Device Device...");
            nrf24L01Device = spiController.GetDevice(settings);
            if (nrf24L01Device == null)
            {
               Debug.WriteLine("nrf24L01Device == null");
            }

            Thread.Sleep(100);

            Debug.WriteLine("ConfigureSpiPort Done...");
            Debug.WriteLine("");

            Thread.Sleep(500);
         }
         catch (Exception ex)
         {
            Debug.WriteLine("Configure SpiPort " + ex.Message);
         }

         try
         {
            // Read the Address width
            Debug.WriteLine("Read address width");
            byte[] txBuffer1 = new byte[] { SETUP_AW | R_REGISTER, 0x0 };
            byte[] rxBuffer1 = new byte[txBuffer1.Length];

            Debug.WriteLine(" nrf24L01Device.TransferFullDuplex...SETUP_AW");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer1));
            nrf24L01Device.TransferFullDuplex(txBuffer1, rxBuffer1);
            Debug.WriteLine(" rxBuffer:" + BitConverter.ToString(rxBuffer1));

            // Extract then adjust the address width
            byte addressWidthValue = rxBuffer1[1];
            addressWidthValue &= 0b00000011;
            addressWidthValue += 2;
            Debug.WriteLine($"Address width 0x{SETUP_AW:x2} - Value 0X{rxBuffer1[1]:x2} Value adjusted {addressWidthValue}");
            Debug.WriteLine("");

            // Write Pipe0 Receive address
            Debug.WriteLine($"Write Pipe0 Receive Address {P0_Address}");
            byte[] txBuffer2 = new byte[addressWidthValue + 1];
            txBuffer2[0] = RX_ADDR_P0 | W_REGISTER;
            Array.Copy(Encoding.UTF8.GetBytes(P0_Address), 0, txBuffer2, 1, addressWidthValue);

            Debug.WriteLine(" nrf24L01Device.Write...RX_ADDR_P0");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer2));
            nrf24L01Device.Write(txBuffer2);
            Debug.WriteLine("");

            // Read Pipe0 Receive address
            Debug.WriteLine("Read Pipe0 Receive address");
            byte[] txBuffer3 = new byte[addressWidthValue + 1];
            txBuffer3[0] = RX_ADDR_P0 | R_REGISTER;
            byte[] rxBuffer3 = new byte[txBuffer3.Length];

            Debug.WriteLine(" nrf24L01Device.TransferFullDuplex...RX_ADDR_P0");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer3));
            nrf24L01Device.TransferFullDuplex(txBuffer3, rxBuffer3);
            Debug.WriteLine(" rxBuffer:" + BitConverter.ToString(rxBuffer3));
            Debug.WriteLine($"Address 0x{RX_ADDR_P0:x2} Address {UTF8Encoding.UTF8.GetString(rxBuffer3, 1, addressWidthValue)}");
            Debug.WriteLine("");

            // Read the RF Channel
            Debug.WriteLine("RF Channel read 1");
            byte[] txBuffer4 = new byte[] { RF_CH | R_REGISTER, 0x0 };
            byte[] rxBuffer4 = new byte[txBuffer4.Length];

            Debug.WriteLine(" nrf24L01Device.TransferFullDuplex...RF_CH");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer4));
            nrf24L01Device.TransferFullDuplex(txBuffer4, rxBuffer4);
            Debug.WriteLine(" rxBuffer:" + BitConverter.ToString(rxBuffer4));

            ushort rfChannel1 = rxBuffer4[1];
            rfChannel1 += 2400;
            Debug.WriteLine($"RF Channel 1 0x{RF_CH:x2} - Value 0X{rxBuffer4[1]:x2} - Value adjusted {rfChannel1}");
            Debug.WriteLine("");

            // Write the RF Channel
            Debug.WriteLine("RF Channel write");
            byte[] txBuffer5 = new byte[] { RF_CH | W_REGISTER, rxBuffer4[1]+=1};

            Debug.WriteLine(" nrf24L01Device.Write...RF_CH");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer5));
            nrf24L01Device.Write(txBuffer5);
            Debug.WriteLine("");

            // Read the RF Channel
            Debug.WriteLine("RF Channel read 2");
            byte[] txBuffer6 = new byte[] { RF_CH | R_REGISTER, 0x0 };
            byte[] rxBuffer6 = new byte[txBuffer6.Length];

            Debug.WriteLine(" nrf24L01Device.TransferFullDuplex...RF_CH");
            Debug.WriteLine(" txBuffer:" + BitConverter.ToString(txBuffer6));
            nrf24L01Device.TransferFullDuplex(txBuffer6, rxBuffer6);
            Debug.WriteLine(" rxBuffer:" + BitConverter.ToString(rxBuffer6));

            ushort rfChannel2 = rxBuffer6[1];
            rfChannel2 += 2400;
            Debug.WriteLine($"RF Channel 2 0x{RF_CH:x2} - Value 0X{rxBuffer6[1]:x2} - Value adjusted {rfChannel2}");
            Debug.WriteLine("");
         }
         catch (Exception ex)
         {
            Debug.WriteLine("Configure Port0 " + ex.Message);
         }
      }
   }
}

After lots of tinkering with SPI configuration options I can read and write my nRF24L01 device receive port address

The thread '<No Name>' (0x2) has exited with code 0 (0x0).
nrf24L01Device Device...
ConfigureSpiPort Done...

Read address width
 nrf24L01Device.TransferFullDuplex...SETUP_AW
 txBuffer:03-00
 rxBuffer:0E-03
Address width 0x03 - Value 0X03 Value adjusted 5

Write Pipe0 Receive Address ZYXWV
 nrf24L01Device.Write...RX_ADDR_P0
 txBuffer:2A-5A-59-58-57-56

Read Pipe0 Receive address
 nrf24L01Device.TransferFullDuplex...RX_ADDR_P0
 txBuffer:0A-00-00-00-00-00
 rxBuffer:0E-5A-59-58-57-56
Address 0x0a Address ZYXWV

RF Channel read 1
 nrf24L01Device.TransferFullDuplex...RF_CH
 txBuffer:05-00
 rxBuffer:0E-15
RF Channel 1 0x05 - Value 0X15 - Value adjusted 2421

RF Channel write
 nrf24L01Device.Write...RF_CH
 txBuffer:25-16

RF Channel read 2
 nrf24L01Device.TransferFullDuplex...RF_CH
 txBuffer:05-00
 rxBuffer:0E-16
RF Channel 2 0x05 - Value 0X16 - Value adjusted 2422

Mikrobus.Net Quail Robot

In a previous post I had replaced a Netduino and Elecfreaks Joystick shield based remote control with a MikrobusNet Quail, thumbstick click and an nRF-C click. The next step was to replace the Netduino on the robot chassis with a MikrobusNet Quail, a pair of DC Motor Clicks and an nRF-C click.

Bill of materials (prices in USD as at Feb 2016)

The first version of the robot uses a pair of battery packs one for the motors the other for the Quail board.

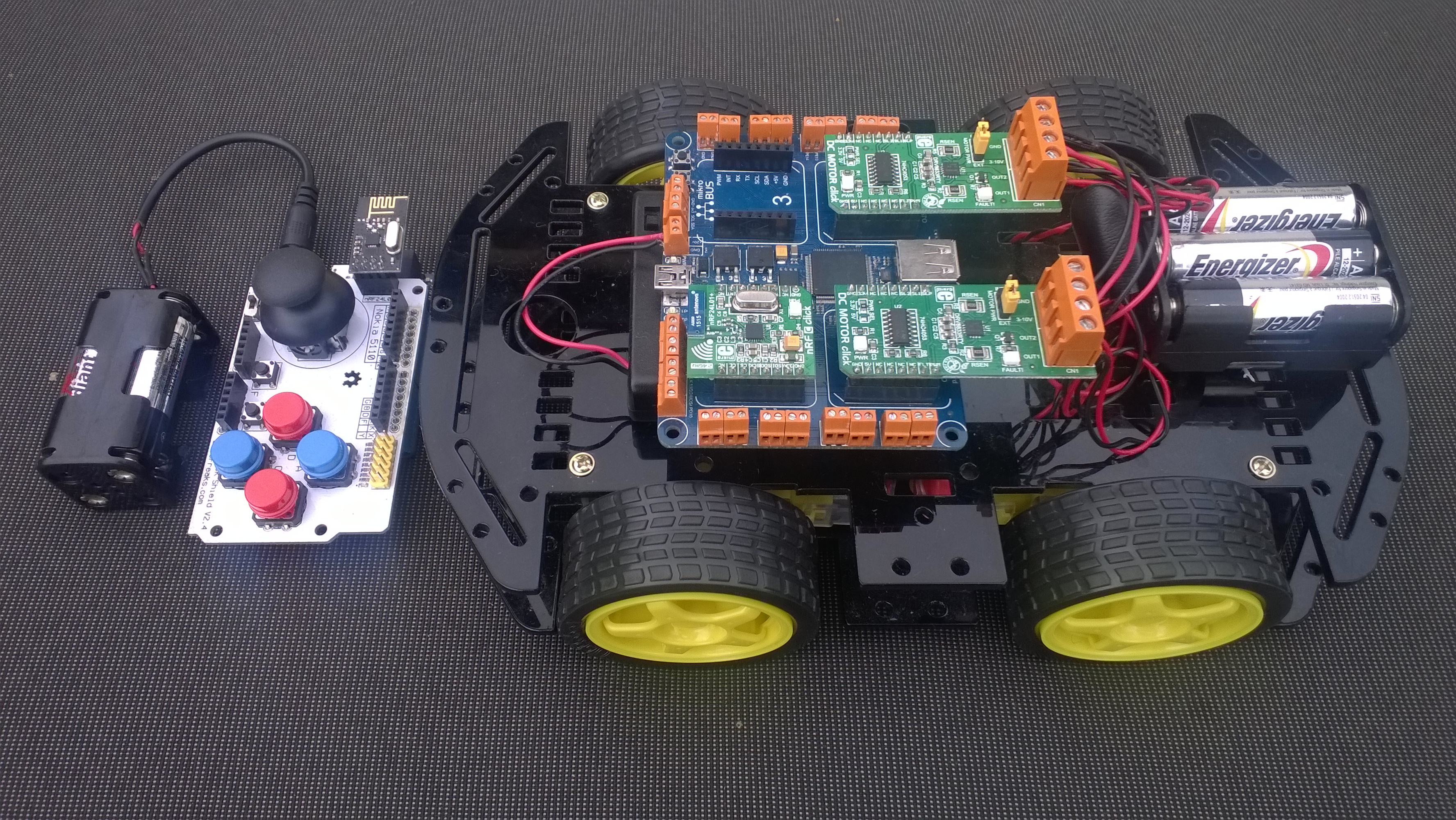

MikrobusNetQual4WDRobot

The drivers developed by MikroBUSNet team greatly reduced the amount of code I had to write to get the robot to work.

public class Program
{
   private static double Scale = 100.0;
   private static byte RobotControlChannel = 10;
   private static byte[] ControllerAddress = Encoding.UTF8.GetBytes("RC1");
   private static byte[] RobotAddress = Encoding.UTF8.GetBytes("RB1");
   private static TimeSpan MessageMaximumInterval = new TimeSpan(0, 0, 1);
   private static DateTime _MessageLastReceivedAt = DateTime.UtcNow;
   private static DCMotorClick motor1 = new DCMotorClick(Hardware.SocketOne);
   private static DCMotorClick motor2 = new DCMotorClick(Hardware.SocketTwo);

public static void Main()
{
   NRFC nrf = new NRFC(Hardware.SocketFour);
   nrf.Configure(RobotAddress, RobotControlChannel);
   nrf.OnTransmitFailed += nrf_OnTransmitFailed;
   nrf.OnTransmitSuccess += nrf_OnTransmitSuccess;
   nrf.OnDataReceived += nrf_OnDataReceived;
   nrf.Enable();

   Timer CommunicationsMonitorTimer = new Timer(CommunicationsMonitorTimerProc, null, 500, 500);

   Thread.Sleep(Timeout.Infinite);
}

static void nrf_OnDataReceived(byte[] data)
{
   Hardware.Led1.Write(true);
   _MessageLastReceivedAt = DateTime.UtcNow;

   if (data.Length != 5)
   {
   return;
   }

   Debug.Print("M1D=" + data[0].ToString() + " M2D=" + data[1].ToString() + " M1S=" + data[2].ToString() + " M2S=" + data[3].ToString());
   if (data[0] == 1)
   {
      motor1.Move(DCMotorClick.Directions.Forward, (data[2] / Scale ));
   }
   else
   {
     motor1.Move(DCMotorClick.Directions.Backward, (data[2] / Scale ));
   }

   if (data[1] == 1)
   {
      motor2.Move(DCMotorClick.Directions.Forward, (data[3] / Scale ));
   }
   else
   {
      motor2.Move(DCMotorClick.Directions.Backward, (data[3] / Scale ));
   }
}

private static void CommunicationsMonitorTimerProc(object status)
{
   if ((DateTime.UtcNow - _MessageLastReceivedAt) > MessageMaximumInterval)
   {
      Debug.Print("Communications timeout");

      motor1.Move(MBN.Modules.DCMotorClick.Directions.Forward, 0.0);
      motor2.Move(MBN.Modules.DCMotorClick.Directions.Forward, 0.0);
   }
}

I have kept the communications monitoring functionality which stops the motors when the robot gets out of range of the remote control software fails.







Mikrobus.Net Quail Robot Remote Control

In a previous pair of posts  (part1 & part2) in February 2014 I built a 4WD Robot and remote control using a pair of Netduinos, an elecfreaks Smart Car Chassis 4WD, an elecfreaks joystick 2.4, an Embedded coolness nRF24Lo1 shield and a Pololu MC33926 motor shield.

My Quail device looked like a good platform for building a handheld control with a different form factor.

Bill of materials (prices in USD as at Jan 2016)

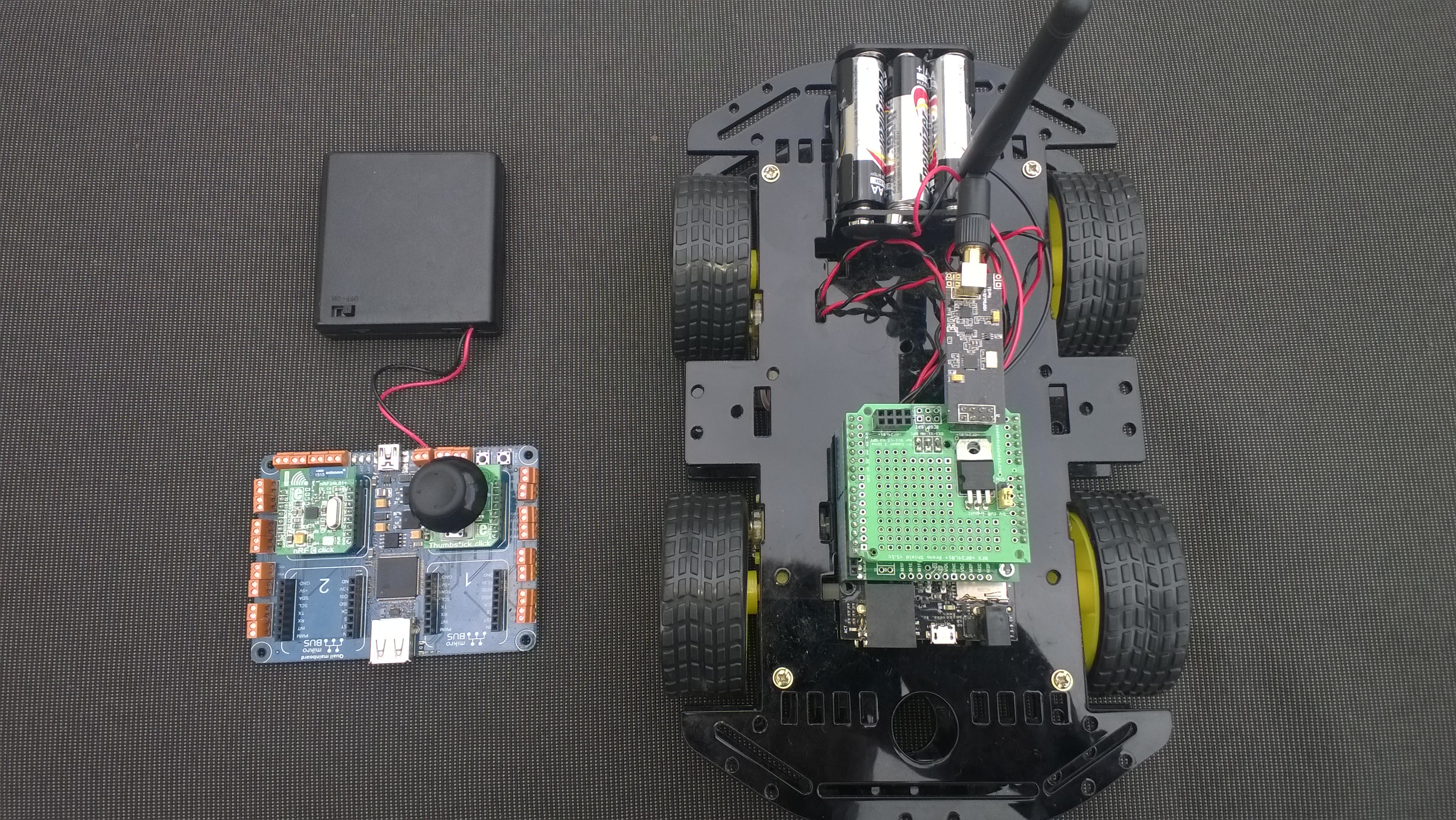

Quail4WDRobotController

The Quail device and battery pack aren’t quite small enough to work with one hand. A Mikrobus.Net Dalmatian or Tuatara based remote might be easier to use.

I tried using the thumbstick button pushed message for the horn functionality but it made the throttle and heading jump.

The first version of the code is just to test the wireless link, the motor speed code needs a little work.(Currently the device won’t rotate with motors going in opposite directions)

public class Program
{
   private const double Deadband = 0.1;
   private static double Scale = 100.0;
   private static byte RobotControlChannel = 10;
   private static byte[] ControllerAddress = Encoding.UTF8.GetBytes(&amp;quot;RC1&amp;quot;);
   private static byte[] RobotAddress = Encoding.UTF8.GetBytes(&amp;quot;RB1&amp;quot;);

   public static void Main()
   {
      ThumbstickClick thumbStick = new ThumbstickClick(Hardware.SocketThree);
      thumbStick.ThumbstickOrientation = ThumbstickClick.Orientation.RotateZeroDegrees;
      thumbStick.Calibrate();

      NRFC nrf = new NRFC(Hardware.SocketFour);
      nrf.Configure(ControllerAddress, RobotControlChannel );
      nrf.OnTransmitFailed += nrf_OnTransmitFailed;
      nrf.OnTransmitSuccess += nrf_OnTransmitSuccess;
      nrf.Enable();

      while (true)
      {
         byte motor1Direction, motor2Direction;
         byte motor1Speed, motor2Speed;
         double x = thumbStick.GetPosition().X;
         double y = thumbStick.GetPosition().Y;

         Debug.Print("X=: + x.ToString("F1") + " Y=" + y.ToString("F1") + " IsPressed=" + thumbStick.IsPressed);

         // See if joystick x or y is in centre deadband
         if (System.Math.Abs(x) < Deadband)
         {
            x = 0.0;
         }

         // See if joystick y is in centre deadband
         if (System.Math.Abs(y) < Deadband)
         {
            y = 0.0;
         }

         // Set direction of both motors, no swivel on spot yet
         if (y >= 0.0)
         {
            motor1Direction = (byte)1;
            motor2Direction = (byte)1;
         }
         else
         {
            motor1Direction = (byte)0;
            motor2Direction = (byte)0;
         }

         // Straight ahead/backward
         if (x == 0.0)
         {
            motor1Speed = (byte)(System.Math.Abs(y) * Scale);
            motor2Speed = (byte)(System.Math.Abs(y) * Scale);
         }
         // Turning right
         else if (x > 0.0)
         {
            motor1Speed = (byte)(System.Math.Abs(y) * Scale);
            motor2Speed = (byte)(System.Math.Abs(y) * (1.0 - System.Math.Abs(x)) * Scale);
         }
         // Turning left
         else
         {
            motor1Speed = (byte)(System.Math.Abs(y) * (1.0 - System.Math.Abs(x)) * Scale);
            motor2Speed = (byte)(System.Math.Abs(y) * Scale);
         }

         Debug.Print("X=" + x.ToString("F1") + " Y=" + y.ToString("F1") + " IsPressed=" + thumbStick.IsPressed + " M1D=" + motor1Direction.ToString() + " M2D=" + motor2Direction.ToString() + " M1S=" + motor1Speed.ToString() + " M2S=" + motor2Speed.ToString());

         byte[] command =
         {
            motor1Direction,
            motor2Direction,
            motor1Speed,
            motor2Speed,
            (byte)0)
         };
         nrf.SendTo(RobotAddress, command );

         MBN.Hardware.Led1.Write(true);

         Thread.Sleep(250);
      }
   }

   static void nrf_OnTransmitSuccess()
   {
     MBN.Hardware.Led1.Write(false);
     Debug.Print("nrf_OnTransmitSuccess");
   }

   static void nrf_OnTransmitFailed()
   {
      Debug.Print("nrf_OnTransmitFailed");
   }
}

The Mikrobus.Net team have done a great job with the number and quality of the drivers for the Mikroe click boards. The Mikroe click boards are individually packaged with professionally written click specific and handling instructions.

Mikrobus.Net Quail, Weather & nRF-C clicks and xively

My next proof of concept uses a Weather click and nRF C click to upload temperature and humidity data to a Xively gateway running on a spare Netduino 2 Plus. I have a couple of Azure Event hub gateways (direct & queued) which require a Netduino 3 Wifi (for TLS/AMQPS support) and I’ll build a client for them in a coming post.

I initially purchased an nRF T click but something wasn’t quite right with its interrupt output. The interrupt line wasn’t getting pulled low at all so there were no send success/failure events. If I disabled the pull up resistor and strobed the interrupt pin on start-up the device would work for a while.


using (OutputPort Int = new OutputPort(socket.Int, true))
{
 Int.Write(true);
};

...

_irqPin = new InterruptPort(socket.Int, false, Port.ResistorMode.Disabled, Port.InterruptMode.InterruptEdgeLow);

The code sends a reading every 10 seconds and has been running for a couple of days. It strobes Led1 for each successful send and turns on Led2 when a send fails.

private static readonly byte[] deviceAddress = Encoding.UTF8.GetBytes(&quot;Quail&quot;);
private static readonly byte[] gatewayAddress = Encoding.UTF8.GetBytes(&quot;12345&quot;);
private const byte gatewayChannel = 10;
private const NRFC.DataRate gatewayDataRate = NRFC.DataRate.DR1Mbps;
private const int XivelyUpdateDelay = 10000;
private const char XivelyGatewayChannelIdTemperature = 'J';
private const char XivelyGatewayChannelIdHumidity = 'K';

public static void Main()
{
   NRFC nRF24Click = new NRFC(Hardware.SocketFour);
   nRF24Click.Configure(deviceAddress, gatewayChannel, gatewayDataRate);
   nRF24Click.OnTransmitFailed += nRF24Click_OnTransmitFailed;
   nRF24Click.OnTransmitSuccess += nRF24Click_OnTransmitSuccess;
   nRF24Click.Enable();

   // Configure the weather click
   WeatherClick weatherClick = new WeatherClick(Hardware.SocketOne, WeatherClick.I2CAddresses.Address0);
   weatherClick.SetRecommendedMode(WeatherClick.RecommendedModes.WeatherMonitoring);

   Thread.Sleep(XivelyUpdateDelay);

   while (true)
   {
      string temperatureMessage = XivelyGatewayChannelIdTemperature + weatherClick.ReadTemperature().ToString("F1");
      Debug.Print(temperatureMessage);
      MBN.Hardware.Led1.Write(true);
      nRF24Click.SendTo(gatewayAddress, Encoding.UTF8.GetBytes(temperatureMessage));

      Thread.Sleep(XivelyUpdateDelay);

      string humidityMessage = XivelyGatewayChannelIdHumidity + weatherClick.ReadHumidity().ToString("F1");
      Debug.Print(humidityMessage);
      MBN.Hardware.Led1.Write(true);
      nRF24Click.SendTo(gatewayAddress, Encoding.UTF8.GetBytes(humidityMessage));

      Thread.Sleep(XivelyUpdateDelay);
   }
}

static void nRF24Click_OnTransmitSuccess()
{
   MBN.Hardware.Led1.Write(false);
   if (MBN.Hardware.Led2.Read())
   {
      MBN.Hardware.Led2.Write(false);
   }

   Debug.Print("nRF24Click_OnTransmitSuccess");
}

static void nRF24Click_OnTransmitFailed()
{
   MBN.Hardware.Led2.Write(true);

   Debug.Print("nRF24Click_OnTransmitFailed");
}

I need to have a look at interfacing some more sensors and soak testing the solution.

The MikroBus.Net team have done a great job with the number & quality of the drivers they have available.

Mikrobus.Net Quail, EthClick and xively

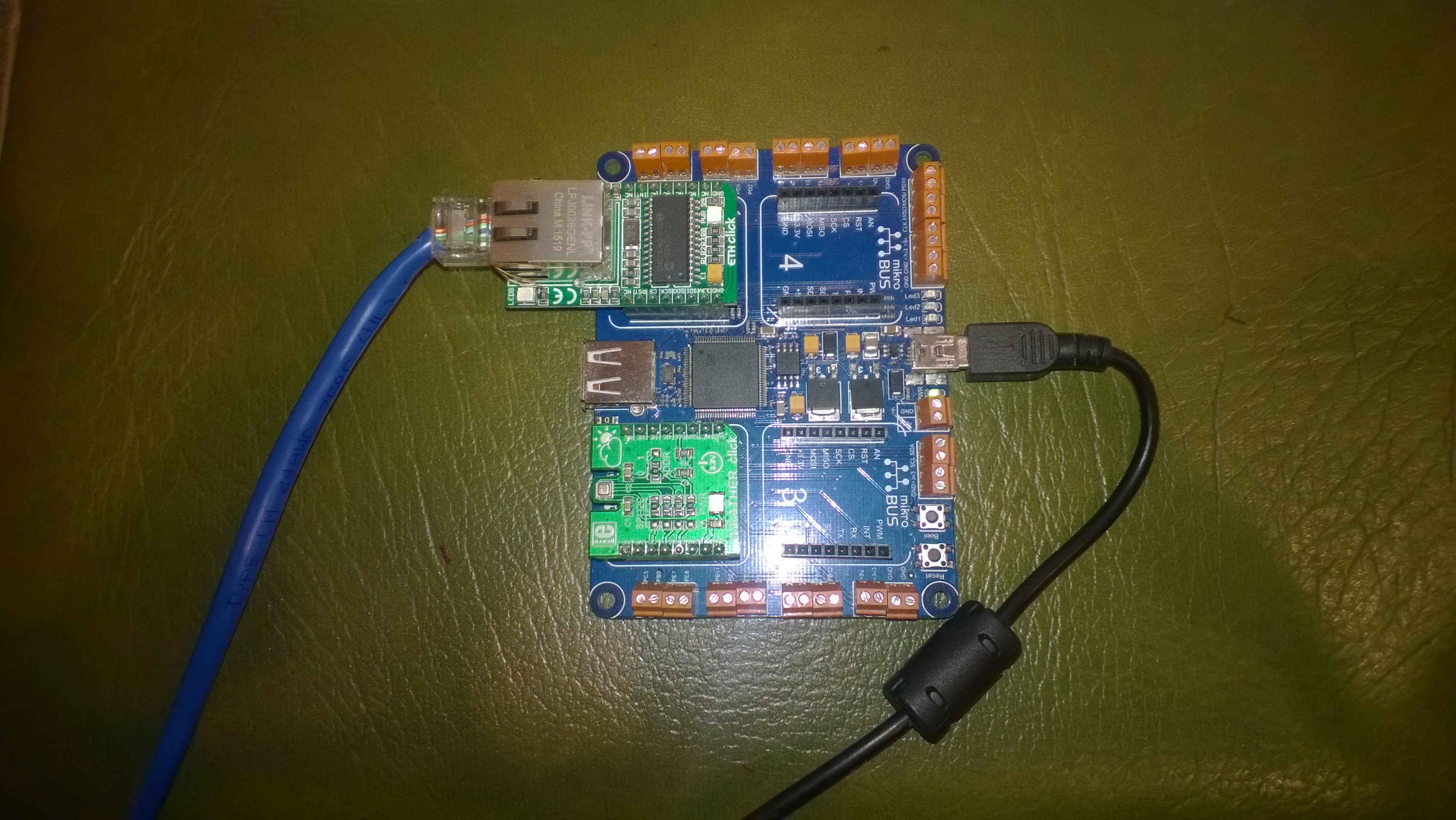

My second proof of concept application for the Mikrobus.Net Quail and EthClick uploads temperature and humidity data to Xively every 30 seconds for display and analysis.

Temperature and humidity Xively data stream

Temperature and humidity Xively data stream

The Xively REST API uses an HTTP PUT which initially didn’t work because the payload was not getting attached.

I patched the AssembleRequest method in the EtherClick driver to fix this issue.

private byte[] AssembleRequest()
{
   var a = RequestType;
   a += " " + Path + " " + Protocol + "\r\nHost: ";
   a += Host + "\r\n";

   foreach (object aHeader in Headers.Keys)
      a += (string)aHeader + ": " + (string)Headers[aHeader] + "\r\n";

   a += "\r\n"; // Cache-Control: no-cache\r\n  //Accept-Charset: utf-8;\r\n

   if (Content != null && Content != string.Empty && (RequestType == "POST" || RequestType == "PUT")) a += Content;

   return Encoding.UTF8.GetBytes(a);
}

The code reads the WeatherClick temperature and humidity values then assembles a CSV payload which it uploads with an HTTP PUT

</pre>
public class Program
{
   private const string xivelyHost = @"api.xively.com";
   private const string xivelyApiKey = @"YourAPIKey";
   private const string xivelyFeedId = @"YourFeedID";

   public static void Main()
   {
      WeatherClick weatherClick = new WeatherClick(Hardware.SocketOne, WeatherClick.I2CAddresses.Address0);
      weatherClick.SetRecommendedMode(WeatherClick.RecommendedModes.WeatherMonitoring);

      EthClick ethClick = new EthClick(Hardware.SocketTwo);
      ethClick.Start(ethClick.GenerateUniqueMacAddress("devMobileSoftware"), "QuailDevice");

      // Wait for an internet connection
      while (true)
      {
         if (ethClick.ConnectedToInternet)
         {
            Debug.Print("Connected to Internet");
            break;
         }
         Debug.Print("Waiting on Internet connection");
      }

      while (true)
      {
         Debug.Print("T " + weatherClick.ReadTemperature().ToString("F1") + " H " + weatherClick.ReadHumidity().ToString("F1") + " P " + weatherClick.ReadPressure(PressureCompensationModes.Uncompensated).ToString("F1"));

         HttpRequest request = new HttpRequest(@"http://" + xivelyHost + @"/v2/feeds/" + xivelyFeedId + @".csv");
         request.Host = xivelyHost;
         request.RequestType = "PUT";
         request.Headers.Add("Content-Type", "text/csv");
         request.Headers.Add("X-ApiKey", xivelyApiKey );

         request.Content = "OfficeT," + weatherClick.ReadTemperature().ToString("F1") + "\r\n" + "OfficeH," + weatherClick.ReadHumidity().ToString("F1") ;
         request.Headers.Add("Content-Length", request.Content.Length.ToString());

         var response = request.Send();
         if (response != null)
         {
            Debug.Print("Response: " + response.Message);
         }
         else
         {
            Debug.Print("No response");
         }
      Thread.Sleep(30000);
      }
   }
}

MikrobustNet Quail with Eth and Weather Clicks

MikrobustNet Quail with Eth and Weather Clicks

This proof of concept code appears to be reliable and has run for days at a time. The IP stack looks like it needs a bit more work.

Mikrobus.Net Quail and Weather Click

In my second batch of MikroElektronika Mikrobus sensors I had purchased a Weather click because I was interested to see how the temperature and humidity values it returned compared with the Silicon labs Si7005 devices I use with my Arduino and Netduino devices. (I was a bit suspicious of the Si7005 humidity values)

I downloaded the Mikrobus.Net driver for the BME280 and created a simple console application to see how well the sensor and driver worked

public class Program
{
   public static void Main()
   {
      WeatherClick weatherClick = new WeatherClick(Hardware.SocketOne, WeatherClick.I2CAddresses.Address0);

      weatherClick.SetRecommendedMode(WeatherClick.RecommendedModes.WeatherMonitoring);

      while (true)
      {
         Debug.Print("T " + weatherClick.ReadTemperature().ToString(" F1 ") +
" H " + weatherClick.ReadHumidity().ToString("F1") +
" P " + weatherClick.ReadPressure(PressureCompensationModes.Uncompensated).ToString("F1"));

         Thread.Sleep(30000);
      }
   }
}

The temperature values looked pretty good but the humidity values were rough half of what I was getting from the SI7005 connected to a devDuino V2 on the desk next to my Quail board

The thread ‘<No Name>’ (0x2) has exited with code 0 (0x0).
T 24.9 H 49.3 P 1014.8
T 25.0 H 49.4 P 1014.9
T 25.0 H 49.1 P 1014.8
T 25.0 H 49.9 P 1014.8
T 24.9 H 49.1 P 1014.9
T 25.0 H 50.8 P 1014.9
T 25.0 H 49.2 P 1015.0

The code for doing the conversions looked pretty complex so I modified a Netduino BME280 driver (uses a different approach for conversions) I have used on another projects to work on the Quail/Mikrobus architecture.

The modified driver returned roughly the same values so it looks like the problem is most probably with the SI7005 code.(or my understand of the humidity values it returns)

Mikrobus.Net Quail and ThumbStick Click

Back in June I purchased a MikroBus.Net Quail board and a selection of Mikro Elektronika click boards. After figuring out I had purchased a couple of click boards which didn’t have NetMF driver support, I placed another order (ensuring drivers available) which arrived just before Christmas.

The mikroBUS connector standard has quite a different approach to my arduino style boards where the analog, digital, I2C , SPI and other functionality of the microcontroller are exposed on headers.

The mikroBUS standard specifies several different mechanical configurations (small, medium & large) for clicks and the connections available on the 16 pins (2 x 8 pin female headers).

mikrobus_pinout_thumb_b

This impacts on the way sensors are connected, for example with Arduino style devices there are shields with joysticks and buttons which are read using analog inputs and interrupt ports for the buttons

The mikroBus click boards only have one analog port so the x & y axis values of the joystick are read by an MCP3204 Analog to Digital convertor connected to the SPI Bus and the joystick button is connected to the interrupt port.

The microbus team have done a lot of work developing 60+ drivers and the ThumbStick driver was one of the first I downloaded. The interface provided by the driver is relatively straight forward to use

using MBN;
using MBN.Modules;
using Microsoft.SPOT;
using System.Threading;

namespace ThumbstickClickTestApp
{
   public class Program
   {
      public static void Main()
      {
         ThumbstickClick thumbStick = new ThumbstickClick(Hardware.SocketOne);

         thumbStick.ThumbstickOrientation = ThumbstickClick.Orientation.RotateZeroDegrees;
         thumbStick.ThumbstickPressed += thumbstickPressed;
         thumbStick.ThumbstickReleased += thumbstickReleased;
         thumbStick.Calibrate();

         while (true)
         {
            var position = thumbStick.GetPosition();

            Debug.Print("X,Y,IsPressed " + position.X.ToString("F1") + "," + position.Y.ToString("F1") + "," + thumbStick.IsPressed);

            Thread.Sleep(1000);
         }
      }

      static void thumbstickReleased(ThumbstickClick sender, ThumbstickClick.ButtonState state)
      {
         Debug.Print("Thumbstick Released");
      }

      static void thumbstickPressed(ThumbstickClick sender, ThumbstickClick.ButtonState state)
      {
         Debug.Print("Thumbstick Pressed");
      }
   }
}

From the diagnostics output window in Visual Studio
X,Y,IsPressed 0.0,0.0,False
X,Y,IsPressed 0.0,0.0,False
Thumbstick Pressed
Thumbstick Released
X,Y,IsPressed 0.0,-0.0,False
Thumbstick Pressed
X,Y,IsPressed 0.0,1.0,True
Thumbstick Released
X,Y,IsPressed 0.0,0.0,False
X,Y,IsPressed 0.0,0.0,False
