The Things Network HTTP Azure IoT Hub Integration

This post provides an overview of the required Azure Device Provisioning Service(DPS) and Azure IoT Hub configuration to process The Things Network(TTN) HTTP integration uplink messages. I have assumed that the reader is already familiar with all these products. There is an overview of configuring TTN HTTP integration in my “Simplicating and securing the HTTP handler” post.

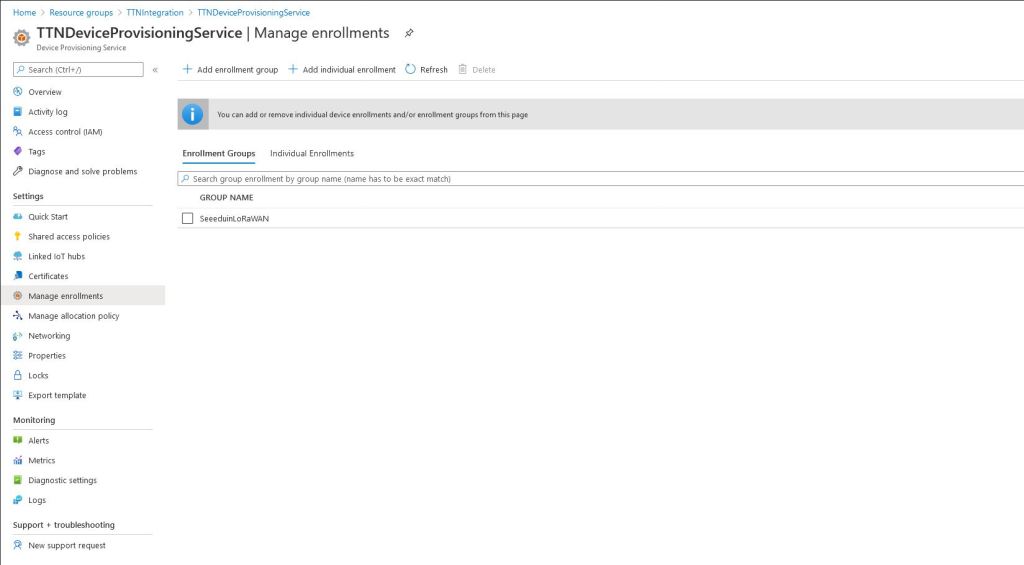

The first step is to configure a DPS Enrollment Group

DPS Group Enrollment blade

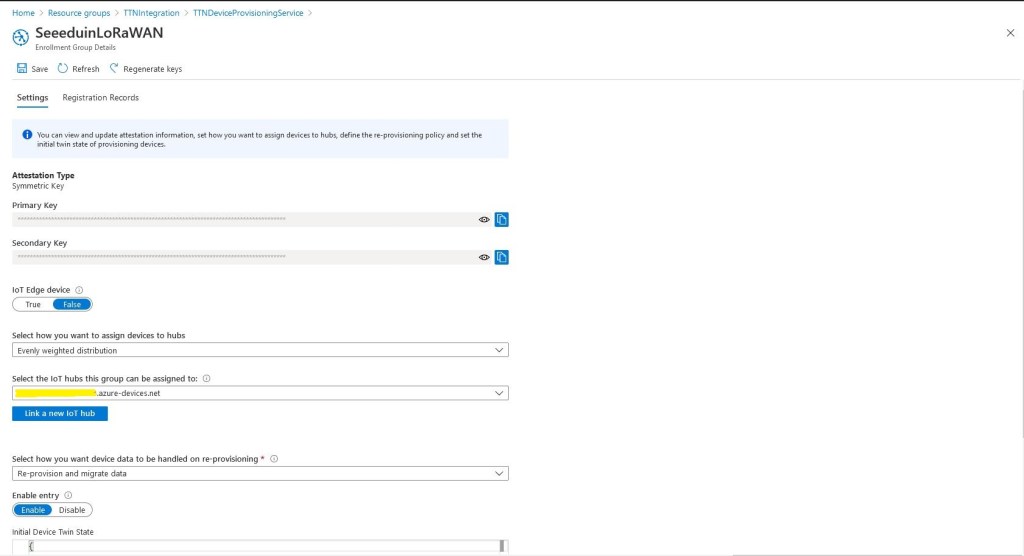

The scopeID and the primary/secondary key need to be configured in the appsettings.json file of uplink message processing Azure QueueTrigger function.

For more complex deployments the ApplicationEnrollmentGroupMapping configuration enables The Things Network(TTN) devices to be provisioned using different GroupEnrollment keys based on the applicationid in the first Uplink message which initiates provisoning.

"DeviceProvisioningService": {
      "GlobalDeviceEndpoint": "global.azure-devices-provisioning.net",
      "ScopeID": "",
      "EnrollmentGroupSymmetricKeyDefault": "TopSecretKey",
      "DeviceProvisioningPollingDelay": 500,
      "ApplicationEnrollmentGroupMapping": {
         "Application1": "TopSecretKey1",
         "Application2": "TopSecretKey2"
      }
   }

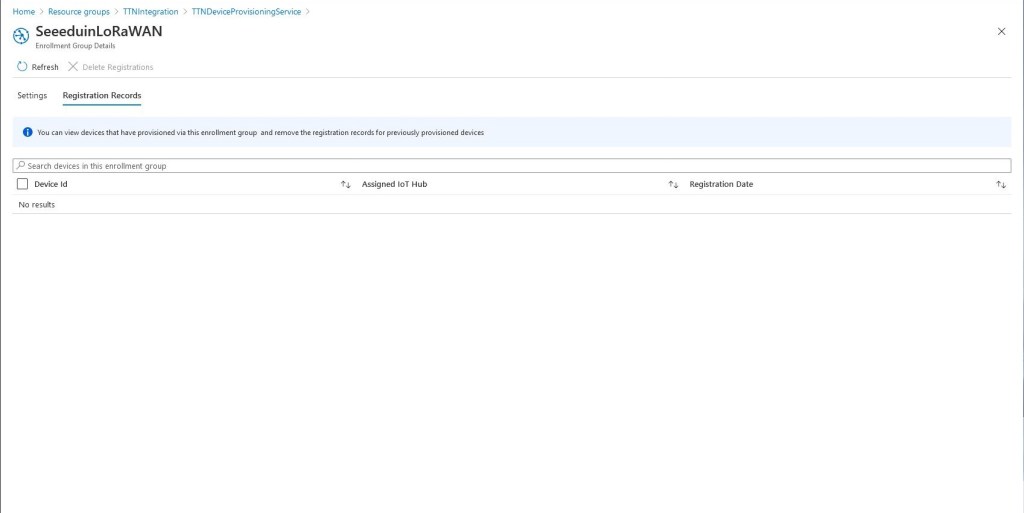

DPS Group Enrolment with no provisioned devices

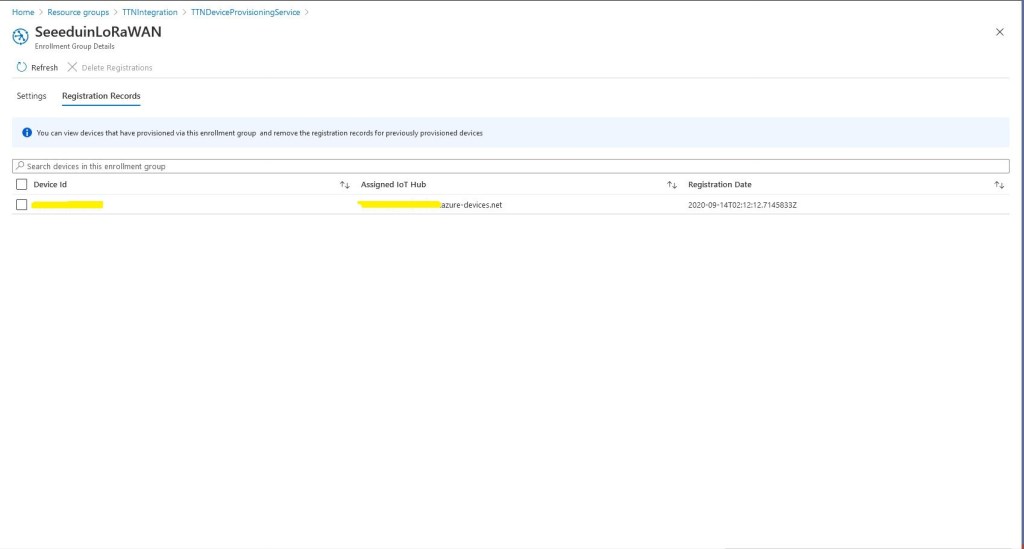

Then as uplink messages from the TTN integration are processed devices are “automagically” created in the DPS.

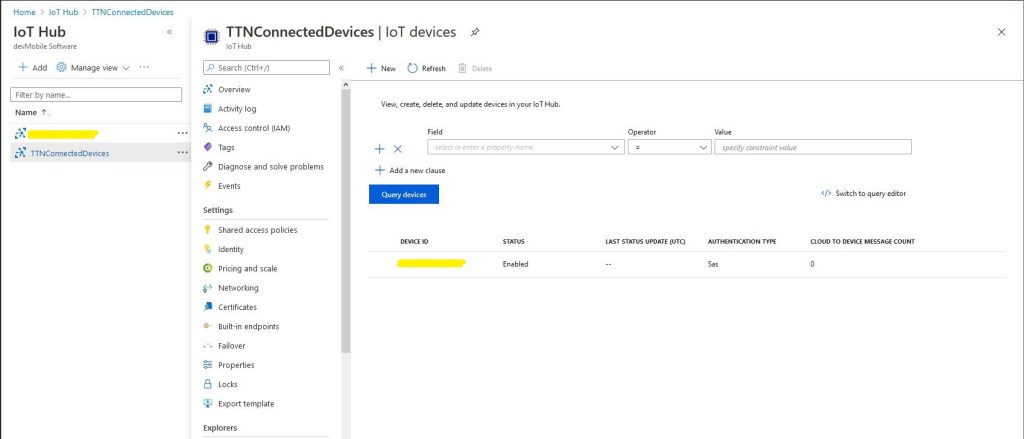

Simultaneously devices are created in the Azure IoT Hub

Then shortly after telemetry events are available for applications to process or inspection with tools like Azure IoT Explorer.

In the telemetry event payload sent to the Azure IoT IoT Hub are some extra fields to help with debugging and tracing. The raw payload is also included so messages not decoded by TTN can be processed by the client application(s).

/ Assemble the JSON payload to send to Azure IoT Hub/Central.
log.LogInformation($"{messagePrefix} Payload assembly start");
JObject telemetryEvent = new JObject();
try
{
   JObject payloadFields = (JObject)payloadObect.payload_fields;
   telemetryEvent.Add("HardwareSerial", payloadObect.hardware_serial);
   telemetryEvent.Add("Retry", payloadObect.is_retry);
   telemetryEvent.Add("Counter", payloadObect.counter);
   telemetryEvent.Add("DeviceID", payloadObect.dev_id);
   telemetryEvent.Add("ApplicationID", payloadObect.app_id);
   telemetryEvent.Add("Port", payloadObect.port);
   telemetryEvent.Add("PayloadRaw", payloadObect.payload_raw);
   telemetryEvent.Add("ReceivedAtUTC", payloadObect.metadata.time);

   // If the payload has been unpacked in TTN backend add fields to telemetry event payload
   if (payloadFields != null)
   {
      foreach (JProperty child in payloadFields.Children())
      {
         EnumerateChildren(telemetryEvent, child);
      }
   }
}
catch (Exception ex)
{
   log.LogError(ex, $"{messagePrefix} Payload processing or Telemetry event assembly failed");
   throw;
}

Beware, the Azure Storage Account and storage queue names have a limited character set. This caused me problems several times when I used camel cased queue names etc.

The Things Network HTTP Integration Part10

Assembling the components

After a series of articles exploring how portions of solution could be built

I now had working code for receiving The Things Network(TTN) HTTP integration JSON messages with an Azure Function using an HTTPTrigger. (secured with an APIKey) and then putting them into an Azure Storage Queue for processing. This code was intentionally kept as small and as simple as possible so there was less to go wrong. The required configuration is also minimal.

HTTP Endpoint handler application

In the last couple of posts I had been building an Azure Function with a QueueTrigger to process the uplink messages. The function used custom bindings so that the CloudQueueMessage could be accessed, and load the Azure Storage account plus queue name from configuration. I’m still using classes generated by JSON2CSharp (with minimal modifications) for deserialising the payloads with JSON.Net.

The message processor Azure Function uses a ConcurrentCollection to store AzureDeviceClient objects constructed using the information returned by the Azure Device Provisioning Service(DPS). This is so the DPS doesn’t have to be called for the connection details for every message.(When the Azure function is restarted the dictionary of DeviceClient objects has to be repopulated). If there is a backlog of messages the message processor can process more than a dozen messages concurrently so the telemetry events displayed in an application like Azure IoT Central can arrive out of order.

The solution uses DPS Group Enrollment with Symmetric Key Attestation so Azure IoT Hub devices can be “automagically” created when a message from a new device is processed. The processing code is multi-thread and relies on many error conditions being handled by the Azure Function retry mechanism. After a number of failed retries the messages are moved to a poison queue. Azure Storage Explorer is a good tool for viewing payloads and moving poison messages back to the processing queue.

public static class UplinkMessageProcessor
{
   static readonly ConcurrentDictionary<string, DeviceClient> DeviceClients = new ConcurrentDictionary<string, DeviceClient>();

   [FunctionName("UplinkMessageProcessor")]
   public static async Task Run(
      [QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")]
      CloudQueueMessage cloudQueueMessage, // Used to get CloudQueueMessage.Id for logging
      Microsoft.Azure.WebJobs.ExecutionContext context,
      ILogger log)
   {
      PayloadV5 payloadObect;
      DeviceClient deviceClient = null;
      DeviceProvisioningServiceSettings deviceProvisioningServiceConfig;

      string environmentName = Environment.GetEnvironmentVariable("ENVIRONMENT");

      // Load configuration for DPS. Refactor approach and store securely...
      var configuration = new ConfigurationBuilder()
      .SetBasePath(context.FunctionAppDirectory)
      .AddJsonFile($"appsettings.json")
      .AddJsonFile($"appsettings.{environmentName}.json")
      .AddEnvironmentVariables()
      .Build();

      // Load configuration for DPS. Refactor approach and store securely...
      try
      {
         deviceProvisioningServiceConfig = (DeviceProvisioningServiceSettings)configuration.GetSection("DeviceProvisioningService").Get<DeviceProvisioningServiceSettings>(); ;
      }
      catch (Exception ex)
      {
         log.LogError(ex, $"Configuration loading failed");
         throw;
      }

      // Deserialise uplink message from Azure storage queue
      try
      {
         payloadObect = JsonConvert.DeserializeObject<PayloadV5>(cloudQueueMessage.AsString);
      }
      catch (Exception ex)
      {
         log.LogError(ex, $"MessageID:{cloudQueueMessage.Id} uplink message deserialisation failed");
         throw;
      }

      // Extract the device ID as it's used lots of places
      string registrationID = payloadObect.hardware_serial;

      // Construct the prefix used in all the logging
      string messagePrefix = $"MessageID: {cloudQueueMessage.Id} DeviceID:{registrationID} Counter:{payloadObect.counter} Application ID:{payloadObect.app_id}";
      log.LogInformation($"{messagePrefix} Uplink message device processing start");

      // See if the device has already been provisioned
      if (DeviceClients.TryAdd(registrationID, deviceClient))
      {
         log.LogInformation($"{messagePrefix} Device provisioning start");

         string enrollmentGroupSymmetricKey = deviceProvisioningServiceConfig.EnrollmentGroupSymmetricKeyDefault;

         // figure out if custom mapping for TTN applicationID
         if (deviceProvisioningServiceConfig.ApplicationEnrollmentGroupMapping != null)
        {
            deviceProvisioningServiceConfig.ApplicationEnrollmentGroupMapping.GetValueOrDefault(payloadObect.app_id, deviceProvisioningServiceConfig.EnrollmentGroupSymmetricKeyDefault);
         }

         // Do DPS magic first time device seen
         await DeviceRegistration(log, messagePrefix, deviceProvisioningServiceConfig.GlobalDeviceEndpoint, deviceProvisioningServiceConfig.ScopeID, enrollmentGroupSymmetricKey, registrationID);
      }

      // Wait for the Device Provisioning Service to complete on this or other thread
      log.LogInformation($"{messagePrefix} Device provisioning polling start");
      if (!DeviceClients.TryGetValue(registrationID, out deviceClient))
      {
         log.LogError($"{messagePrefix} Device provisioning polling TryGet before while failed");

         throw new ApplicationException($"{messagePrefix} Device provisioning polling TryGet before while failed");
      }

      while (deviceClient == null)
      {
         log.LogInformation($"{messagePrefix} provisioning polling delay");
         await Task.Delay(deviceProvisioningServiceConfig.DeviceProvisioningPollingDelay);

         if (!DeviceClients.TryGetValue(registrationID, out deviceClient))
         {
            log.LogError($"{messagePrefix} Device provisioning polling TryGet while loop failed");

            throw new ApplicationException($"{messagePrefix} Device provisioning polling TryGet while loopfailed");
         }
      }

      // Assemble the JSON payload to send to Azure IoT Hub/Central.
      log.LogInformation($"{messagePrefix} Payload assembly start");
      JObject telemetryEvent = new JObject();
      try
      {
         JObject payloadFields = (JObject)payloadObect.payload_fields;
         telemetryEvent.Add("HardwareSerial", payloadObect.hardware_serial);
         telemetryEvent.Add("Retry", payloadObect.is_retry);
         telemetryEvent.Add("Counter", payloadObect.counter);
         telemetryEvent.Add("DeviceID", payloadObect.dev_id);
         telemetryEvent.Add("ApplicationID", payloadObect.app_id);
         telemetryEvent.Add("Port", payloadObect.port);
         telemetryEvent.Add("PayloadRaw", payloadObect.payload_raw);
         telemetryEvent.Add("ReceivedAt", payloadObect.metadata.time);

         // If the payload has been unpacked in TTN backend add fields to telemetry event payload
         if (payloadFields != null)
         {
            foreach (JProperty child in payloadFields.Children())
            {
               EnumerateChildren(telemetryEvent, child);
            }
         }
      }
      catch (Exception ex)
      {
         if (DeviceClients.TryRemove(registrationID, out deviceClient))
         {
            log.LogWarning($"{messagePrefix} TryRemove payload assembly failed");
         }

         log.LogError(ex, $"{messagePrefix} Payload assembly failed");
         throw;
      }

      // Send the message to Azure IoT Hub/Azure IoT Central
      log.LogInformation($"{messagePrefix} Payload SendEventAsync start");
      try
      {
         using (Message ioTHubmessage = new Message(Encoding.ASCII.GetBytes(JsonConvert.SerializeObject(telemetryEvent))))
         {
            // Ensure the displayed time is the acquired time rather than the uploaded time. esp. importan for messages that end up in poison queue
            ioTHubmessage.Properties.Add("iothub-creation-time-utc", payloadObect.metadata.time.ToString("s", CultureInfo.InvariantCulture));
            await deviceClient.SendEventAsync(ioTHubmessage);
         }
      }
      catch (Exception ex)
      {
         if (DeviceClients.TryRemove(registrationID, out deviceClient))
         {
            log.LogWarning($"{messagePrefix} TryRemove SendEventAsync failed");
         }

         log.LogError(ex, $"{messagePrefix} SendEventAsync failed");
         throw;
      }

   log.LogInformation($"{messagePrefix} Uplink message device processing completed");
   }
}

There is also support for using a specific GroupEnrollment based on the application_id in the uplink message payload.

"DeviceProvisioningService": {
      "GlobalDeviceEndpoint": "global.azure-devices-provisioning.net",
      "ScopeID": "",
      "EnrollmentGroupSymmetricKeyDefault": "TopSecretKey",
      "DeviceProvisioningPollingDelay": 500,
      "ApplicationEnrollmentGroupMapping": {
         "Application1": "TopSecretKey1",
         "Application2": "TopSecretKey2"
      }
   }

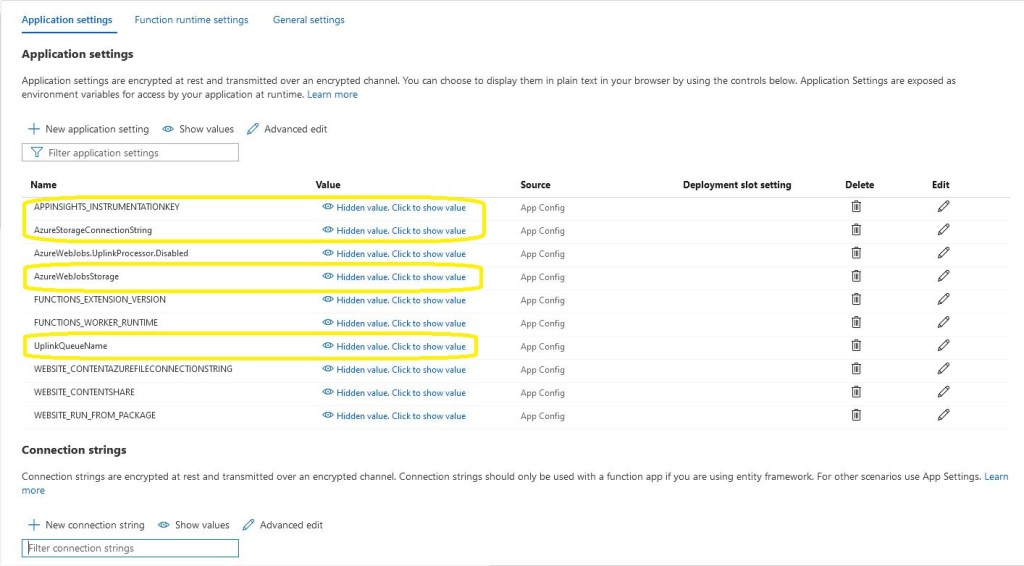

In addition to the appsettings.json there is configuration for application insights, uplink message queue name and Azure Storage connection strings. The “Environment” setting is important as it specifies what appsettings.json file should be used if code is being debugged etc..

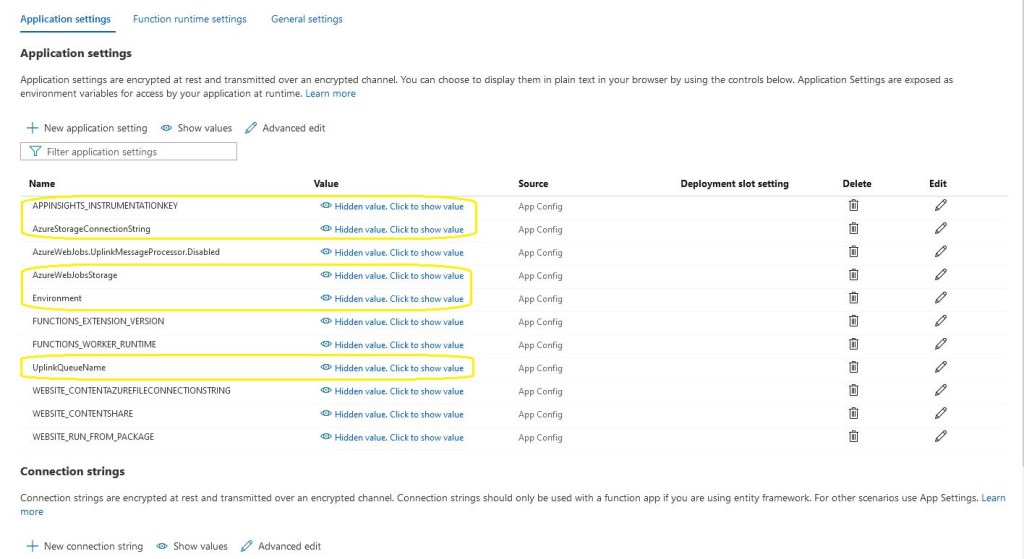

TTN Integration uplink message processor configuration

The deployed solution application consists of Azure IoTHub and DPS instances. There are two Azure functions, one for putting the messages from the TTN into a queue the other is for processing them. The Azure Functions are hosted in an Azure AppService plan.

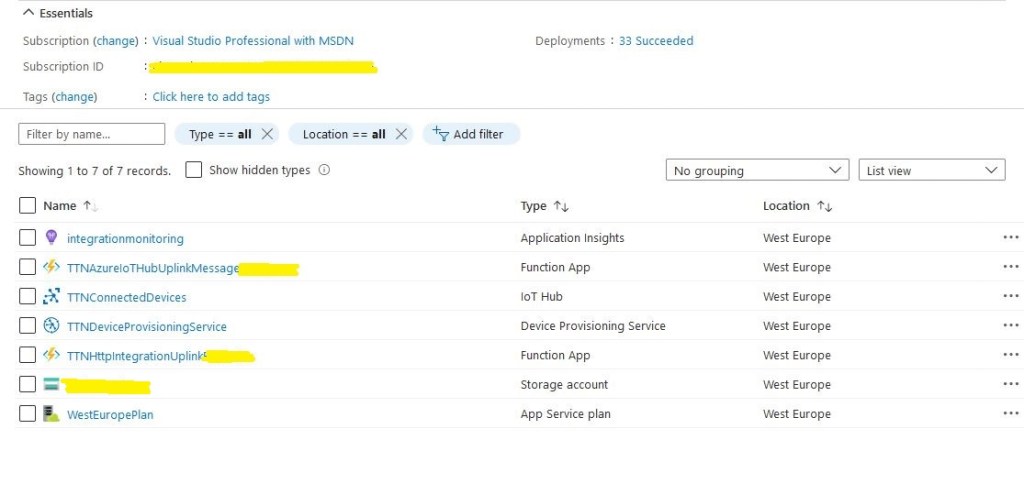

Azure solution deployment

An Azure Storage account is used for the queue and Azure Function synchronisation information and Azure Application Insights is used to monitor the solution.

The QueueTrigger function retry “rabbit hole”

My first couple of attempts at an Azure Queue Trigger Function which could do retries when an uplink message couldn’t be processed immediately(I didn’t want to throw an exception as this was just a transient issue) didn’t work. I wanted to return the uplink message to the Azure Storage Queue with the initial visibility set to a couple of seconds without throwing an exception.

I tried decorating the method with an Azure Storage Queue output binding but finally settled on the approach below. I can insert a single message into the storage queue and the application would start looping every minute.

public static class UplinkMessageProcessor
{
   const string RunTag = "Processor001";
   static int ConcurrentThreadCount = 0;
   static int MessagesProcessed = 0;

   [FunctionName("UplinkMessageProcessor")]
   public static void Run(
      [QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")]
      CloudQueueMessage cloudQueueMessage,
      IBinder binder, ILogger log)
   {
      try
      {
         Interlocked.Increment(ref ConcurrentThreadCount);
         Interlocked.Increment(ref MessagesProcessed);

         log.LogInformation($"{MessagesProcessed} {RunTag} Threads:{ConcurrentThreadCount}");

         CloudQueue outputQueue = binder.Bind<CloudQueue>(new QueueAttribute("%UplinkQueueName%"));

         CloudQueueMessage message = new CloudQueueMessage(cloudQueueMessage.AsString);

         outputQueue.AddMessage(message, initialVisibilityDelay: new TimeSpan(0, 1, 0));

         Thread.Sleep(2000);

         Interlocked.Decrement(ref ConcurrentThreadCount);
      }
      catch (Exception ex)
      {
         log.LogError(ex, "Processing of Uplink message failed");

         throw;
      }
   }
}

I used the binder.bind method to get the CloudQueue and CloudQueueMessage details so I could insert a hidden messages back into the queue.

The version of Azure Storage queue libraries used by the function bindings (Sep 2020) may cause some compile time warnings if you select the wrong NuGet package.

Hopefully this has enough keywords that someone trying todo the same thing finds it.

The Things Network HTTP Integration Part9

Simplicating and securing the HTTP handler

There was lots of code in nested classes for deserialising the The Things Network(TTN) JSON uplink messages in my WebAPI project. It looked a bit fragile and if the process failed uplink messages could be lost.

My first attempt at an Azure HTTP Trigger Function to handle an uplink message didn’t work. I had decorated the HTTP Trigger method with an Azure Storage Queue as the destination for the output.

public static class UplinkProcessor
{
   [FunctionName("UplinkProcessor")]
   [return: Queue("%UplinkQueueName%", Connection = "AzureStorageConnectionString")]
   public static async Task<IActionResult> Run([HttpTrigger(AuthorizationLevel.Anonymous, "get", "post", Route = null)] HttpRequest request, ILogger log)
   {
      string payload;

      log.LogInformation("C# HTTP trigger function processed a request.");

      using (StreamReader streamReader = new StreamReader(request.Body))
      {
         payload = await streamReader.ReadToEndAsync();
      }

      return new OkObjectResult(payload);
   }
}

When I returned OkObjectResult(object value) the message JSON was prefixed with “value”. This broke message deserialisation in the Azure queue trigger function for processing uplink events.

There were a couple of other versions which failed with encoding issues.

Invalid uplink event JSON
public static class UplinkProcessor
{
   [FunctionName("UplinkProcessor")]
   [return: Queue("%UplinkQueueName%", Connection = "AzureStorageConnectionString")]
   public static async Task<string> Run([HttpTrigger("post", Route = null)] HttpRequest request, ILogger log)
   {
      string payload;

      log.LogInformation("C# HTTP trigger function processed a request.");

      using (StreamReader streamReader = new StreamReader(request.Body))
      {
         payload = await streamReader.ReadToEndAsync();
      }

      return payload;
   }
}

I finally settled on returning a string, which with the benefit of hindsight was obvious.

Valid JSON message

By storing the raw uplink event JSON from TTN the application can recover if it they can’t deserialised, (message format has changed or generated class issues) The queue processor won’t be able to process the uplink event messages so they will end up in the poison message queue after being retried a few times.

I hadn’t added any security plumbing to the my other test application but I really did need to secure my uplink message endpoint in production (this functionality is disabled when running locally). Azure http trigger functions support host and method scope API key authorisation which integrates easily with TTN.

In the Azure management portal I generated a method scope API key.

Azure HTTP function API key management

I then added an x-functions-key header in the TTN application integration configuration and it worked second attempt due to a copy and past fail.

Things Network Application integration

To confirm my APIKey setup was correct I changed the header name and my requests started to fail with a 401 Unauthorised error.

After some experimentation it took less than two dozen lines of C# to create a secure endpoint to receive uplink messages and put them in an Azure Storage queue.

The Things Network HTTP Integration Part8

Logging and the start of simplification

While testing the processing of queued The Things Network(TTN) uplink messages I had noticed that some of the Azure Application Insights events from my Log4Net setup were missing. I could see the MessagesProcessed counter was correct but there weren’t enough events.

public static class UplinkMessageProcessor
{
   const string RunTag = "Log4Net001";
   static readonly ILog log = log4net.LogManager.GetLogger(System.Reflection.MethodBase.GetCurrentMethod().DeclaringType);
   static readonly ConcurrentDictionary<string, PayloadV5> DevicesSeen = new ConcurrentDictionary<string, PayloadV5>();
   static int ConcurrentThreadCount = 0;
   static int MessagesProcessed = 0;

   [FunctionName("UplinkMessageProcessor")]
   public static void Run([QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")] string myQueueItem, Microsoft.Azure.WebJobs.ExecutionContext executionContext)
   {
      try
      {
         var logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
         XmlConfigurator.Configure(logRepository, new FileInfo(Path.Combine(executionContext.FunctionAppDirectory, "log4net.config")));

         PayloadV5 payloadMessage = (PayloadV5)JsonSerializer.Deserialize(myQueueItem, typeof(PayloadV5));
         PayloadV5 payload = (PayloadV5)DevicesSeen.GetOrAdd(payloadMessage.dev_id, payloadMessage);

         Interlocked.Increment(ref ConcurrentThreadCount);
         Interlocked.Increment(ref MessagesProcessed);

         log.Info($"{MessagesProcessed} {RunTag} DevEui:{payload.dev_id} Threads:{ConcurrentThreadCount} First:{payload.metadata.time} Current:{payloadMessage.metadata.time} PayloadRaw:{payload.payload_raw}");

         Thread.Sleep(2000);

         Interlocked.Decrement(ref ConcurrentThreadCount);
      }
      catch (Exception ex)
      {
         log.Error("Processing of Uplink message failed", ex);

         throw;
      }
   }
}

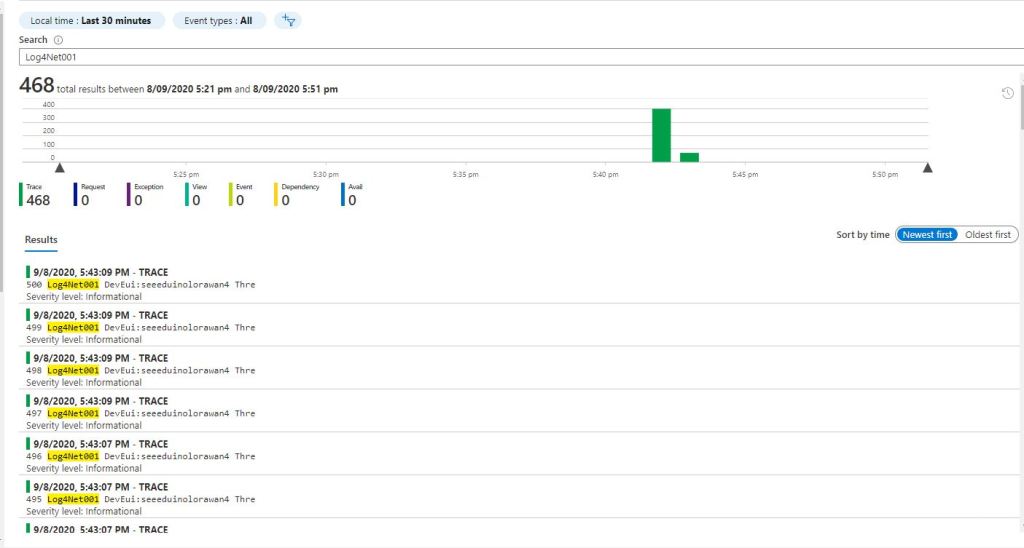

Log4Net in Application Insights Event viewer

I assume the missing events were because I wasn’t flushing at the end of the Run method. There was also a lot of “plumbing” code (including loading configuration files) to setup Log4Net.

I then built another Azure function using the Application Insights API

public static class UplinkMessageProcessor
{
   const string RunTag = "Insights001";
   static readonly ConcurrentDictionary<string, PayloadV5> DevicesSeen = new ConcurrentDictionary<string, PayloadV5>();
   static int ConcurrentThreadCount = 0;
   static int MessagesProcessed = 0;

   [FunctionName("UplinkMessageProcessor")]
   public static void Run([QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")] string myQueueItem, Microsoft.Azure.WebJobs.ExecutionContext executionContext)
   {
      using (TelemetryConfiguration telemetryConfiguration = TelemetryConfiguration.CreateDefault())
      {
         TelemetryClient telemetryClient = new TelemetryClient(telemetryConfiguration);

         try
         {
            PayloadV5 payloadMessage = (PayloadV5)JsonSerializer.Deserialize(myQueueItem, typeof(PayloadV5));
            PayloadV5 payload = (PayloadV5)DevicesSeen.GetOrAdd(payloadMessage.dev_id, payloadMessage);

            Interlocked.Increment(ref ConcurrentThreadCount);
            Interlocked.Increment(ref MessagesProcessed);

            telemetryClient.TrackEvent($"{MessagesProcessed} {RunTag} DevEui:{payload.dev_id} Threads:{ConcurrentThreadCount} First:{payload.metadata.time} Current:{payloadMessage.metadata.time} PayloadRaw:{payload.payload_raw}");

            Thread.Sleep(2000);

            Interlocked.Decrement(ref ConcurrentThreadCount);
         }
         catch (Exception ex)
         {
            telemetryClient.TrackException(ex);
            throw;
         }
      }
   }
}

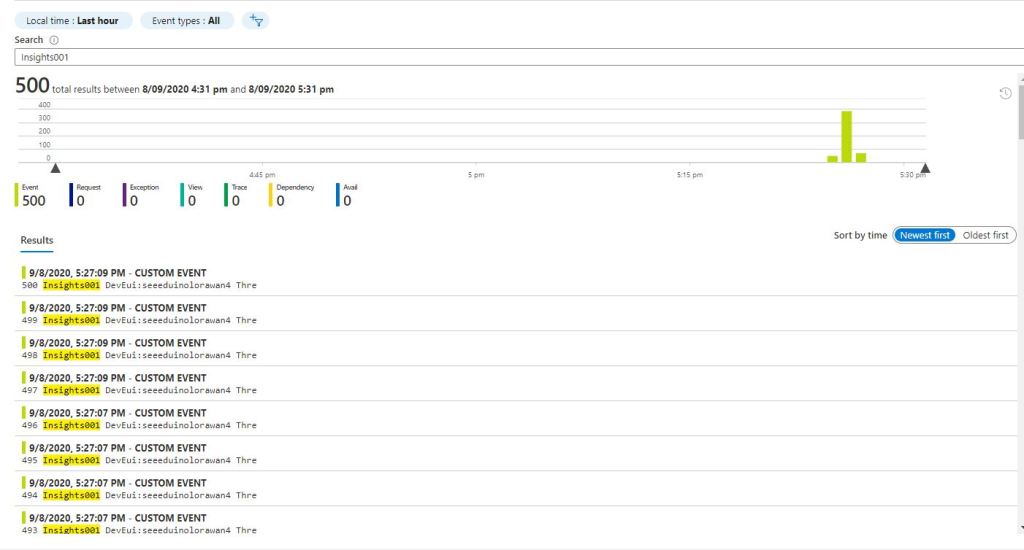

Application Insights API in Application Insights Event viewer

I assume there were no missing events because the using statement was “flushing” every time the Run method completed. There was still a bit of “plumbing” code and which it would be good to get rid of.

When I generated Azure Function stubs there was an ILogger parameter which the Dependency Injection (DI) infrastructure setup.

public static class UplinkMessageProcessor
{
  const string RunTag = "Logger002";
   static readonly ConcurrentDictionary<string, PayloadV5> DevicesSeen = new ConcurrentDictionary<string, PayloadV5>();
   static int ConcurrentThreadCount = 0;
   static int MessagesProcessed = 0;

   [FunctionName("UplinkMessageProcessor")]
   public static void Run([QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")] string myQueueItem, ILogger log)
   {
      try
      {
            PayloadV5 payloadMessage = (PayloadV5)JsonSerializer.Deserialize(myQueueItem, typeof(PayloadV5));
         PayloadV5 payload = (PayloadV5)DevicesSeen.GetOrAdd(payloadMessage.dev_id, payloadMessage);

         Interlocked.Increment(ref ConcurrentThreadCount);
         Interlocked.Increment(ref MessagesProcessed);

         log.LogInformation($"{MessagesProcessed} {RunTag} DevEui:{payload.dev_id} Threads:{ConcurrentThreadCount} First:{payload.metadata.time} Current:{payloadMessage.metadata.time} PayloadRaw:{payload.payload_raw}");

         Thread.Sleep(2000);

         Interlocked.Decrement(ref ConcurrentThreadCount);
      }
      catch (Exception ex)
      {
         log.LogError(ex,"Processing of Uplink message failed");

         throw;
      }
   }
}

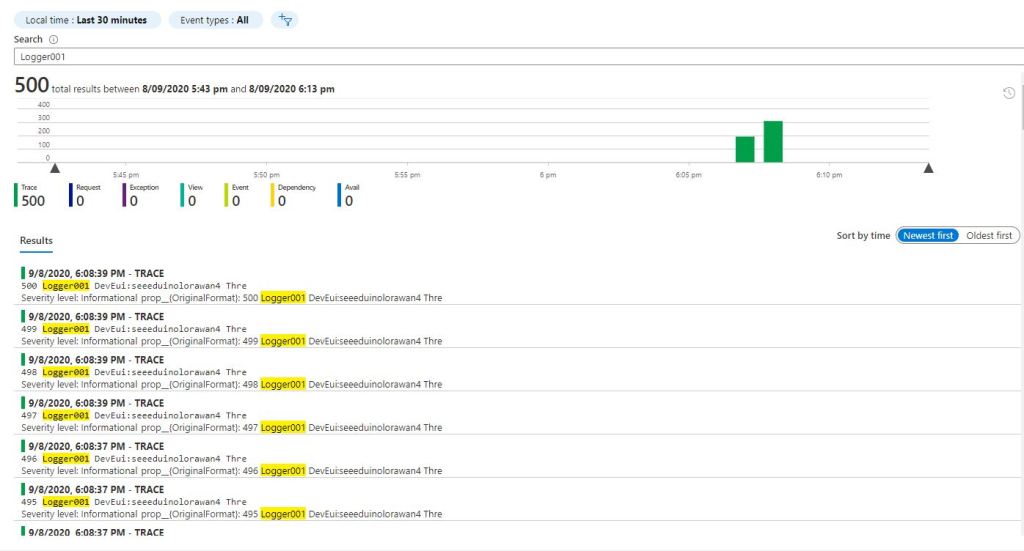

ILogger in Application Insights Event viewer

This implementation had even less code and all the messages were visible in the Azure Application Insights event viewer.

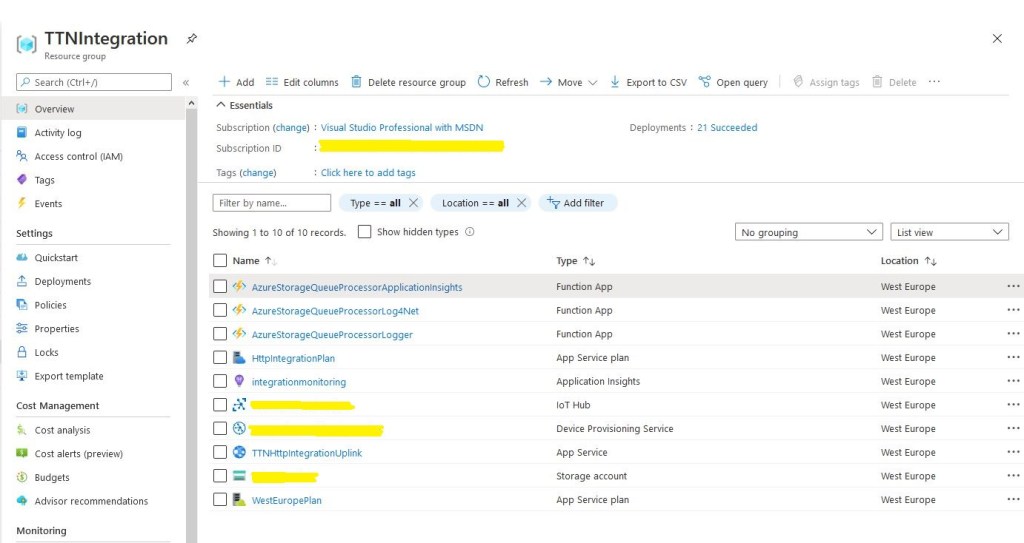

All the Azure functions for logging

While built the Proof of Concept(PoC) implementations I added the configurable “runtag” so I could search for the messages relating to a session in the Azure Application Insights event viewer. The queue name and storage account were “automagically” loaded by the runtime which also reduced the amount of code.

[QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")]

At this point I had minimised the amount and complexity of the code required to process messages in the ttnuplinkmessages queue. Reducing the amount of “startup” required should make my QueueTrigger Azure function faster. But there was still a lot of boilerplate code for serialising the body of the message which added complexity.

At this point I realised I had a lot of code across multiple projects which had helped me breakdown the problem into manageable chunks but didn’t add a lot of value.

The Things Network HTTP Integration Part7

Queuing uplink messages

For my HTTP Integration I need to reliably forward messages to an Azure IoT Hub or Azure IoT Central. This solution needs to be robust and not lose any messages even when portions of the system are unavailable because of failures or sudden spikes in inbound traffic.

I added yet another controller, it receives an uplink messages from The Things Network(TTN) and puts them into an Azure Storage Queue.

[Route("[controller]")]
[ApiController]
public class Queued : ControllerBase
{
   private readonly string storageConnectionString;
   private readonly string queueName;
   private static readonly ILog log = log4net.LogManager.GetLogger(System.Reflection.MethodBase.GetCurrentMethod().DeclaringType);

   public Queued( IConfiguration configuration)
   {
      this.storageConnectionString = configuration.GetSection("AzureStorageConnectionString").Value;
      this.queueName = configuration.GetSection("UplinkQueueName").Value;
   }

   public string Index()
   {
      return "Queued move along nothing to see";
   }

   [HttpPost]
   public async Task<IActionResult> Post([FromBody] PayloadV5 payload)
   {
      string payloadFieldsUnpacked = string.Empty;

      // Check that the post data is good
      if (!this.ModelState.IsValid)
      {
         log.WarnFormat("QueuedController validation failed {0}", this.ModelState.Messages());

         return this.BadRequest(this.ModelState);
      }

      try
      {
         QueueClient queueClient = new QueueClient(storageConnectionString, queueName);

         await queueClient.CreateIfNotExistsAsync();

         await queueClient.SendMessageAsync(Convert.ToBase64String(JsonSerializer.SerializeToUtf8Bytes(payload)));
      }
      catch( Exception ex)
      {
         log.Error("Unable to open/create queue or send message", ex);

         return this.Problem("Unable to open queue (creating if it doesn't exist) or send message", statusCode:500, title:"Uplink payload not sent" );
      }

      return this.Ok();
   }
}

An Azure Function with a Queue Trigger processes the messages and for this test pauses for 2 seconds (simulating a call to the Device Provisioning Service(DPS) ). It keeps track of the number of concurrent processing threads and when the first message for each device was received since the program was started.

public static class UplinkMessageProcessor
{
   static readonly ILog log = log4net.LogManager.GetLogger(System.Reflection.MethodBase.GetCurrentMethod().DeclaringType);
   static ConcurrentDictionary<string, PayloadV5> DevicesSeen = new ConcurrentDictionary<string, PayloadV5>();
   static int ConcurrentThreadCount = 0;

   [FunctionName("UplinkMessageProcessor")]
   public static void Run([QueueTrigger("%UplinkQueueName%", Connection = "AzureStorageConnectionString")] string myQueueItem, Microsoft.Azure.WebJobs.ExecutionContext executionContext)
   {
      Interlocked.Increment(ref ConcurrentThreadCount);
      var logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
      XmlConfigurator.Configure(logRepository, new FileInfo(Path.Combine(executionContext.FunctionAppDirectory, "log4net.config")));

      log.Info($"Uplink message function triggered: {myQueueItem}");

      PayloadV5 payloadMessage = (PayloadV5)JsonSerializer.Deserialize(myQueueItem, typeof(PayloadV5));
      PayloadV5 payload = (PayloadV5)DevicesSeen.GetOrAdd(payloadMessage.dev_id, payloadMessage);

      log.Info($"Uplink message DevEui:{payload.dev_id} Threads:{ConcurrentThreadCount} First:{payload.metadata.time} Current:{payloadMessage.metadata.time} PayloadRaw:{payload.payload_raw}");

      Thread.Sleep(2000);

      Interlocked.Decrement(ref ConcurrentThreadCount);
   }
}

To explore how this processing worked I sent 1000 uplink messages from my Seeeduino LoRaWAN devices which were buffered in a queue.

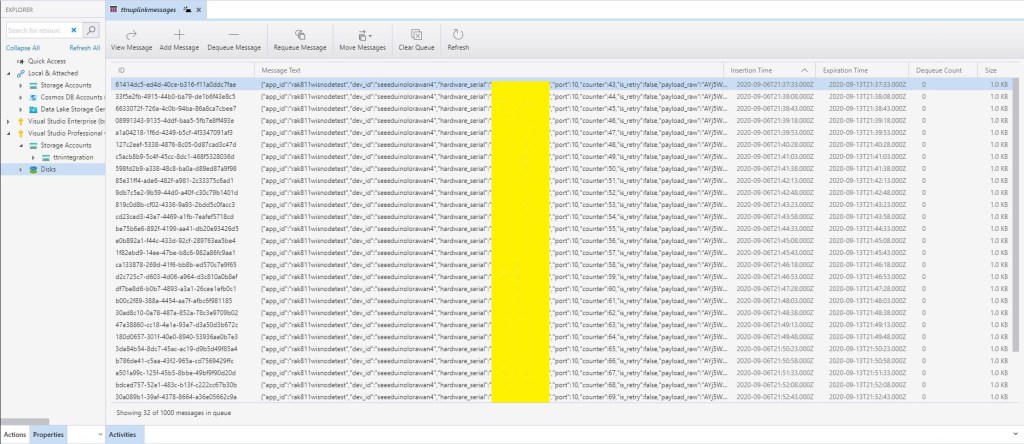

Azure storage Explorer 1000 queued messages

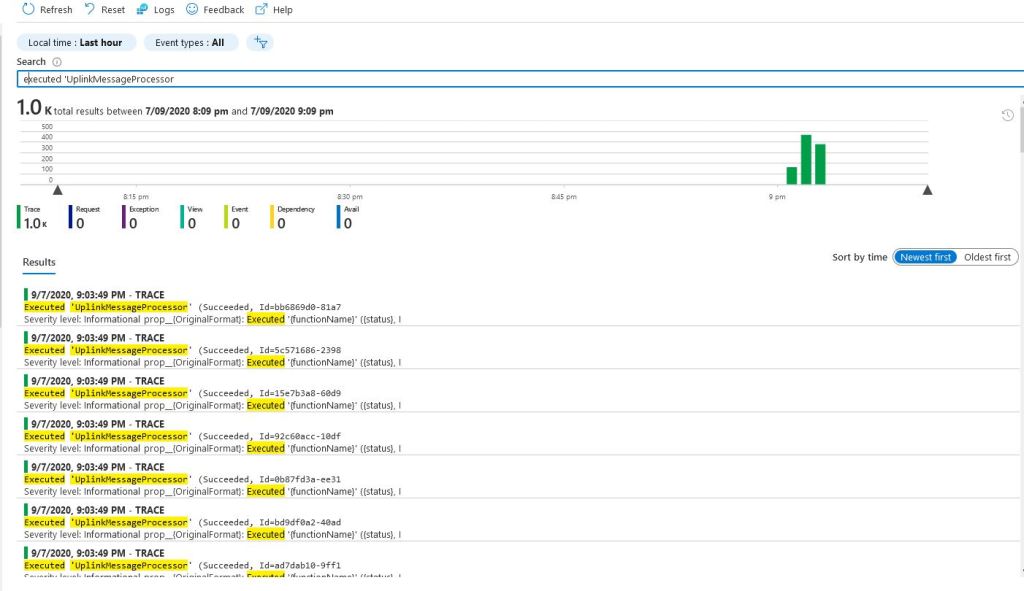

Application insights 1000 events

I processed 1000’s of messages with the Azure Function but every so often 10-20% of the logging messages wouldn’t turn up in the logs. I’m using Log4Net and I think it is most probably caused by not flushing the messages before the function finishes

Azure IOT Hub and Event Grid Part1

I have one an Azure IoT Hub LoRa Telemetry Field Gateway running in my office and I wanted to process the data collected by the sensors around my property without using a Software as a Service(SaaS) Internet of Things (IoT) package.

Rather than lots of screen grabs of my configuration steps I figured people reading this series of posts would be able to figure the details out themselves.

Raspberry PI with M2M LoRa Hat

I created an Azure Resource Group for this project, and created an Azure IoT Hub.

Azure Resource Group with IoT Hub

I then provisioned an Azure IoT Hub device so I could get the connection string for my Windows 10 Azure IoT Hub LoRa Telemetry Field gateway.

LoRa Field Gateway Provisioned in Azure IoT Hub

I downloaded the JSON configuration file template from my Windows 10 device (which is created on first startup after installation) and configured the Azure IoT Hub connection string.

{
   "AzureIoTHubDeviceConnectionString": "HostName=FieldGatewayHub.azure-devices.net;DeviceId=LoRa915MHz;SharedAccessKey=123456789012345678901234567890123456789/arg=",
   "AzureIoTHubTransportType": "amqp",
   "SensorIDIsDeviceIDSensorID": false,
   "Address": "LoRaIoT1",
   "Frequency": 915000000.0,
   "PABoost": true
}

I then uploaded this to my Windows 10 IoT Core device and restarted the Azure IoT Hub Field gateway so it picked up the new settings.

I could then see on the device messages from sensor nodes being unpacked and uploaded to my Azure IoT Hub.

ETW logging on device

In the Azure IoT Hub metrics I graphed the number of devices connected and the number of telemetry messages sent and could see my device connect then start uploading telemetry.

Azure IoT Hub metrics

One of my customers uses Azure Event Grid for application integration and I wanted to explore using it in an IoT solution. The first step was to create an Event Grid Domain.

I then used the Azure IoT Hub Events tab to wire up these events.

  • Microsoft.Devices.DeviceConnected
  • Microsoft.Devices.DeviceDisconnected
  • Microsoft.Devices.DeviceTelemetry
Azure IoT Hub Event Metrics

To confirm my event subscriptions were successful I previously found the “simplest” approach was to use an Azure storage queue endpoint. I had to create an Azure Storage Account with two Azure Storage Queues one for device connectivity (.DeviceConnected & .DeviceDisconnected) events and the other for device telemetry (.DeviceTelemetry) events.

I created a couple of other subscriptions so I could compare the different Event schemas (Event Grid Schema & Cloud Event Schema v1.0). At this stage I didn’t configure any Filters or Additional Features.

Azure IoT Hub Telemetry Event Metrics

I use Cerebrate Cerculean for monitoring and managing a couple of other customer projects so I used it to inspect the messages in the storage queues.

Cerebrate Ceculean Storage queue Inspector

The message are quite verbose

{
"id":"b48b6376-b7f4-ee7d-82d9-12345678901a",
"source":"/SUBSCRIPTIONS/12345678-901234789-0123-456789012345/RESOURCEGROUPS/AZUREIOTHUBEVENTGRIDAZUREFUNCTION/PROVIDERS/MICROSOFT.DEVICES/IOTHUBS/FIELDGATEWAYHUB",
"specversion":"1.0",
"type":"Microsoft.Devices.DeviceTelemetry",
"dataschema":"#",
"subject":"devices/LoRa915MHz",
"time":"2020-01-24T04:27:30.842Z","data":
{"properties":{},
"systemProperties":{"iothub-connection-device-id":"LoRa915MHz",
"iothub-connection-auth-method":"{\"scope\":\"device\",\"type\":\"sas\",\"issuer\":\"iothub\",\"acceptingIpFilterRule\":null}",
"iothub-connection-auth-generation-id":"637149227434620853",
"iothub-enqueuedtime":"2020-01-24T04:27:30.842Z",
"iothub-message-source":"Telemetry"},
"body":"eyJQYWNrZXRTTlIiOiIxMC4wIiwiUGFja2V0UlNTSSI6LTY5LCJSU1NJIjotMTA5LCJEZXZpY2VBZGRyZXNzQkNEIjoiNEQtNjEtNjQtNzUtNjktNkUtNkYtMzIiLCJhdCI6Ijc2LjYiLCJhaCI6IjU4Iiwid3NhIjoiMiIsIndzZyI6IjUiLCJ3ZCI6IjMyMi44OCIsInIiOiIwLjAwIn0="
}
}

The message payload is base64 encoded, so I used an online tool to decode it.

{
 PacketSNR":"10.0",
"PacketRSSI":-69,
"RSSI":-109,
"DeviceAddressBCD":"4D-61-64-75-69-6E-6F-32",
"at":"76.6",
"ah":"58",
"wsa":"2",
"wsg":"5",
"wd":"322.88",
"r":"0.00"
}

Without writing any code (I will script the configuration) I could upload sensor data to an Azure IoT Hub, subscribe to a selection of events the Azure IoT Hub publishes and then inspect them in an Azure Storage Queue.

I did notice that the .DeviceConnected and .DeviceDisconnected events did take a while to arrive. When I started the field gateway application on the device I would get several DeviceTelemetry events before the DeviceConnected event arrived.

Windows 10 IoT Core Time-Lapse Camera Azure IoT Hub Storage Revisited

In my previous post the application uploaded images to an Azure storage account associated with an Azure IoT Hub based on configuration file settings. The application didn’t use any of the Azure IoT Hub device management functionality like device twins and direct methods.

Time-lapse camera setup

In this version only the Azure IoT hub connection string and protocol to use are stored in the JSON configuration file.

{
  "AzureIoTHubConnectionString": "",
  "TransportType": "Mqtt",
}

On startup the application uploads a selection of properties to the Azure IoT Hub to assist with support, fault finding etc.

// This is from the OS
reportedProperties["Timezone"] = TimeZoneSettings.CurrentTimeZoneDisplayName;
reportedProperties["OSVersion"] = Environment.OSVersion.VersionString;
reportedProperties["MachineName"] = Environment.MachineName;
reportedProperties["ApplicationDisplayName"] = package.DisplayName;
reportedProperties["ApplicationName"] = packageId.Name;
reportedProperties["ApplicationVersion"] = string.Format($"{version.Major}.{version.Minor}.{version.Build}.{version.Revision}");

// Unique identifier from the hardware
SystemIdentificationInfo systemIdentificationInfo = SystemIdentification.GetSystemIdForPublisher();
using (DataReader reader = DataReader.FromBuffer(systemIdentificationInfo.Id))
{
   byte[] bytes = new byte[systemIdentificationInfo.Id.Length];
   reader.ReadBytes(bytes);
   reportedProperties["SystemId"] = BitConverter.ToString(bytes);
}

Azure Portal Device Properties

The Azure Storage file and folder name formats along with the image capture due and update periods are configured in the DeviceTwin properties. Initially I had some problems with the dynamic property types so had to .ToString and then Timespan.TryParse the periods.

Twin deviceTwin= azureIoTHubClient.GetTwinAsync().Result;

if (!deviceTwin.Properties.Desired.Contains("AzureImageFilenameLatestFormat"))
{
   this.logging.LogMessage("DeviceTwin.Properties AzureImageFilenameLatestFormat setting missing", LoggingLevel.Warning);
   return;
}
…
if (!deviceTwin.Properties.Desired.Contains("ImageUpdateDue") || !TimeSpan.TryParse(deviceTwin.Properties.Desired["ImageUpdateDue"].Value.ToString(), out imageUpdateDue))
{
   this.logging.LogMessage("DeviceTwin.Properties ImageUpdateDue setting missing or invalid format", LoggingLevel.Warning);
   return;
}
Azure Portal Device Settings

The application also supports two commands “ImageCapture’ and “DeviceReboot”. For testing I used Azure Device Explorer

After running the installer (available from GitHub) the application will create a default configuration file in

\User Folders\LocalAppData\PhotoTimerTriggerAzureIoTHubStorage-uwp_1.2.0.0_arm__nmn3tag1rpsaw\LocalState\

Which can be downloaded, modified then uploaded using the portal file explorer application. If you want to make the application run on device start-up the radio button below needs to be selected.

Windows 10 IoT Core Time-Lapse Camera Azure IoT Hub Storage

After building a couple of time lapse camera applications for Windows 10 IoT Core I built a version which uploads the images to the Azure storage account associated with an Azure IoT Hub.

I really wanted to be able to do a time-lapse video of a storm coming up the Canterbury Plains to Christchurch and combine it with the wind direction, windspeed, temperature and humidity data from my weather station which uploads data to Azure through my Azure IoT Hub LoRa field gateway.

Time-lapse camera setup

The application captures images with a configurable period after configurable start-up delay. The Azure storage root folder name is based on the device name in the Azure IoT Hub connection string. The folder(s) where the historic images are stored are configurable and the images can optionally be in monthly, daily, hourly etc. folders. The current image is stored in the root folder for the device and it’s name is configurable.

{
  "AzureIoTHubConnectionString": "",
  "TransportType": "Mqtt",
  "AzureImageFilenameFormatLatest": "latest.jpg",
  "AzureImageFilenameFormatHistory": "{0:yyMMdd}/{0:yyMMddHHmmss}.jpg",
  "ImageUpdateDueSeconds": 30,
  "ImageUpdatePeriodSeconds": 300
}

With the above setup I have a folder for each device in the historic fiolder and the most recent image i.e. “latest.jpg” in the root folder. The file and folder names are assembled with a parameterised string.format . The parameter {0} is the current UTC time

Pay attention to your folder/file name formatting, I was tripped up by

  • mm – minutes vs. MM – months
  • hh – 12 hour clock vs. HH -24 hour clock

With 12 images every hour

The application logs events on start-up and every time a picture is taken

After running the installer (available from GitHub) the application will create a default configuration file in

User Folders\LocalAppData\PhotoTimerTriggerAzureIoTHubStorage-uwp_1.0.0.0_arm__nmn3tag1rpsaw\LocalState\

Which can be downloaded, modified then uploaded using the portal file explorer application. If you want to make the application run on device start-up the radio button below needs to be selected.

/*
    Copyright ® 2019 March devMobile Software, All Rights Reserved

    MIT License

…
*/
namespace devMobile.Windows10IotCore.IoT.PhotoTimerTriggerAzureIoTHubStorage
{
	using System;
	using System.IO;
	using System.Diagnostics;
	using System.Threading;

	using Microsoft.Azure.Devices.Client;
	using Microsoft.Extensions.Configuration;

	using Windows.ApplicationModel;
	using Windows.ApplicationModel.Background;
	using Windows.Foundation.Diagnostics;
	using Windows.Media.Capture;
	using Windows.Media.MediaProperties;
	using Windows.Storage;
	using Windows.System;

	public sealed class StartupTask : IBackgroundTask
	{
		private BackgroundTaskDeferral backgroundTaskDeferral = null;
		private readonly LoggingChannel logging = new LoggingChannel("devMobile Photo Timer Azure IoT Hub Storage", null, new Guid("4bd2826e-54a1-4ba9-bf63-92b73ea1ac4a"));
		private DeviceClient azureIoTHubClient = null;
		private const string ConfigurationFilename = "appsettings.json";
		private Timer ImageUpdatetimer;
		private MediaCapture mediaCapture;
		private string azureIoTHubConnectionString;
		private TransportType transportType;
		private string azureStorageimageFilenameLatestFormat;
		private string azureStorageImageFilenameHistoryFormat;
		private const string ImageFilenameLocal = "latest.jpg";
		private volatile bool cameraBusy = false;

		public void Run(IBackgroundTaskInstance taskInstance)
		{
			StorageFolder localFolder = ApplicationData.Current.LocalFolder;
			int imageUpdateDueSeconds;
			int imageUpdatePeriodSeconds;

			this.logging.LogEvent("Application starting");

			// Log the Application build, OS version information etc.
			LoggingFields startupInformation = new LoggingFields();
			startupInformation.AddString("Timezone", TimeZoneSettings.CurrentTimeZoneDisplayName);
			startupInformation.AddString("OSVersion", Environment.OSVersion.VersionString);
			startupInformation.AddString("MachineName", Environment.MachineName);

			// This is from the application manifest
			Package package = Package.Current;
			PackageId packageId = package.Id;
			PackageVersion version = packageId.Version;
			startupInformation.AddString("ApplicationVersion", string.Format($"{version.Major}.{version.Minor}.{version.Build}.{version.Revision}"));

			try
			{
				// see if the configuration file is present if not copy minimal sample one from application directory
				if (localFolder.TryGetItemAsync(ConfigurationFilename).AsTask().Result == null)
				{
					StorageFile templateConfigurationfile = Package.Current.InstalledLocation.GetFileAsync(ConfigurationFilename).AsTask().Result;
					templateConfigurationfile.CopyAsync(localFolder, ConfigurationFilename).AsTask();

					this.logging.LogMessage("JSON configuration file missing, templated created", LoggingLevel.Warning);
					return;
				}

				IConfiguration configuration = new ConfigurationBuilder().AddJsonFile(Path.Combine(localFolder.Path, ConfigurationFilename), false, true).Build();

				azureIoTHubConnectionString = configuration.GetSection("AzureIoTHubConnectionString").Value;
				startupInformation.AddString("AzureIoTHubConnectionString", azureIoTHubConnectionString);

				transportType = (TransportType)Enum.Parse( typeof(TransportType), configuration.GetSection("TransportType").Value);
				startupInformation.AddString("TransportType", transportType.ToString());

				azureStorageimageFilenameLatestFormat = configuration.GetSection("AzureImageFilenameFormatLatest").Value;
				startupInformation.AddString("ImageFilenameLatestFormat", azureStorageimageFilenameLatestFormat);

				azureStorageImageFilenameHistoryFormat = configuration.GetSection("AzureImageFilenameFormatHistory").Value;
				startupInformation.AddString("ImageFilenameHistoryFormat", azureStorageImageFilenameHistoryFormat);

				imageUpdateDueSeconds = int.Parse(configuration.GetSection("ImageUpdateDueSeconds").Value);
				startupInformation.AddInt32("ImageUpdateDueSeconds", imageUpdateDueSeconds);

				imageUpdatePeriodSeconds = int.Parse(configuration.GetSection("ImageUpdatePeriodSeconds").Value);
				startupInformation.AddInt32("ImageUpdatePeriodSeconds", imageUpdatePeriodSeconds);
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("JSON configuration file load or settings retrieval failed " + ex.Message, LoggingLevel.Error);
				return;
			}

			try
			{
				azureIoTHubClient = DeviceClient.CreateFromConnectionString(azureIoTHubConnectionString, transportType);
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("AzureIOT Hub connection failed " + ex.Message, LoggingLevel.Error);
				return;
			}

			try
			{
				mediaCapture = new MediaCapture();
				mediaCapture.InitializeAsync().AsTask().Wait();
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("Camera configuration failed " + ex.Message, LoggingLevel.Error);
				return;
			}

			ImageUpdatetimer = new Timer(ImageUpdateTimerCallback, null, new TimeSpan(0, 0, imageUpdateDueSeconds), new TimeSpan(0, 0, imageUpdatePeriodSeconds));

			this.logging.LogEvent("Application started", startupInformation);

			//enable task to continue running in background
			backgroundTaskDeferral = taskInstance.GetDeferral();
		}

		private async void ImageUpdateTimerCallback(object state)
		{
			DateTime currentTime = DateTime.UtcNow;
			Debug.WriteLine($"{DateTime.UtcNow.ToLongTimeString()} Timer triggered");

			// Just incase - stop code being called while photo already in progress
			if (cameraBusy)
			{
				return;
			}
			cameraBusy = true;

			try
			{
				using (Windows.Storage.Streams.InMemoryRandomAccessStream captureStream = new Windows.Storage.Streams.InMemoryRandomAccessStream())
				{
					await mediaCapture.CapturePhotoToStreamAsync(ImageEncodingProperties.CreateJpeg(), captureStream);
					await captureStream.FlushAsync();
#if DEBUG
					IStorageFile photoFile = await KnownFolders.PicturesLibrary.CreateFileAsync(ImageFilenameLocal, CreationCollisionOption.ReplaceExisting);
					ImageEncodingProperties imageProperties = ImageEncodingProperties.CreateJpeg();
					await mediaCapture.CapturePhotoToStorageFileAsync(imageProperties, photoFile);
#endif

					string azureFilenameLatest = string.Format(azureStorageimageFilenameLatestFormat, currentTime);
					string azureFilenameHistory = string.Format(azureStorageImageFilenameHistoryFormat, currentTime);

					LoggingFields imageInformation = new LoggingFields();
					imageInformation.AddDateTime("TakenAtUTC", currentTime);
#if DEBUG
					imageInformation.AddString("LocalFilename", photoFile.Path);
#endif
					imageInformation.AddString("AzureFilenameLatest", azureFilenameLatest);
					imageInformation.AddString("AzureFilenameHistory", azureFilenameHistory);
					this.logging.LogEvent("Saving image(s) to Azure storage", imageInformation);

					// Update the latest image in storage
					if (!string.IsNullOrWhiteSpace(azureFilenameLatest))
					{
						captureStream.Seek(0);
						Debug.WriteLine("AzureIoT Hub latest image upload start");
						await azureIoTHubClient.UploadToBlobAsync(azureFilenameLatest, captureStream.AsStreamForRead());
						Debug.WriteLine("AzureIoT Hub latest image upload done");
					}

					// Upload the historic image to storage
					if (!string.IsNullOrWhiteSpace(azureFilenameHistory))
					{
						captureStream.Seek(0);
						Debug.WriteLine("AzureIoT Hub historic image upload start");
						await azureIoTHubClient.UploadToBlobAsync(azureFilenameHistory, captureStream.AsStreamForRead());
						Debug.WriteLine("AzureIoT Hub historic image upload done");
					}
				}
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("Camera photo save or AzureIoTHub storage upload failed " + ex.Message, LoggingLevel.Error);
			}
			finally
			{
				cameraBusy = false;
			}
		}
	}
}

The images in Azure Storage could then be assembled into a video using a tool like Time Lapse Creator or processed with Azure Custom Vision Service.

Windows 10 IoT Core triggered image upload to Azure Blob storage revisited

After getting web camera images reliably uploading to Azure Storage I trialed the application and added some functionality to make it easier to use.

PIR Sensor trigger

For my test harness (in addition to a RaspberryPI & generic USB Web camera) I’m using some Seeedstudio Grove devices

  • Grove Base Hat for Raspberry PI USD9.90
  • Grove – PIR Motion Sensor USD7.90

I found that the application was taking too many photos, plus the way it was storing them in Azure storage was awkward and creating to many BlobTrigger events.

I split the Azure blob storage configuration settings into latest and historic images. This meant the trigger for the image emailer could be more selective.

public static class ImageEmailer
{
	[FunctionName("ImageEmailer")]
	public async static Task Run(
			[BlobTrigger("current/{name}")]
			Stream inputBlob,
			string name,
			[SendGrid(ApiKey = "")]
			IAsyncCollector<SendGridMessage> messageCollector,
			TraceWriter log)
	{
		log.Info($"C# Blob trigger function Processed blob Name:{name} Size: {inputBlob.Length} Bytes");

I also found that the positioning of the PIR sensor in relation to the camera field of view was important and required a bit of trial and error.

In this sample configuration the stored images are split into two containers one with the latest image for each device, the other container had a series of folders for each device which contained a historic timestamped pictures

Latest image for each device
Historic images for a device

I also added configuration settings for the digital input edge (RisingEdge vs. FallingEdge) which triggered the taking of a photo (the output of one my sensors went low when it detected motion). I also added the device MAC address as a parameter for the format configuration options as I had a couple of cloned devices with the same network name (on different physical networks) which where difficult to distinguish.

  • {0} machine name
  • {1} Device MAC Address
  • {2} UTC request timestamp
{
  "AzureStorageConnectionString": "",
  "InterruptPinNumber": 5,
  "interruptTriggerOn": "RisingEdge",
  "AzureContainerNameFormatLatest": "Current",
  "AzureImageFilenameFormatLatest": "{0}.jpg",
  "AzureContainerNameFormatHistory": "Historic",
  "AzureImageFilenameFormatHistory": "{0}/{1:yyMMddHHmmss}.jpg",
  "DebounceTimeout": "00:00:30"
}

I also force azure storage file configuration to lower case to stop failures, but I have not validated the strings for other invalid characters and formatting issues.

/*
    Copyright ® 2019 March devMobile Software, All Rights Reserved

    MIT License
 ...
*/
namespace devMobile.Windows10IotCore.IoT.PhotoTimerInputTriggerAzureStorage
{
	using System;
	using System.IO;
	using System.Diagnostics;
	using System.Linq;
	using System.Net.NetworkInformation;
	using System.Threading;

	using Microsoft.Extensions.Configuration;
	using Microsoft.WindowsAzure.Storage;
	using Microsoft.WindowsAzure.Storage.Blob;

	using Windows.ApplicationModel;
	using Windows.ApplicationModel.Background;
	using Windows.Foundation.Diagnostics;
	using Windows.Media.Capture;
	using Windows.Media.MediaProperties;
	using Windows.Storage;
	using Windows.System;

	public sealed class StartupTask : IBackgroundTask
	{
		private BackgroundTaskDeferral backgroundTaskDeferral = null;
		private readonly LoggingChannel logging = new LoggingChannel("devMobile Photo Timer Trigger Azure Storage demo", null, new Guid("4bd2826e-54a1-4ba9-bf63-92b73ea1ac4a"));
		private const string ConfigurationFilename = "appsettings.json";
		private Timer ImageUpdatetimer;
		private MediaCapture mediaCapture;
		private string deviceMacAddress;
		private string azureStorageConnectionString;
		private string azureStorageContainerNameLatestFormat;
		private string azureStorageimageFilenameLatestFormat;
		private string azureStorageContainerNameHistoryFormat;
		private string azureStorageImageFilenameHistoryFormat;
		private const string ImageFilenameLocal = "latest.jpg";
		private volatile bool cameraBusy = false;

		public void Run(IBackgroundTaskInstance taskInstance)
		{
			StorageFolder localFolder = ApplicationData.Current.LocalFolder;
			int imageUpdateDueSeconds;
			int imageUpdatePeriodSeconds;

			this.logging.LogEvent("Application starting");

			// Log the Application build, shield information etc.
			LoggingFields startupInformation = new LoggingFields();
			startupInformation.AddString("Timezone", TimeZoneSettings.CurrentTimeZoneDisplayName);
			startupInformation.AddString("OSVersion", Environment.OSVersion.VersionString);
			startupInformation.AddString("MachineName", Environment.MachineName);

			// This is from the application manifest
			Package package = Package.Current;
			PackageId packageId = package.Id;
			PackageVersion version = packageId.Version;
			startupInformation.AddString("ApplicationVersion", string.Format($"{version.Major}.{version.Minor}.{version.Build}.{version.Revision}"));

			// ethernet mac address
			deviceMacAddress = NetworkInterface.GetAllNetworkInterfaces()
				 .Where(i => i.NetworkInterfaceType.ToString().ToLower().Contains("ethernet"))
				 .FirstOrDefault()
				 ?.GetPhysicalAddress().ToString();

			// remove unsupported charachers from MacAddress
			deviceMacAddress = deviceMacAddress.Replace("-", "").Replace(" ", "").Replace(":", "");
			startupInformation.AddString("MacAddress", deviceMacAddress);

			try
			{
				// see if the configuration file is present if not copy minimal sample one from application directory
				if (localFolder.TryGetItemAsync(ConfigurationFilename).AsTask().Result == null)
				{
					StorageFile templateConfigurationfile = Package.Current.InstalledLocation.GetFileAsync(ConfigurationFilename).AsTask().Result;
					templateConfigurationfile.CopyAsync(localFolder, ConfigurationFilename).AsTask();
					this.logging.LogMessage("JSON configuration file missing, templated created", LoggingLevel.Warning);
					return;
				}

				IConfiguration configuration = new ConfigurationBuilder().AddJsonFile(Path.Combine(localFolder.Path, ConfigurationFilename), false, true).Build();

				azureStorageConnectionString = configuration.GetSection("AzureStorageConnectionString").Value;
				startupInformation.AddString("AzureStorageConnectionString", azureStorageConnectionString);

				azureStorageContainerNameLatestFormat = configuration.GetSection("AzureContainerNameFormatLatest").Value;
				startupInformation.AddString("ContainerNameLatestFormat", azureStorageContainerNameLatestFormat);

				azureStorageimageFilenameLatestFormat = configuration.GetSection("AzureImageFilenameFormatLatest").Value;
				startupInformation.AddString("ImageFilenameLatestFormat", azureStorageimageFilenameLatestFormat);

				azureStorageContainerNameHistoryFormat = configuration.GetSection("AzureContainerNameFormatHistory").Value;
				startupInformation.AddString("ContainerNameHistoryFormat", azureStorageContainerNameHistoryFormat);

				azureStorageImageFilenameHistoryFormat = configuration.GetSection("AzureImageFilenameFormatHistory").Value;
				startupInformation.AddString("ImageFilenameHistoryFormat", azureStorageImageFilenameHistoryFormat);

				imageUpdateDueSeconds = int.Parse(configuration.GetSection("ImageUpdateDueSeconds").Value);
				startupInformation.AddInt32("ImageUpdateDueSeconds", imageUpdateDueSeconds);

				imageUpdatePeriodSeconds = int.Parse(configuration.GetSection("ImageUpdatePeriodSeconds").Value);
				startupInformation.AddInt32("ImageUpdatePeriodSeconds", imageUpdatePeriodSeconds);
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("JSON configuration file load or settings retrieval failed " + ex.Message, LoggingLevel.Error);
				return;
			}

			try
			{
				mediaCapture = new MediaCapture();
				mediaCapture.InitializeAsync().AsTask().Wait();
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("Camera configuration failed " + ex.Message, LoggingLevel.Error);
				return;
			}

			ImageUpdatetimer = new Timer(ImageUpdateTimerCallback, null, new TimeSpan(0,0, imageUpdateDueSeconds), new TimeSpan(0, 0, imageUpdatePeriodSeconds));

			this.logging.LogEvent("Application started", startupInformation);

			//enable task to continue running in background
			backgroundTaskDeferral = taskInstance.GetDeferral();
		}

		private async void ImageUpdateTimerCallback(object state)
		{
			DateTime currentTime = DateTime.UtcNow;
			Debug.WriteLine($"{DateTime.UtcNow.ToLongTimeString()} Timer triggered");

			// Just incase - stop code being called while photo already in progress
			if (cameraBusy)
			{
				return;
			}
			cameraBusy = true;

			try
			{
				StorageFile photoFile = await KnownFolders.PicturesLibrary.CreateFileAsync(ImageFilenameLocal, CreationCollisionOption.ReplaceExisting);
				ImageEncodingProperties imageProperties = ImageEncodingProperties.CreateJpeg();
				await mediaCapture.CapturePhotoToStorageFileAsync(imageProperties, photoFile);

				string azureContainernameLatest = string.Format(azureStorageContainerNameLatestFormat, Environment.MachineName, deviceMacAddress, currentTime).ToLower();
				string azureFilenameLatest = string.Format(azureStorageimageFilenameLatestFormat, Environment.MachineName, deviceMacAddress, currentTime);
				string azureContainerNameHistory = string.Format(azureStorageContainerNameHistoryFormat, Environment.MachineName, deviceMacAddress, currentTime).ToLower();
				string azureFilenameHistory = string.Format(azureStorageImageFilenameHistoryFormat, Environment.MachineName.ToLower(), deviceMacAddress, currentTime);

				LoggingFields imageInformation = new LoggingFields();
				imageInformation.AddDateTime("TakenAtUTC", currentTime);
				imageInformation.AddString("LocalFilename", photoFile.Path);
				imageInformation.AddString("AzureContainerNameLatest", azureContainernameLatest);
				imageInformation.AddString("AzureFilenameLatest", azureFilenameLatest);
				imageInformation.AddString("AzureContainerNameHistory", azureContainerNameHistory);
				imageInformation.AddString("AzureFilenameHistory", azureFilenameHistory);
				this.logging.LogEvent("Saving image(s) to Azure storage", imageInformation);

				CloudStorageAccount storageAccount = CloudStorageAccount.Parse(azureStorageConnectionString);
				CloudBlobClient blobClient = storageAccount.CreateCloudBlobClient();

				// Update the latest image in storage
				if (!string.IsNullOrWhiteSpace(azureContainernameLatest) && !string.IsNullOrWhiteSpace(azureFilenameLatest))
				{
					CloudBlobContainer containerLatest = blobClient.GetContainerReference(azureContainernameLatest);
					await containerLatest.CreateIfNotExistsAsync();

					CloudBlockBlob blockBlobLatest = containerLatest.GetBlockBlobReference(azureFilenameLatest);
					await blockBlobLatest.UploadFromFileAsync(photoFile);

					this.logging.LogEvent("Image latest saved to Azure storage");
				}

				// Upload the historic image to storage
				if (!string.IsNullOrWhiteSpace(azureContainerNameHistory) && !string.IsNullOrWhiteSpace(azureFilenameHistory))
				{
					CloudBlobContainer containerHistory = blobClient.GetContainerReference(azureContainerNameHistory);
					await containerHistory.CreateIfNotExistsAsync();

					CloudBlockBlob blockBlob = containerHistory.GetBlockBlobReference(azureFilenameHistory);
					await blockBlob.UploadFromFileAsync(photoFile);

					this.logging.LogEvent("Image historic saved to Azure storage");
				}
			}
			catch (Exception ex)
			{
				this.logging.LogMessage("Camera photo save or upload failed " + ex.Message, LoggingLevel.Error);
			}
			finally
			{
				cameraBusy = false;
			}
		}
	}
}

The code is still pretty short at roughly 200 lines and is all available on GitHub.
