As part of this series of samples comparing Arduino to nanoFramework to .NET IoT Device “Proof of Concept (PoC) applications, several posts use a SenseCAP CO2, Temperature and Humidity Sensor SKU101991029.
I cut up a spare Industrial IP68 Modbus RS485 1-to-4 Splitter/Hub to connect the sensor to the breakout board. This sensor has an operating voltage of 5V ~ 24V so it can be powered by the 5V output of a RS485 Breakout Board for Seeed Studio XIAO (SKU 113991354)
The red wire is for powering the sensor with a 12V power supply so was tied back so it didn’t touch any of the other electronics.
#include <HardwareSerial.h>
#include <ModbusMaster.h>
HardwareSerial RS485Serial(1);
ModbusMaster node;
// -----------------------------
// RS485 Pin Assignments (Corrected)
// -----------------------------
const int RS485_RX = 6; // UART1 RX
const int RS485_TX = 5; // UART1 TX
const int RS485_EN = D2;
// Sensor/Modbus parameters (from datasheet)
#define MODBUS_SLAVE_ID 0x2D
#define REG_CO2 0x0000
#define REG_TEMPERATURE 0x0001
#define REG_HUMIDITY 0x0002
#define REG_WARMUP_TIME 0x0021
uint32_t warmUp_Completed;
// Forward declarations for ModbusMaster callbacks
void preTransmission();
void postTransmission();
void setup() {
Serial.begin(9600);
delay(5000);
Serial.println("ModbusMaster: Seeed SKU101991029 starting");
// Wait for the hardware serial to be ready
while (!Serial)
;
Serial.println("Serial done");
pinMode(RS485_EN, OUTPUT);
digitalWrite(RS485_EN, LOW); // Start in RX mode
// Datasheet: 9600 baud, 8N1
RS485Serial.begin(9600, SERIAL_8N1, RS485_RX, RS485_TX);
while (!RS485Serial)
;
Serial.println("RS485 done");
// Tie ModbusMaster to the UART we just configured
node.begin(MODBUS_SLAVE_ID, RS485Serial);
// Register callbacks for half-duplex direction control
node.preTransmission(preTransmission);
node.postTransmission(postTransmission);
// --- Read Startup time ---
uint8_t result = node.readHoldingRegisters(REG_WARMUP_TIME, 1);
if (result == node.ku8MBSuccess) {
uint16_t warmUpTime = node.getResponseBuffer(0);
warmUpTime += 3;
Serial.printf("Start up time: %u sec\n", warmUpTime);
warmUp_Completed = millis() + (warmUpTime * 1000);
} else {
Serial.printf("Read REG_WARMUP_TIME failed (err=%u)\n", result);
}
}
// Toggle DE/RE around TX per ModbusMaster design
void preTransmission() {
digitalWrite(RS485_EN, HIGH); // enable driver (TX)
delayMicroseconds(250); // transceiver turn-around margin
}
void postTransmission() {
delayMicroseconds(250); // ensure last bit left the wire
digitalWrite(RS485_EN, LOW); // back to receive
}
void loop() {
float temperature;
uint16_t humidity;
uint16_t co2;
uint8_t result = node.readInputRegisters(0x0000, 3);
if (result == node.ku8MBSuccess) {
// --- Read Temperature ---
uint16_t rawTemperature = node.getResponseBuffer(REG_TEMPERATURE);
temperature = (int16_t)rawTemperature / 100.0;
// --- Read Humidity ---
humidity = node.getResponseBuffer(REG_HUMIDITY);
humidity = humidity / 100;
if (warmUp_Completed <= millis()) {
// --- Read CO2 ---
co2 = node.getResponseBuffer(REG_CO2);
Serial.printf("Temperature: %.1f °C Humidity: %u %%RH CO2: %u ppm\n", temperature, humidity, co2);
}
else {
Serial.printf("Temperature: %.1f °C Humidity: %u %%RH\n", temperature, humidity);
}
}
else
{
Serial.printf("Modbus error: %d\n", result);
}
delay(60000);
}

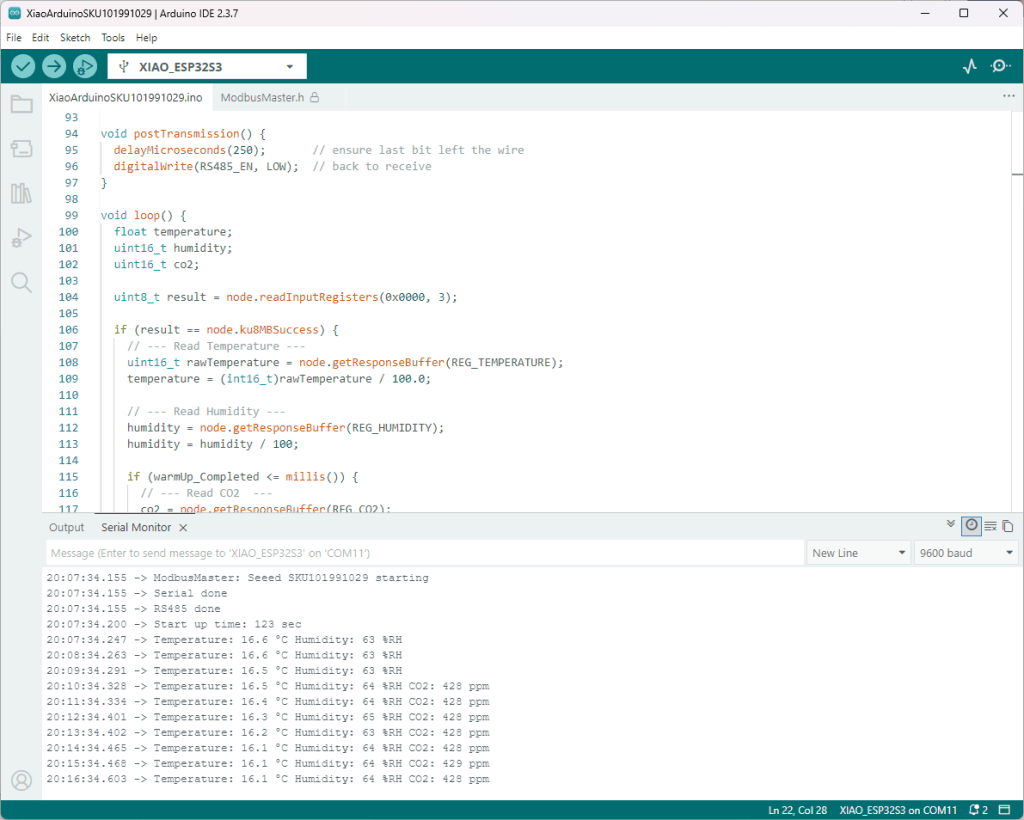

The Arduino ModbusMaster based application worked first time but implementing the CO2 Sensor warm-up time took a couple of attempts.
I did consider trying to fit the Seeed Studio XIAO ESP32-S3 inside the SenseCAP CO2, Temperature and Humidity Sensor but the electronics had been sprayed with a corrosion resistant coating.
Connecting directly (rather than via a breakout board) the VCC+, VCC-, universal asynchronous receiver-transmitter(UART) and transmit enable would have been difficult.
